Short Description:

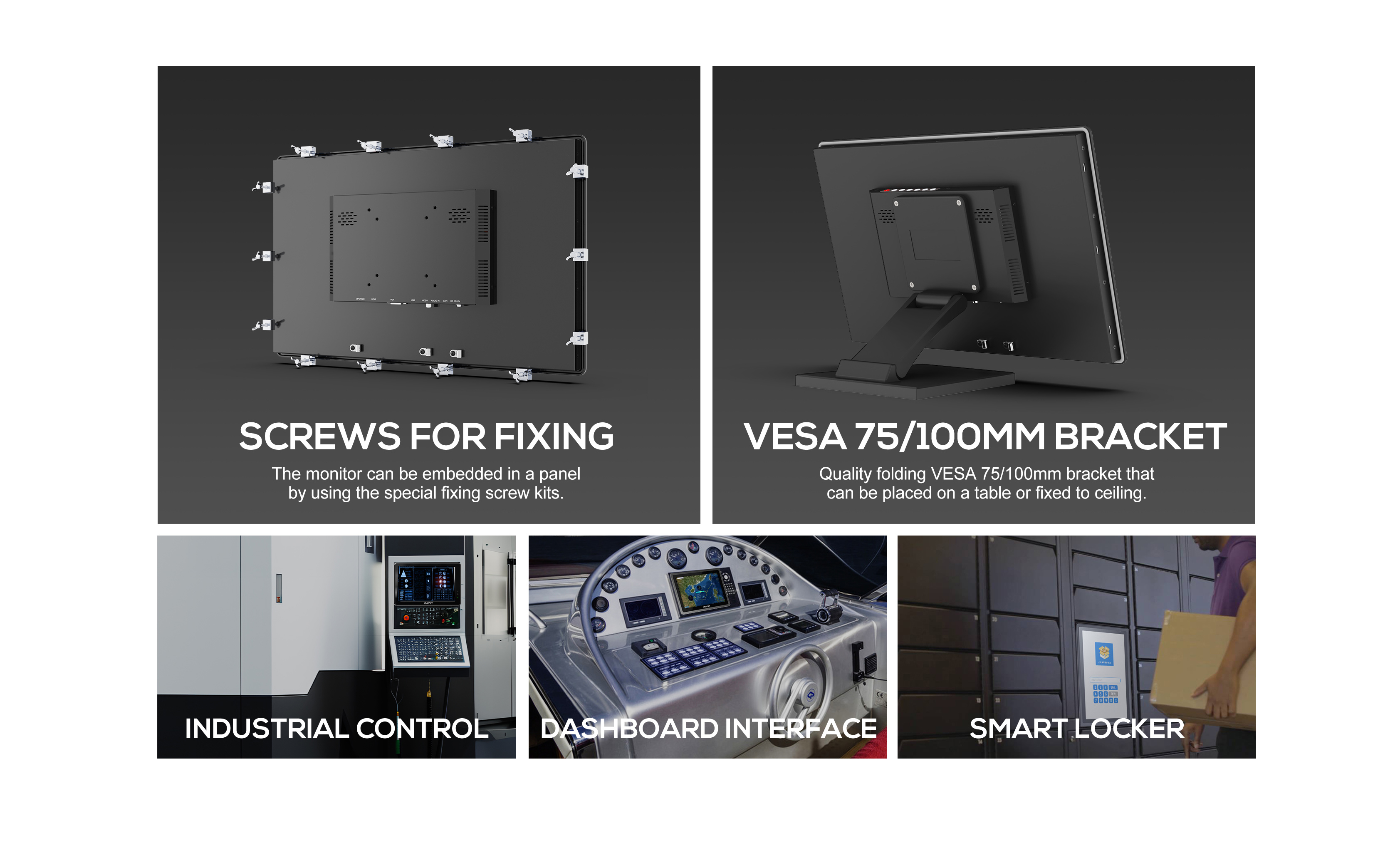

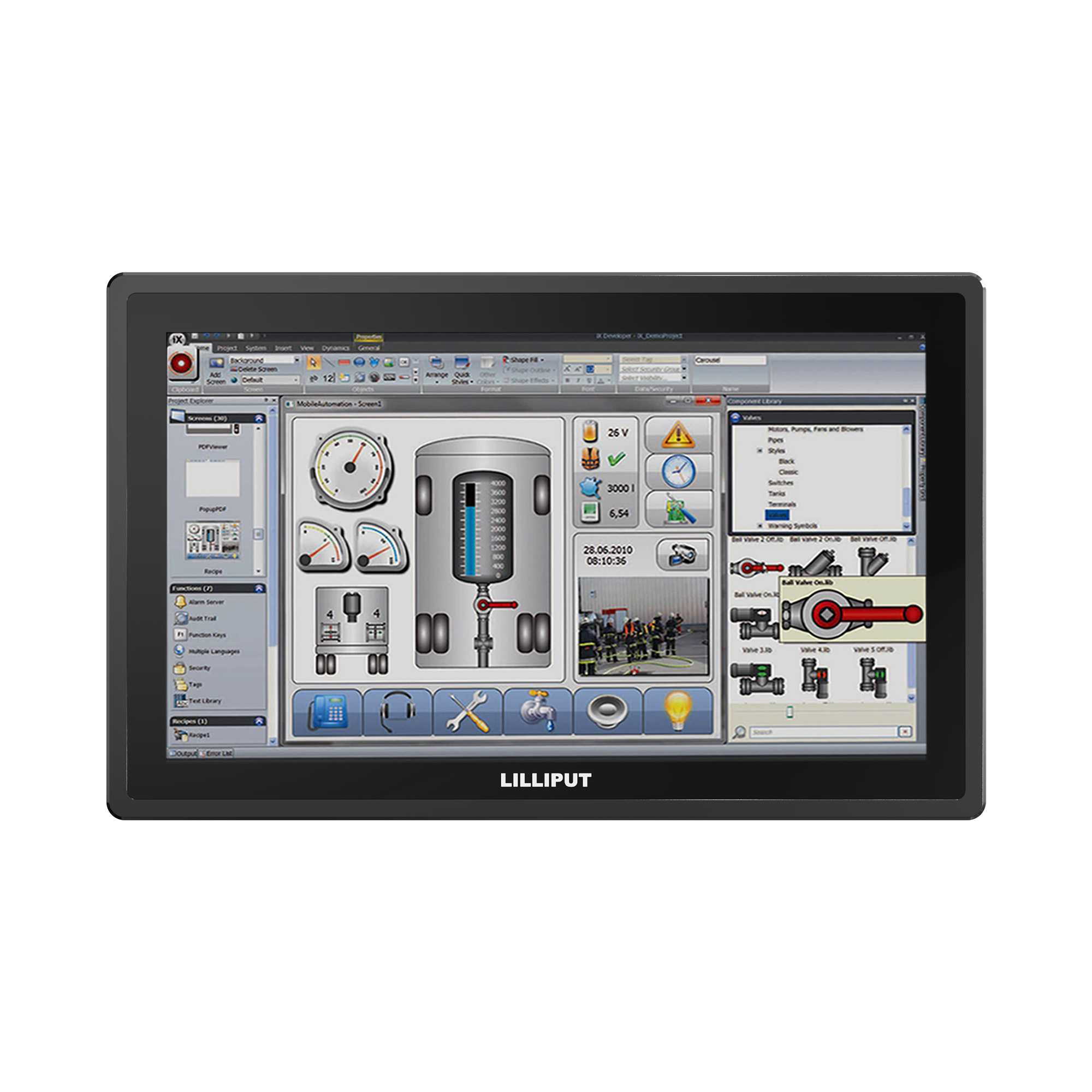

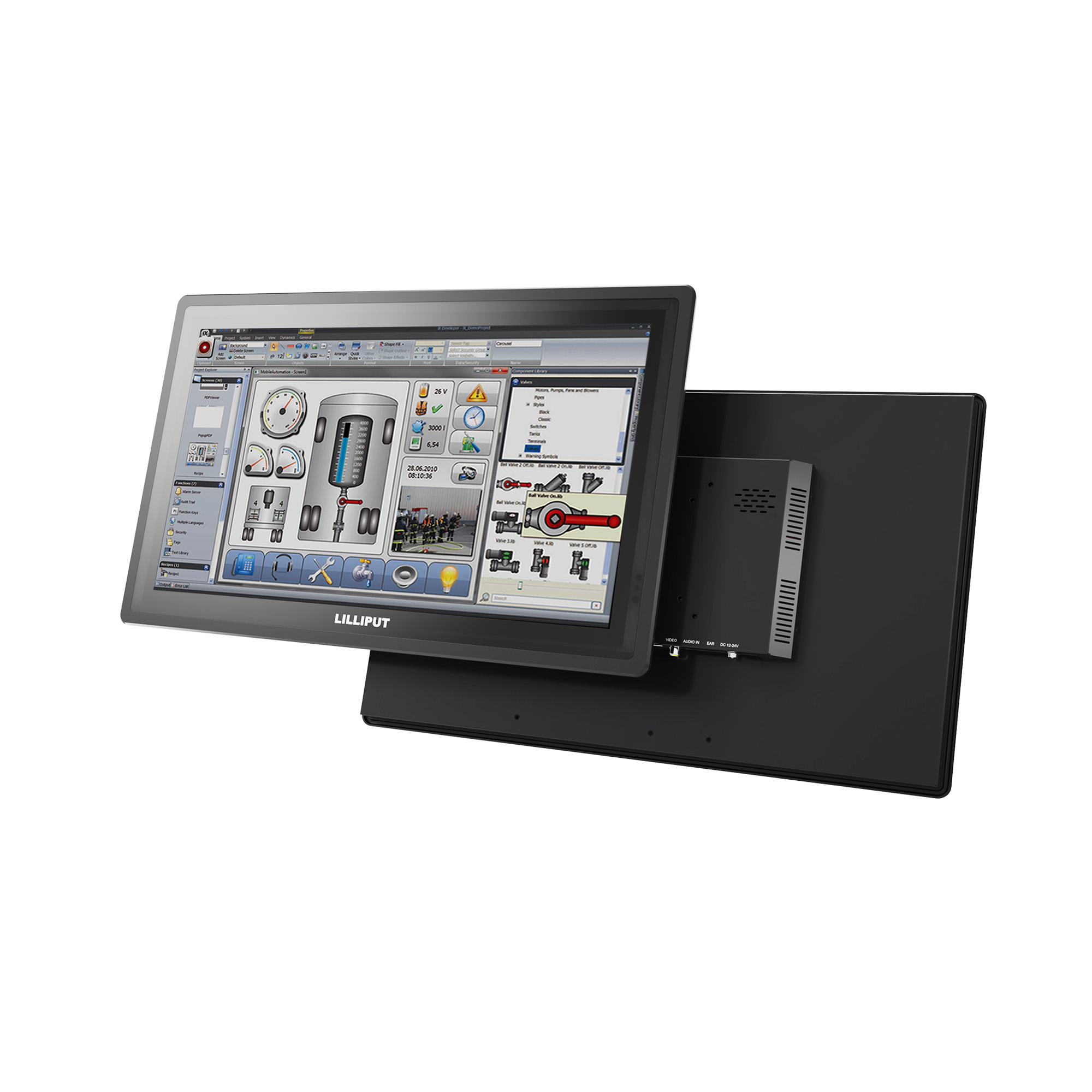

This 18.5″ monitor combines a 10-point capacitive touch screen with a 1000-nit high-brightness panel. Featuring versatile interfaces like HDMI, VGA, and USB-C, it also supports customizable configurations. The IP65-rated front panel ensures durability and flexibility. It supports both horizontal and vertical installations, making it suitable for various application scenarios.


  • Model No. : TK1850/C & TK1850/T
  • Touch panel: 10-point PCAP (optional)
  • Display: 18.5 inch, 1920×1080, 1000 nits
  • Interfaces: HDMI, VGA, AV, USB-A
  • Audio In/Out: Speaker, HDMI, Ear Jack
  • Feature: 1000nits Brightness, 10-points PCAP, 7H Hradness Screen, IK07 & IP65/NEMA4 Front Panel, Metal Housing, Auto Dimming
    • Download as PDF User guide

    Product Detail

    Specifications

    Accessories

    1
    2

    Touch monitor features with 1000 nits high brightness for outdoor sunlight readable.

    3

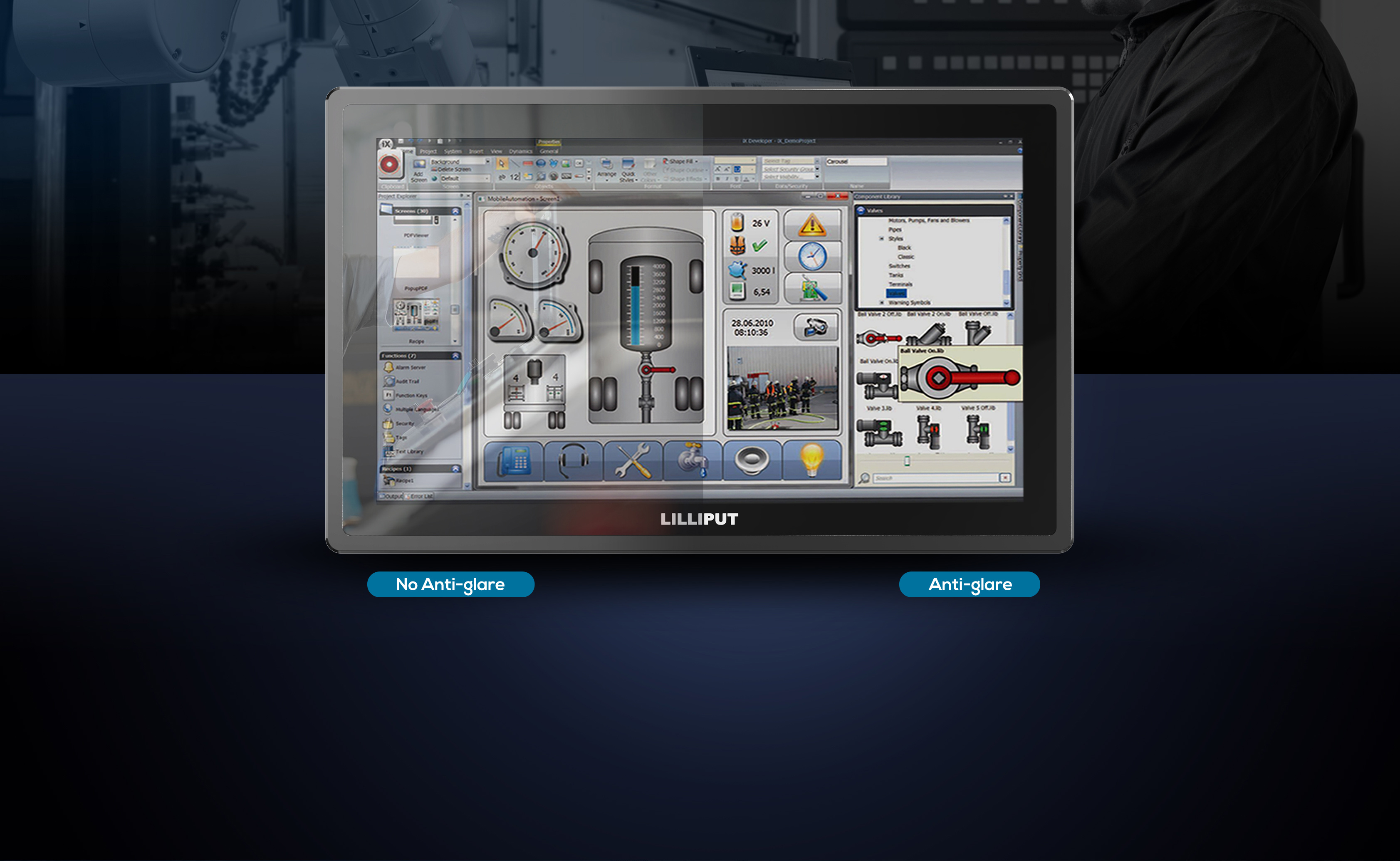

    ANTI-GLARE

    SCREEN WITH ANTI-GLARE COATING

    The optical bonding process can remove the air layer between the LCD panel and the glass, ensuring that foreign objects such as dust and moisture will not damage the LCD panel. Anti-glare screen can reduce reflective glare in the environment.

    4
    5

    IP65 / NEMA 4

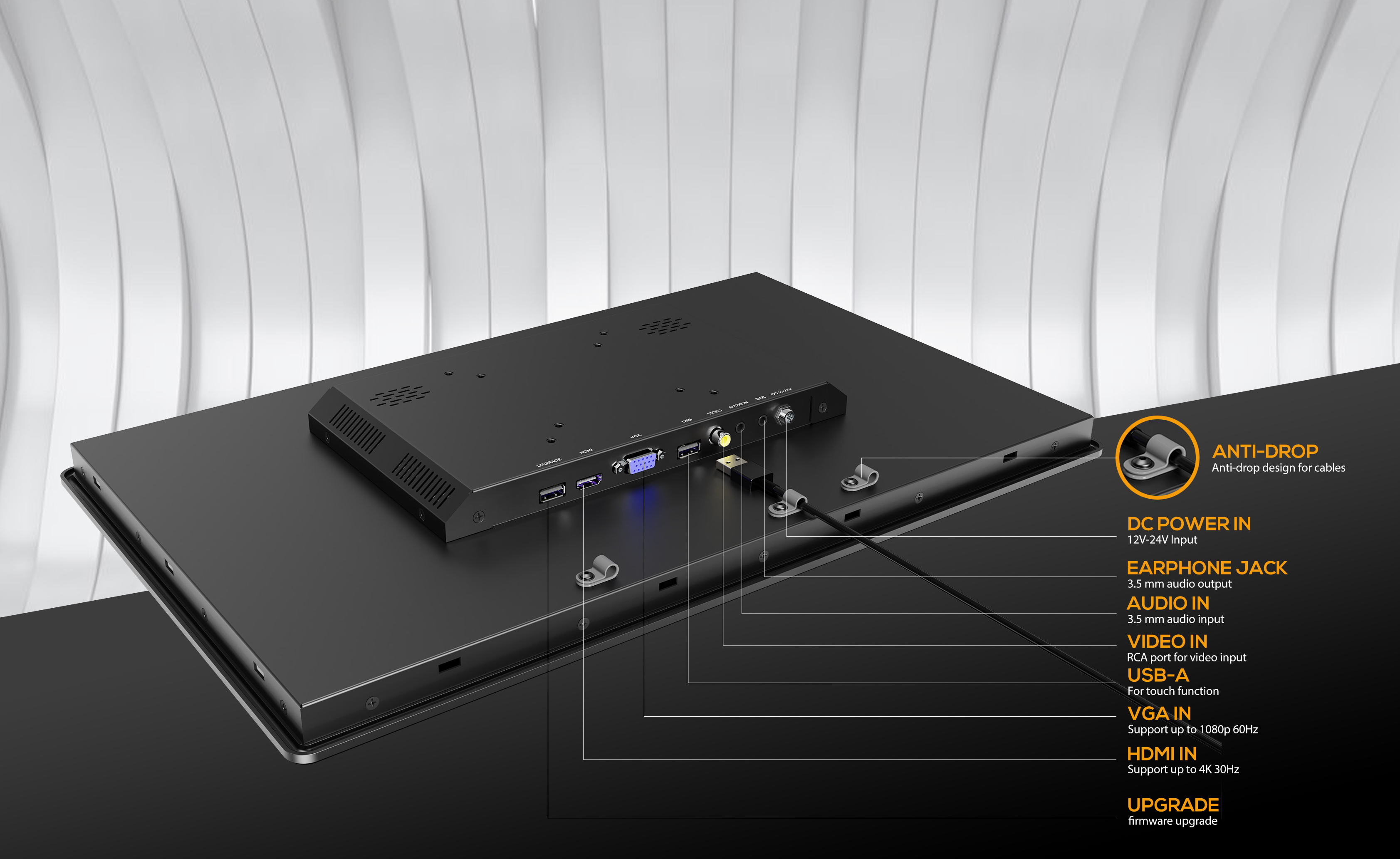

    RICH INTERINTERFACES

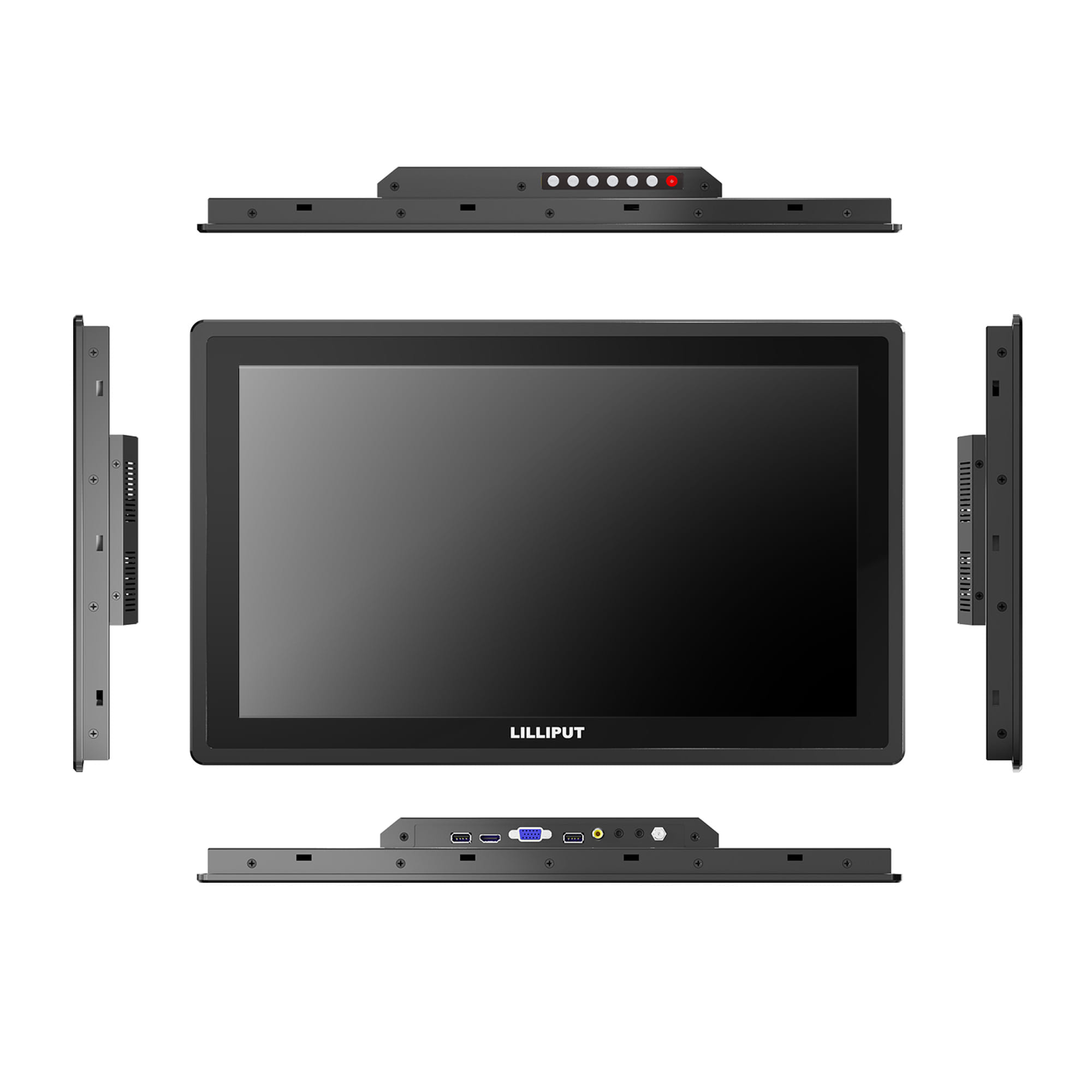

    The monitor has a rich interfaces, including HDMI, VGA and AV interfaces that can transmit FHD video USB ports support touch function and upgrade.

    6

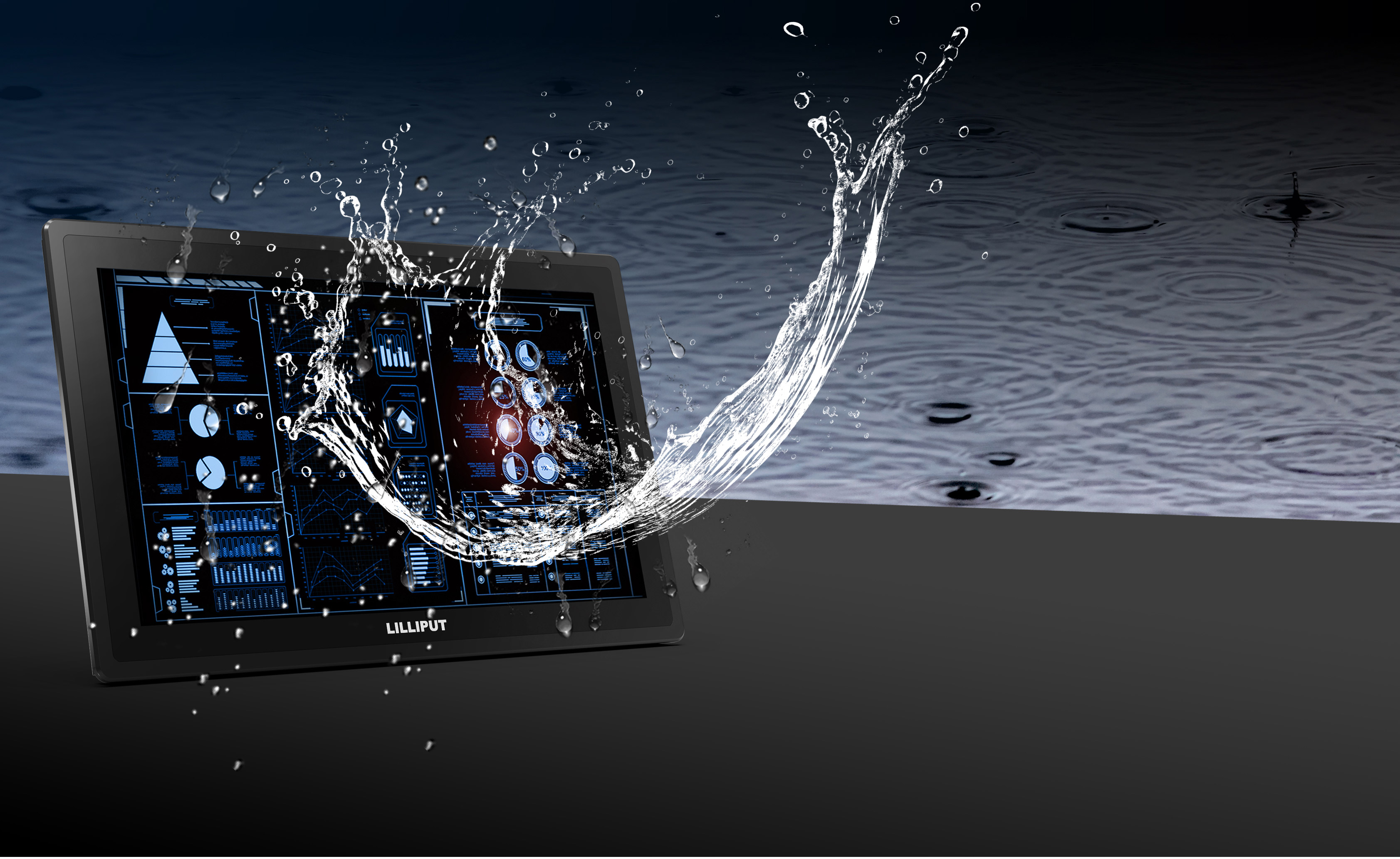

    IP65 / NEMA 4

    FOR FORONT PANEL

    Front panel of the monitor is designed to carry IP65 rating and NEMA 4 degree of protection which offer complete protection against particles, and a good level of protection against water projected by nozzle against monitor from any direction.

  • Previous:
  • Next:
    • MODEL NO. TK1850/C TK1850/T
    DISPLAY Touch Screen Non-touch 10-point PCAP
    Panel 18.5” LCD
    Physical Resolution 1920×1080
    Brightness 1000 nits
    Aspect Ratio 16:9
    Contrast 1000:1
    Viewing Angle 170° / 170° (H/V)
    Coating Anti-glare, anti-fingerpint

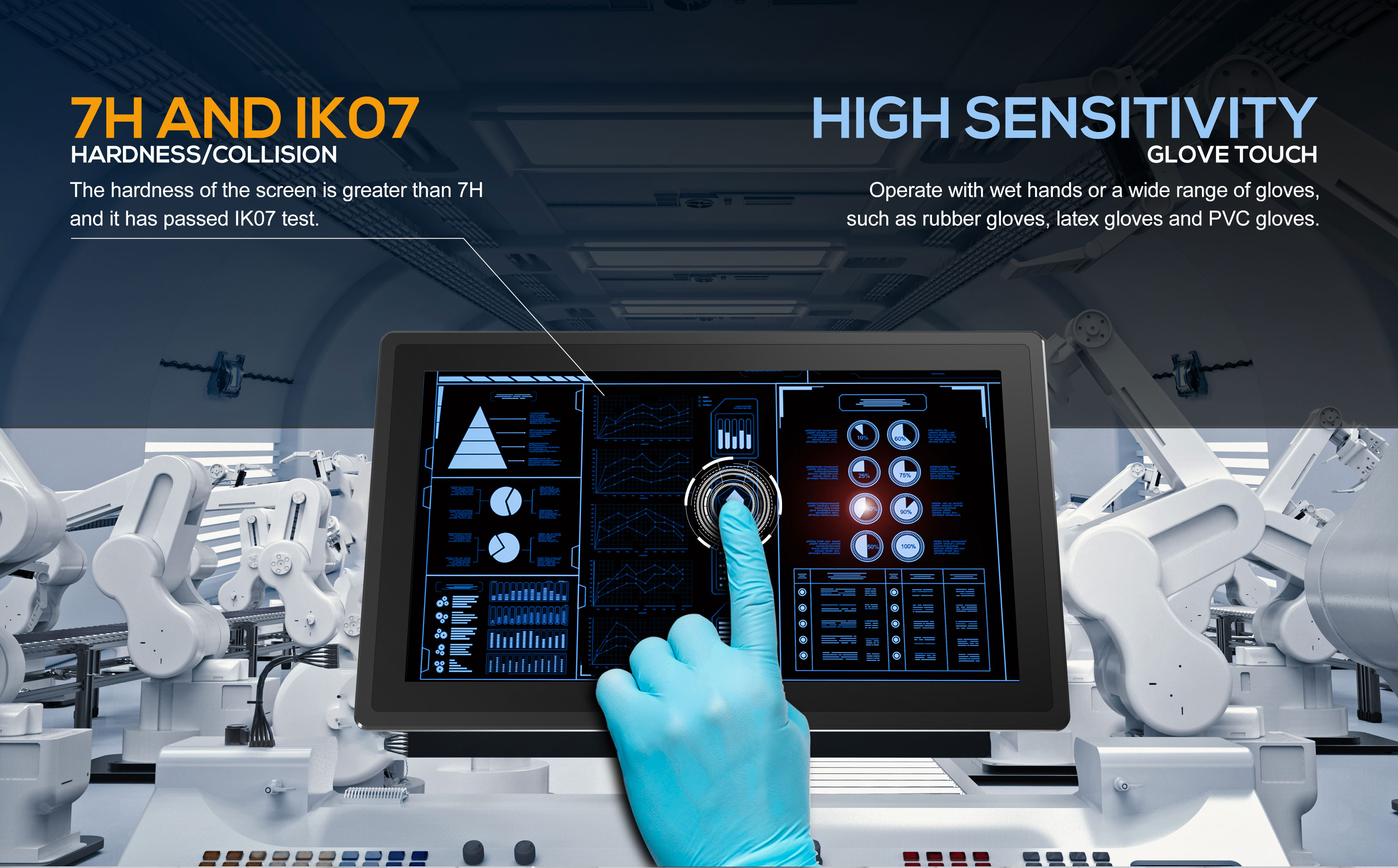

    Hardness/ Collosion Hardness ≥7H (ASTM D3363), Collision ≥IK07 (IEC6262 / EN62262)
    INPUT HDMI 1
    VGA 1
    Video & Audio 1
    USB 1×USB-A (For touch and upgrade)
    SUPPORTED
    FORMATS    		 HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    Video & Audio 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT Speaker 2
    HDMI 2ch
    Ear Jack 3.5mm – 2ch 48kHz 24-bit
    POWER Input Voltage DC 12-24V
    Power Consumption ≤32W (15V)
    ENVIRONMENT IP Rating Front panel IP65 (IEC60529), Front NEMA 4
    Vibration 1.5Grms, 5~500Hz, 1 hr/axis (IEC6068-2-64)
    Shock 10G, half-sine wave, last 11 ms (IEC6068-2-27)
    Operating Temperature -10°C~60°C
    Storage Temperature -20°C~60°C
    DIMENSION Dimension(LWD) 475mm × 296mm × 45.7mm
    Weight 4.6kg
