Rugged industrial design with IP64 rating Powerful Freescale iMX.6 Quad core 1GHz solution
9.7" 1024x768 IPS screen capacitive touch Built-in 7.4V 5000mAh battery

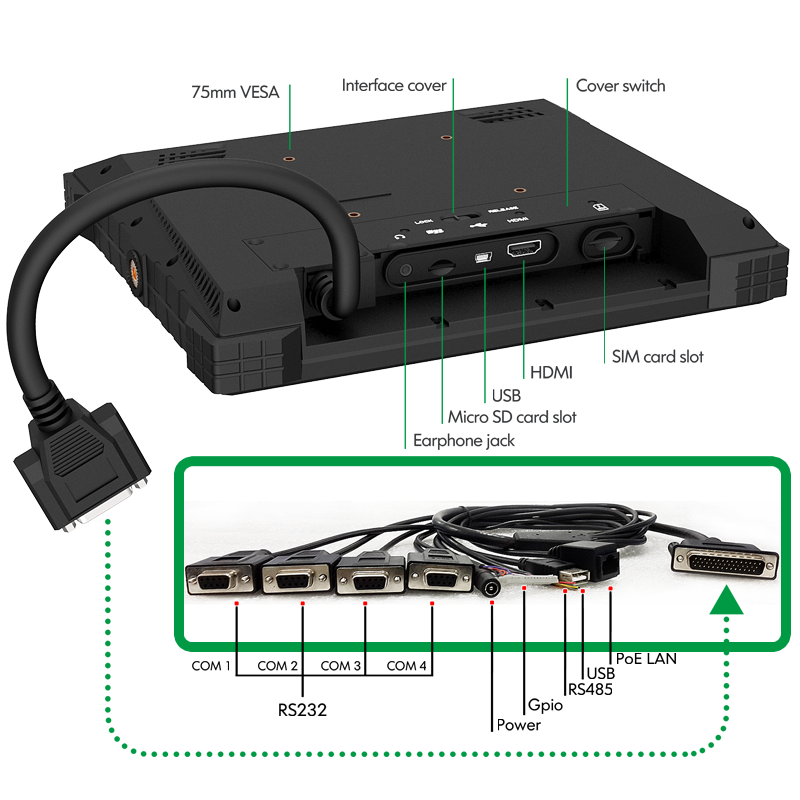

Rich extensions: RS232, RS485, RS422, Gpio, CAN bus, LAN Gravity sensor, OTG, TF & USB
PoE(Power over Ethernet) Gbite Ethernet 2G/3G/4G/Wi-Fi/Bluetooth/GPS/camera
It features customized ABS material accompanying 4-corner rubber mat and IP64 rating, which offer a 360° protection to prevent from shock, dust and water; All interfaces are equiped with protective components to cope with complex industrial environment.
Rich resource working with Android, Windows CE or Linux OS to apply in different fields, eg. Fleet management, large warehouse management, agriculture & construction vehicle, manufacturing, retail, portable medical device, Human-machine interface, intelligent industrial control system, electric power industry, catering and entertainment, port terminal, container freight, etc.
Display | |
Model NO. | PC-9715 |
Touch Panel | Capacitive |
Display | 9.7″ |
Resolution | 1024*768 |
Aspect Ratio | 4:3 |
Brightness | 350cd/m2 |
Contrast | 900:1 |
Viewing Angle | 178/178 (H/V) |
Power / Other | |
Power Supply | DC 10-36V |
Battery | Bulit-in 5000mAh |
Dimension | 252X211X37MM |
Weight | 1340g |
System | |
CPU | Freescale I.MX 6Quad core 1.0MHz |
RAM | 1G DDR3 |
ROM | 8G Flash |
GPU | 3D 1000Mpx/s OpenGL ES3.0 |
OS | Android/Linux Debian/WinCE |
Interface | |
SIM | SIM Slot |
HDMI | HDMI output |
TF | Micro SD Card Slot |
USB | USB Device 2.0,USB host 2.0×2 |
Ear Jack | Earphone Jack |
DC Power | DC Power Input |
RS232 | x4 |
RS422 | Optional |
RS485 | Optional |
LAN | 1000M Lan Ethernet |
GPIO | Input x 4 ,output x 6 |
Functions | |
CAN | Standard |
3G/4G | Optional |
WIFI | Optional |
Bluetooth | Optional |
Camera | Optional |
GPS | Optional |
ACC | Optional |
POE | Optional |
