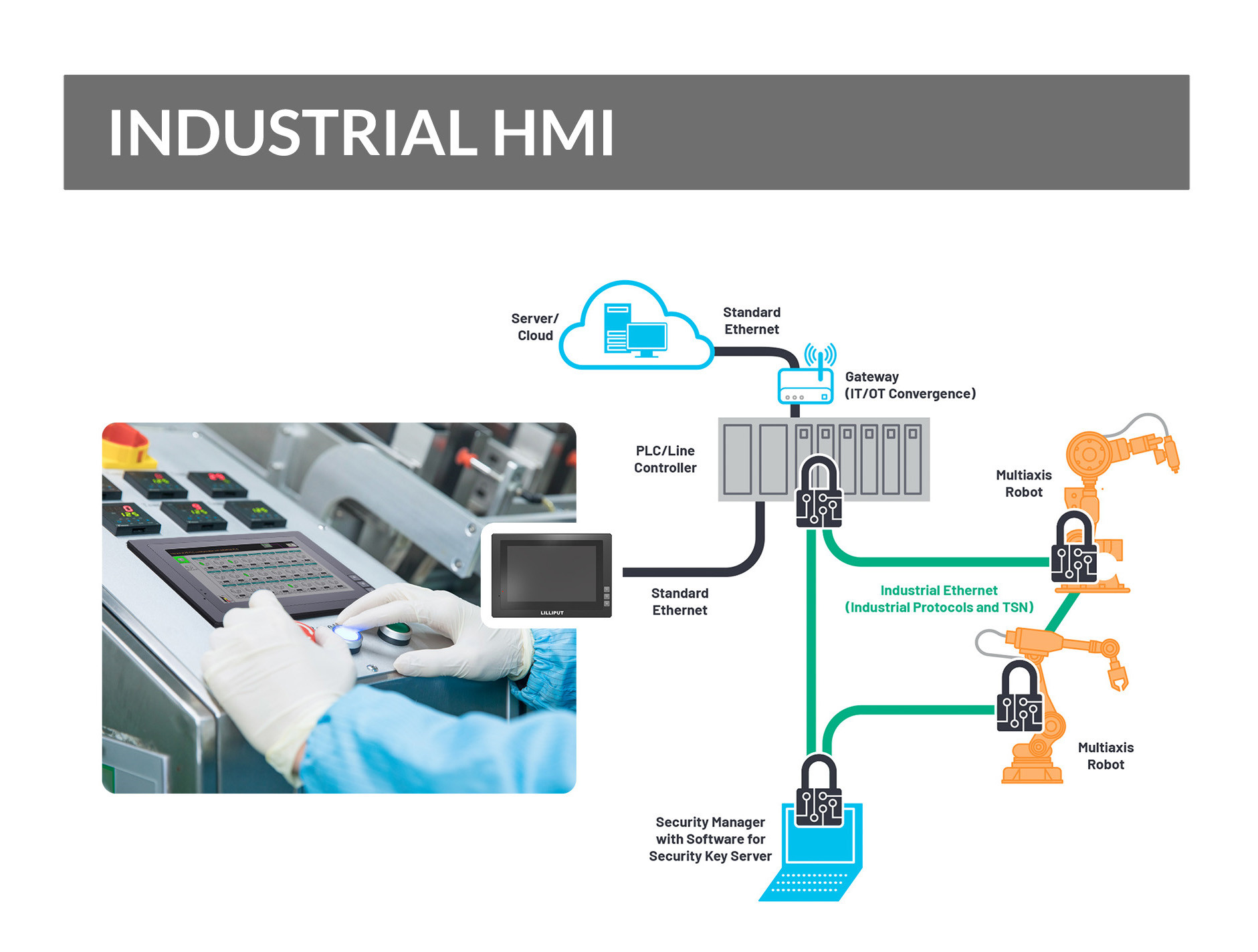

HMI Applications
Due to increasingly developed world of industrial automation, HMIs are used in a wide range of
applications. As the controlling and monitoring core of automated processes, stability, efficiency and
environmental adaptability are particularly important. Therefore, it is adapted to different scenarios.
| SYSTEM | CPU | NXP i.MX 8M Mini Cortex®-A53 1.6GHz Quad-core processor |
| OS | Android 9.0 / Linux Debian 10 | |
| RAM + ROM | 2GB LPDDR4 (4GB is optional) + 16GB Flash (64GB is optional) | |
| GPU | 3D GPU (1×shader, OpenGL® ES2.0), 2D GPU | |
| Sensors | Gyroscope & accelerometer | |
| DISPLAY | LCD | 1280×800, 800 nit, 170°/170° viewing angle |
| Touch Screen | Multi-point capacitive touch screen | |

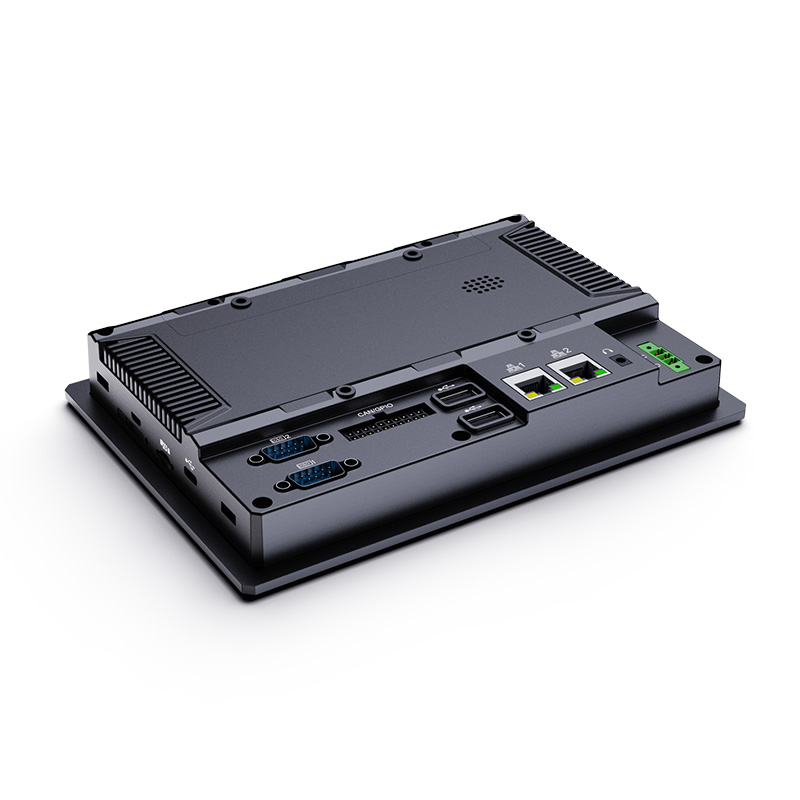

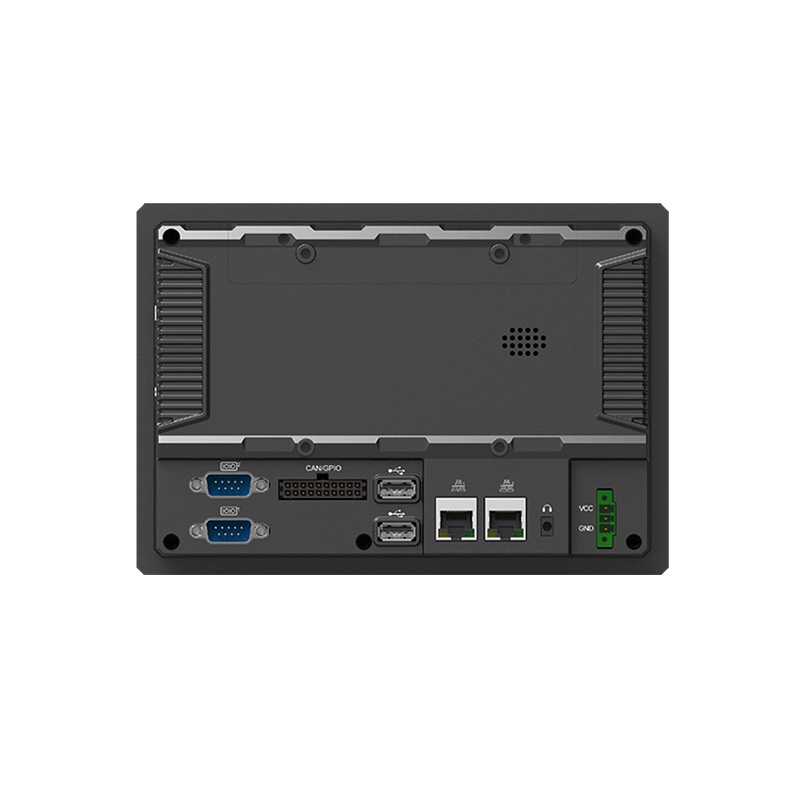

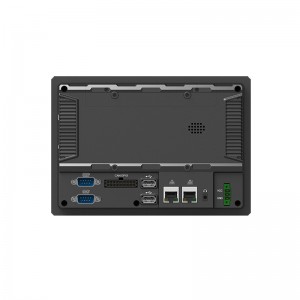

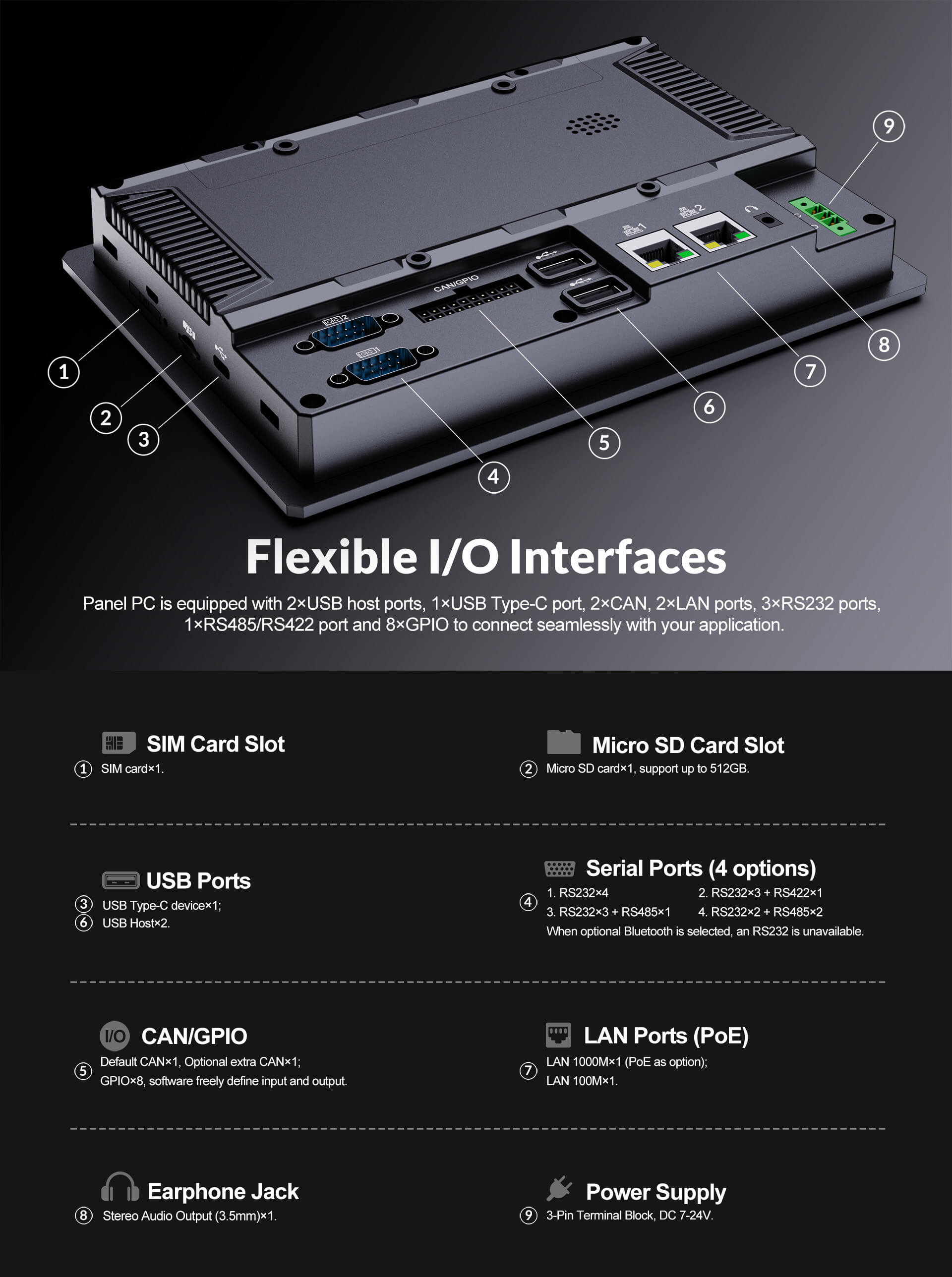

| INTERFACES | LAN | 1000M×1 (PoE is optional, 25W), 100M×1 |
| GPIO | ×8 (Software freely define input and output) | |
| CAN | Default CAN Bus 2.0B×1, optional extra CAN Bus 2.0B×1 | |
| COM (4 options) | 1. RS232×4 | |
| 2. RS232×3 + RS485×1 or 3. RS232×3 + RS422×1 | ||
| 4. RS232×2 + RS485×2 | ||
| When optional Bluetooth is selected, a RS232 is unavailable | ||
| SIM Slot | ×1 | |
| Micro SD Card Slot | ×1, support up to 512GB | |
| USB | USB host×2, USB Type-C device×1 | |
| Earphone Jack | 3.5mm | |
| OPTIONAL FUNCTION | Cellular Network | 3G/4G (LTE, DC-HSPA+, WCDMA, GSM) |
| Wi-Fi | 802.11a/b/g/n/ac, 2.4GHZ/5GHZ | |
| Bluetooth | Bluetooth 5.0, 2402MHz~2480MHz | |
| GNSS | GPS, GLONASS （External） | |
| POWER | Power Supply | DC 8~36V |
| Power Consumption | ≤12.5W (≤2.5W when standby) | |
| OTHERS | Speaker | ×1 |

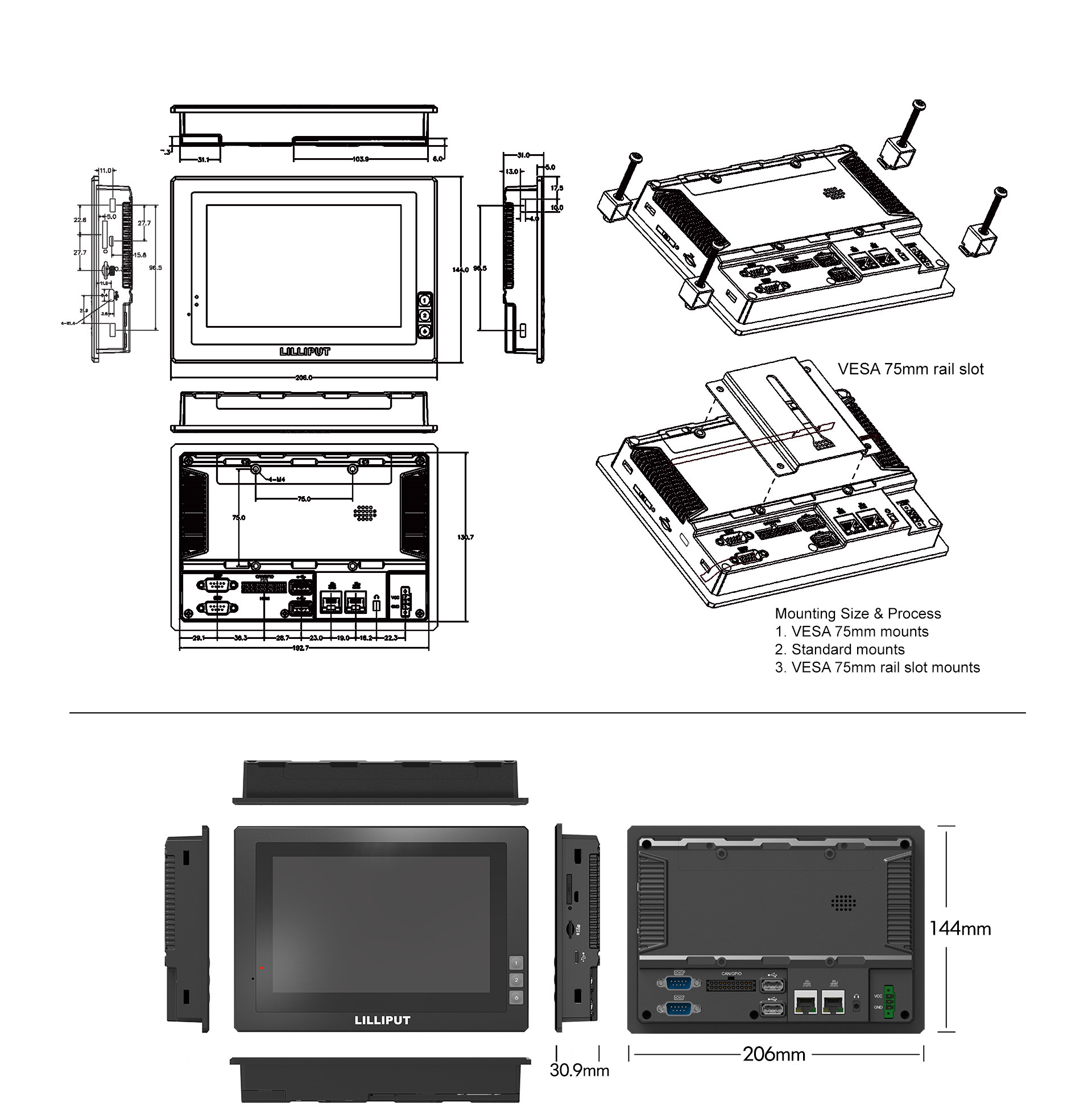

| Dimension | 206mm×144mm×31mm | |
| Weight | 790g | |
| Environment | Operating Temp: -20°C~60°C (-4°F~140°F) | |
| Storage Temp: -30°C~70°C (-22°F~158°F) |
