Applications
Rich resource working with powerful Intel CPU processor, which applied in different fields. For instance, Intelligent industrial control system, electric power industry, electronic assembly line, numerical control machine, coal mine acquisition, large warehouse management, manufacturing, retail, medical device, HMI, catering and entertainment, port terminal, shopping mall, etc.
The front panel is designed to carry IP65 degree of protection which offer complete protection against particles,
and a good level of protection against water, up to water projected by a nozzle against front panel from any direction.
Rich Interfaces
In addition to the interfaces shown, the engineers have creatively reserved a number of expansion ports on the mainboard that can be uniquely customized for different requests The readily replaceable sheet metal also provides a great deal of ease in modifying the interfaces.
| PC1560-J64125 | PC1560-J6412 | PC1560-i3/i5/i7 | |
| CPU | Intel Celeron J4125 2.0 GHz Quad-core Processor(4M Cache, up to 2.70GHz) |
Intel Celeron J6412 2.0 GHz Quad-core Processor (1.5M Cache, up to 2.60 GHz) |
i3-1215U 3.3 GHz Processor (10M Cache, up to 4.40 GHz)i3-1315U 3.3 GHz Processor (10M Cache, up to 4.50 GHz) |
| i5-1235U 3.3 GHz Processor (12M Cache, up to 4.40 GHz) i5-1335U 3.4 GHz Processor (12M Cache, up to 4.60 GHz) | |||
| i7-1255U 3.5 GHz Processor (12M Cache, up to 4.70 GHz) i7-1355U 3.7 GHz Processor (12M Cache, up to 5.00 GHz) | |||
| OS | Windows 10/11 (unactivated) / Linux (optional) | ||
| GPU | Intel® UHD Graphics | ||
| RAM | 4GB DDR4, up to 8GB | 4GB DDR4, up to 16GB | 4GB NB-DDR4, up to 64GB |
| Storage | 120GB mSATA (up to 1TB) | 120GB mSATA (up to 1TB) | 120GB M.2-SATA (up to 1TB) |

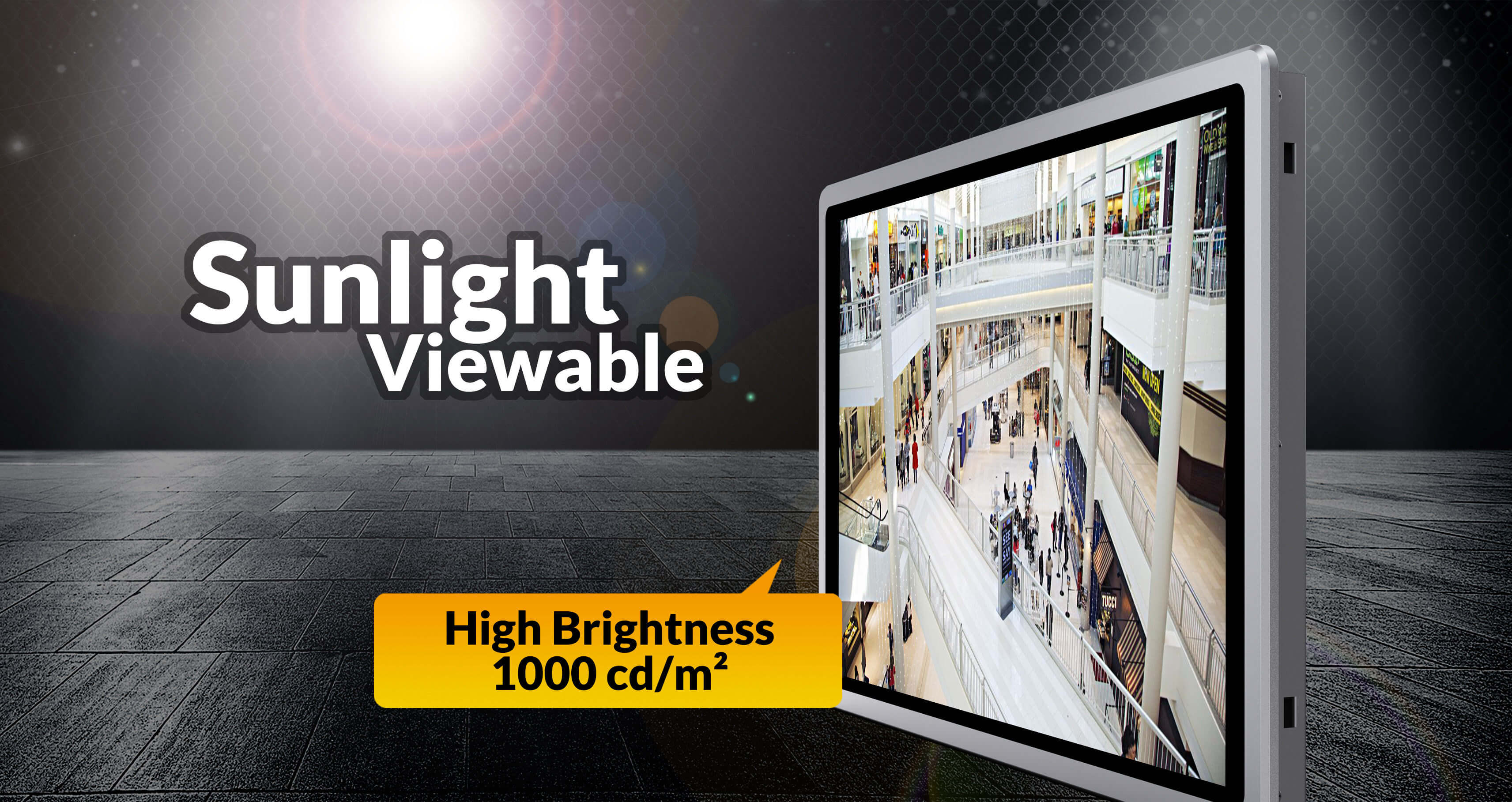

| LCD | 15.6″ 1920 × 1080, 1000cd/m2 | ||
| Touchscreen | 10-point PCAP, support touch with gloves ans water | ||
| Bluetooth | 2402MHz~2480MHz | ||
| WLAN | 802.11a/b/g/n, 2.4GHZ | ||
| Sound | Microphone and audio output | ||
| Interfaces | 2 × 8Ω 5W Speaker | ||
| 1 × HDMI output (up to 4K 30Hz) | |||
| 2 × USB 2.0 Host,2 × USB 3.0 Host | 2 × USB 2.0 Host,2 × USB 3.0 Host | 2 × USB 2.0 Host,2 × USB 3.2 Host | |
| 1 × LAN, 1000M | |||
| COM1: RS232; COM2: RS232/RS422/RS485 | |||
| 1 × Audio output, 1 × Microphone | |||
| Card Slot | / | / | 1 × SIM Slot |
| Power Supply | DC 12V | ||
| Power consumption | ≤ 42W | ≤ 42W | ≤66W |
| Physical Dimensions | 408mm×259mm×50.5mm | ||
| Weight | 4.06kg | ||
| Environment | Operating temperature: -10°C ~ 60°C (14°F ~ 140°F) | ||
| Storage temperature: -20°C ~ 70°C (-4°F ~ 158°F) | |||
