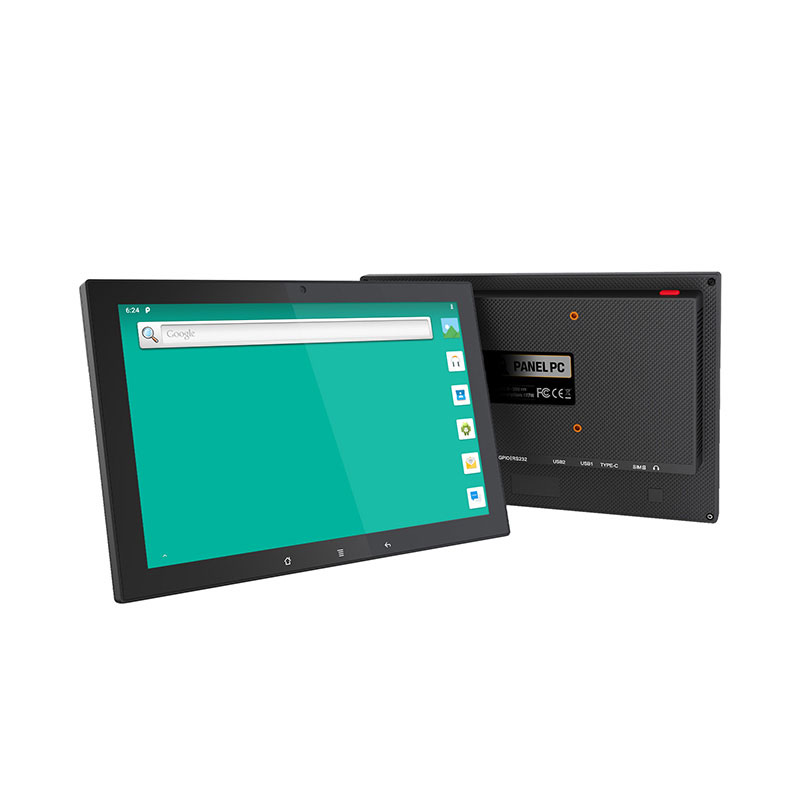

10.1 inch Android Panel PC With Rockchip Processor Featured Image
  • 10.1 inch Android Panel PC With Rockchip Processor
  • 10.1 inch Android Panel PC With Rockchip Processor
  • 10.1 inch Android Panel PC With Rockchip Processor
  • 10.1 inch Android Panel PC With Rockchip Processor

Short Description:

This is an Android 10 OS Panel PC with a 10.1” capacitive touch function, and 1000 nits LED screen, which comes with rich interfaces and ABS plastic housing. This device can be connected through LAN, WiFi, Bluetooth and contains transmission interfaces (GPIO, RS232, etc) to be controlled by software.


  • Model: PC-1010R
  • Resolution: 1280*800
  • Brightness: 1000nits
  • OS: Android 10.0
  • RAM/ROM: 2GB RAM and 16GB ROM (4GB RAM and 64GB ROM for optional)

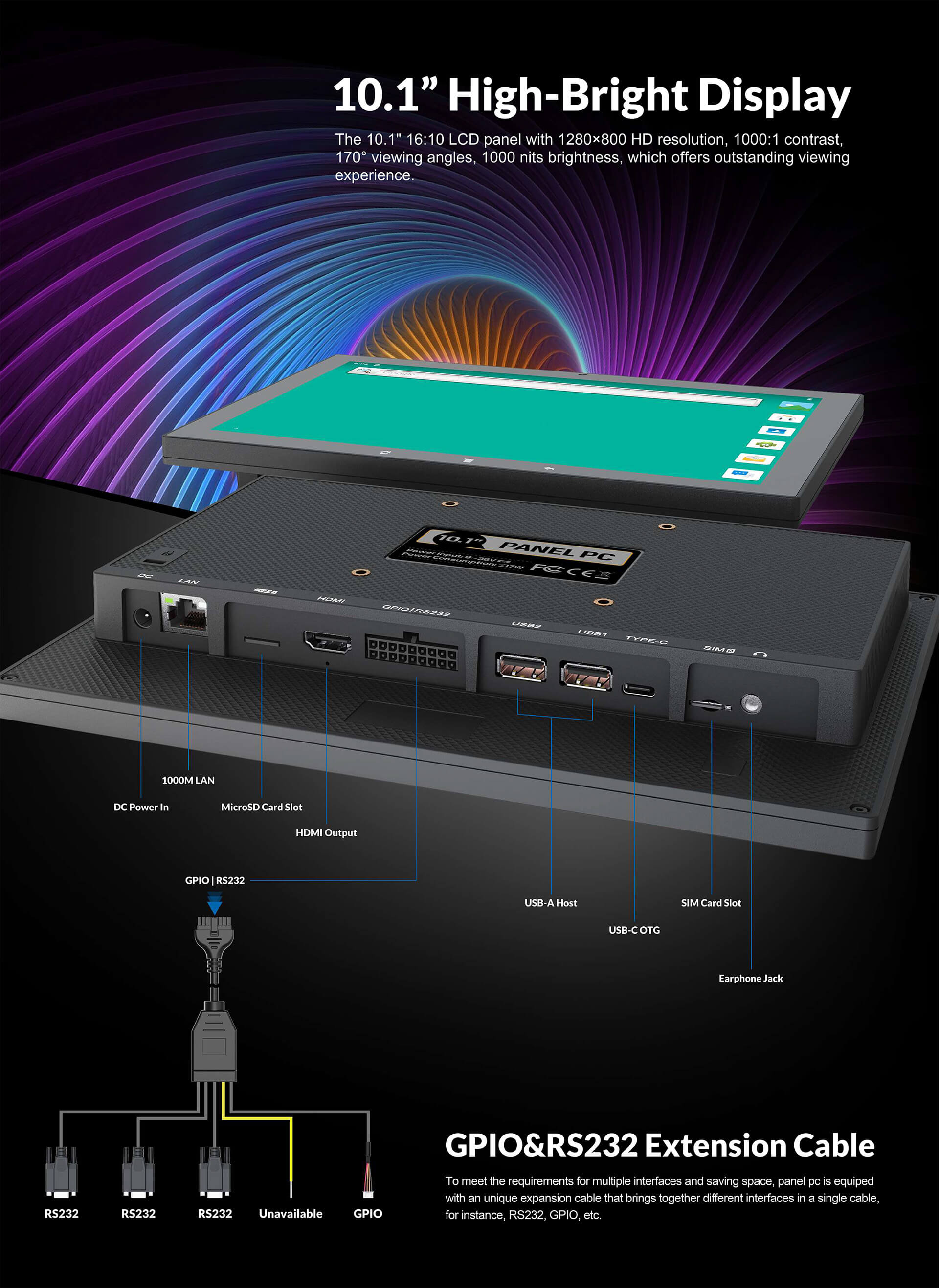

  • Interface: LAN, GPIO, RS232,HDMI, USB, SIM CARD ....
    • Download as PDF User guide

    Product Detail

    SPECIFICATION

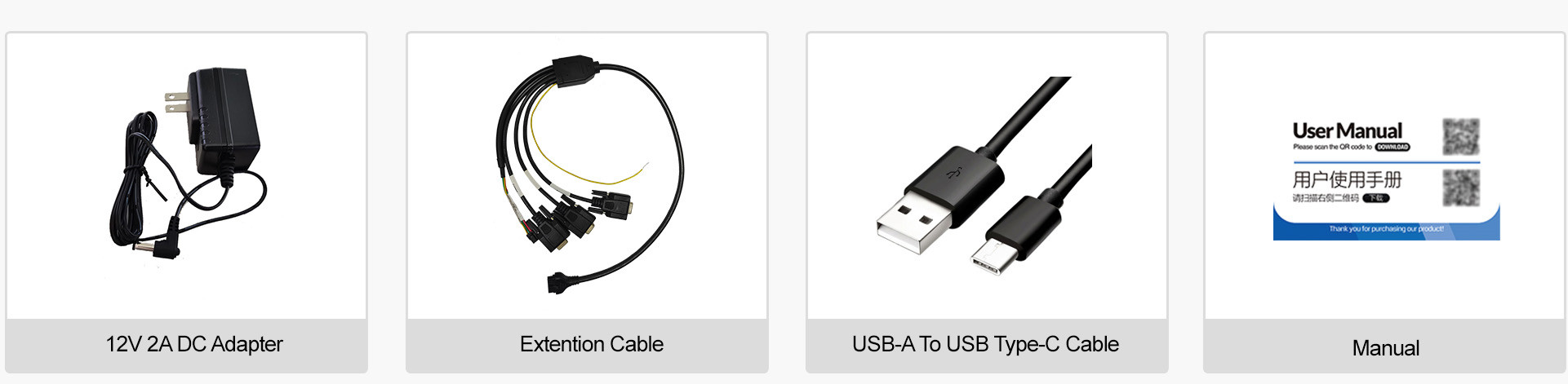

    ACCESSORIES

    PC-1010R DM
    PC-1010R DM
    PC-1010R DM
    PC-1010R DM
    PC-1010R DM
  • Previous:
  • Next:
    • Model NO. PC1010R PC1010
    SYSTEM CPU Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor
    OS Android 10  Android 9.0
    RAM + ROM  2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional
    GPU Mali-T764  Adreno 506
    PANEL Sensors Light and Proximity Sensor (Auto dimming), Gyroscope & Acceleration  Light Sensor (Auto Dimming)
    LCD  10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle
    Touch Screen  Multi-point capacitive touch screen
    INTERFACE LAN 1000M×1  100M×1 (PoE is optional, 25W)
    GPIO  ×4 (Input×2, output×2)
    COM  RS232×3
    HDMI  ×1 Output, support up to 1080p
    SIM  ×1
    Micro SD Card  ×1, support up to 128GB
    USB  USB host×2, USB Type-C OTG×1
    Earphone Jack  3.5mm
    WIRELESS Wi-Fi Optional 802.11a/b/g/n/ac, 2.4GHZ/5GHZ  802.11a/b/g/n/ac, 2.4GHZ/5GHZ
    Bluetooth Optional 5.0, 2402MHz~2480MHz  2402MHz~2480MHz
    Cellular Network Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM)
    GNSS  Optional (GPS, GLONASS)
    NFC Without  Optional
    BUILT-IN Front Camera  Optional, 5.0MP
    Speaker  ×1
    POWER Power Supply  DC 9~36V
    Power Consumption  ≤17W  ≤12W
    OTHER Dimension  249mm×166mm×32mm
    Weight  980g
    Environment  Operating Temp: -10°C~60°C (14°F~140°F)
     Storage Temp: -20°C~65°C (-4°F~149°F)
