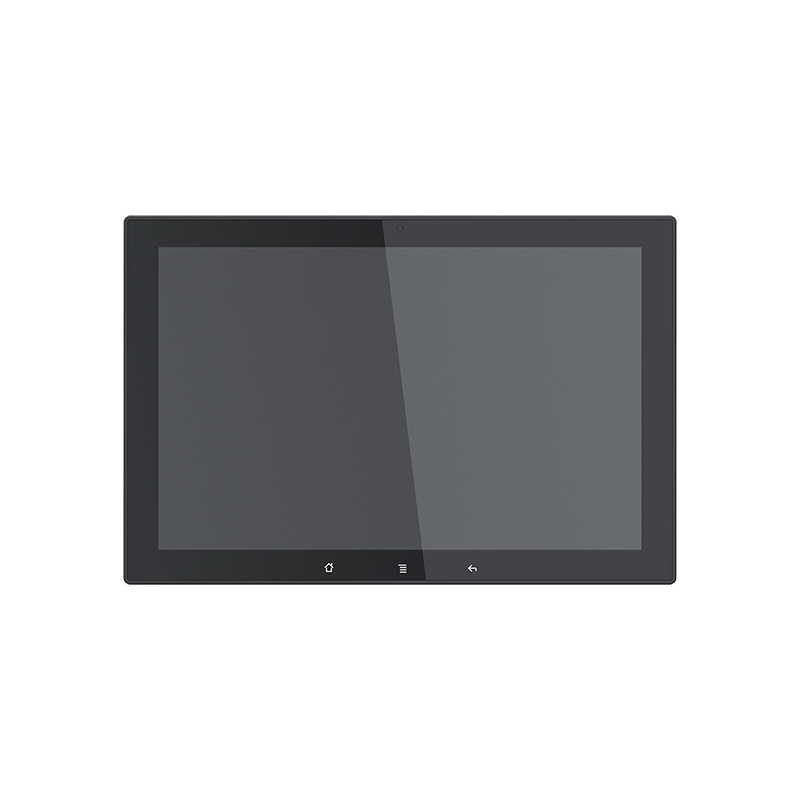

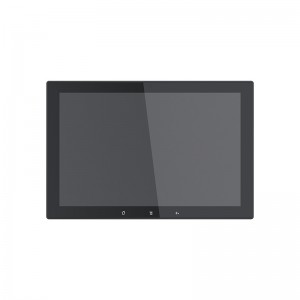

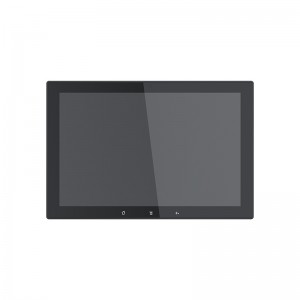

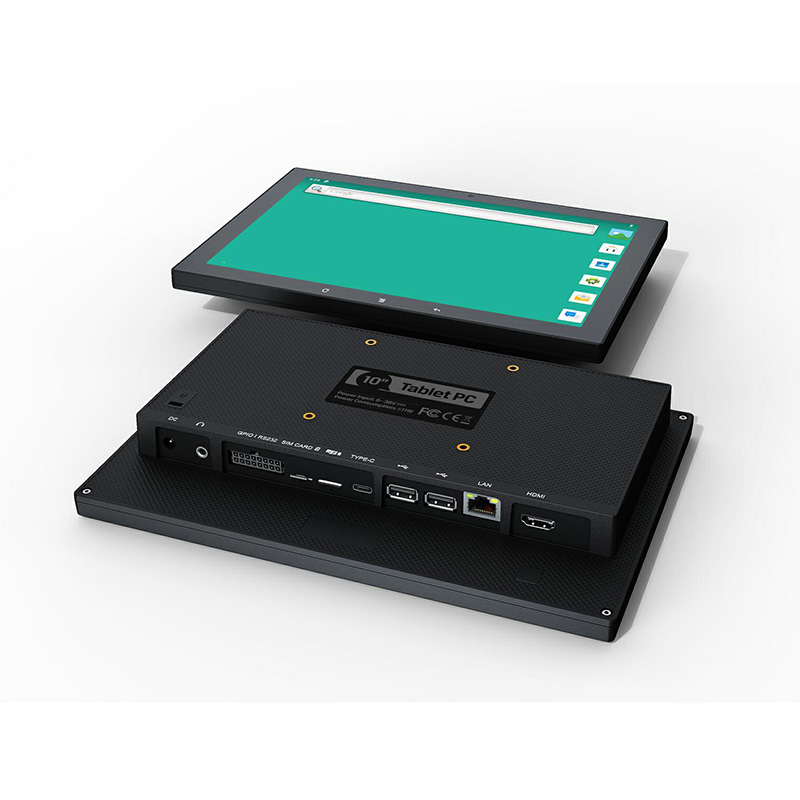

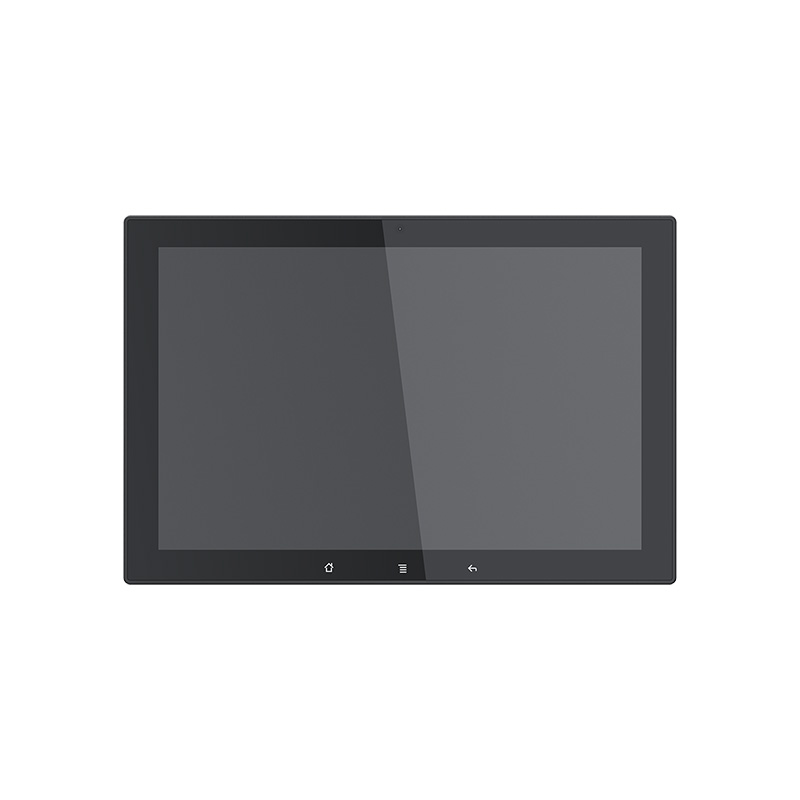

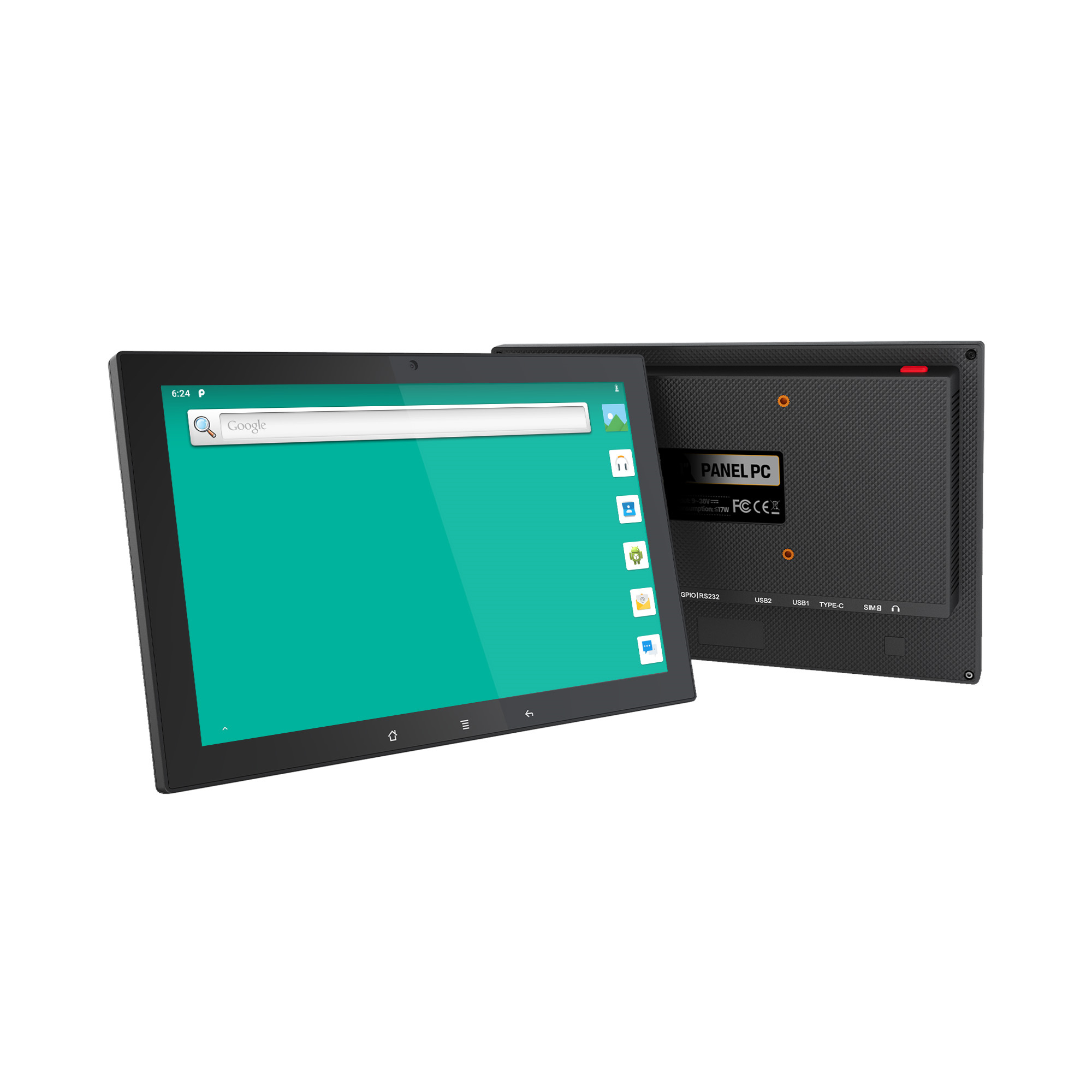

10.1” ANDROID PANEL PC
This is an Android 9.0 OS Panel PC with a 10.1” capacitive touch function, Power over Ethernet (PoE)
and 1000 nits LED screen, which comes with rich interfaces and ABS plastic housing. This device can

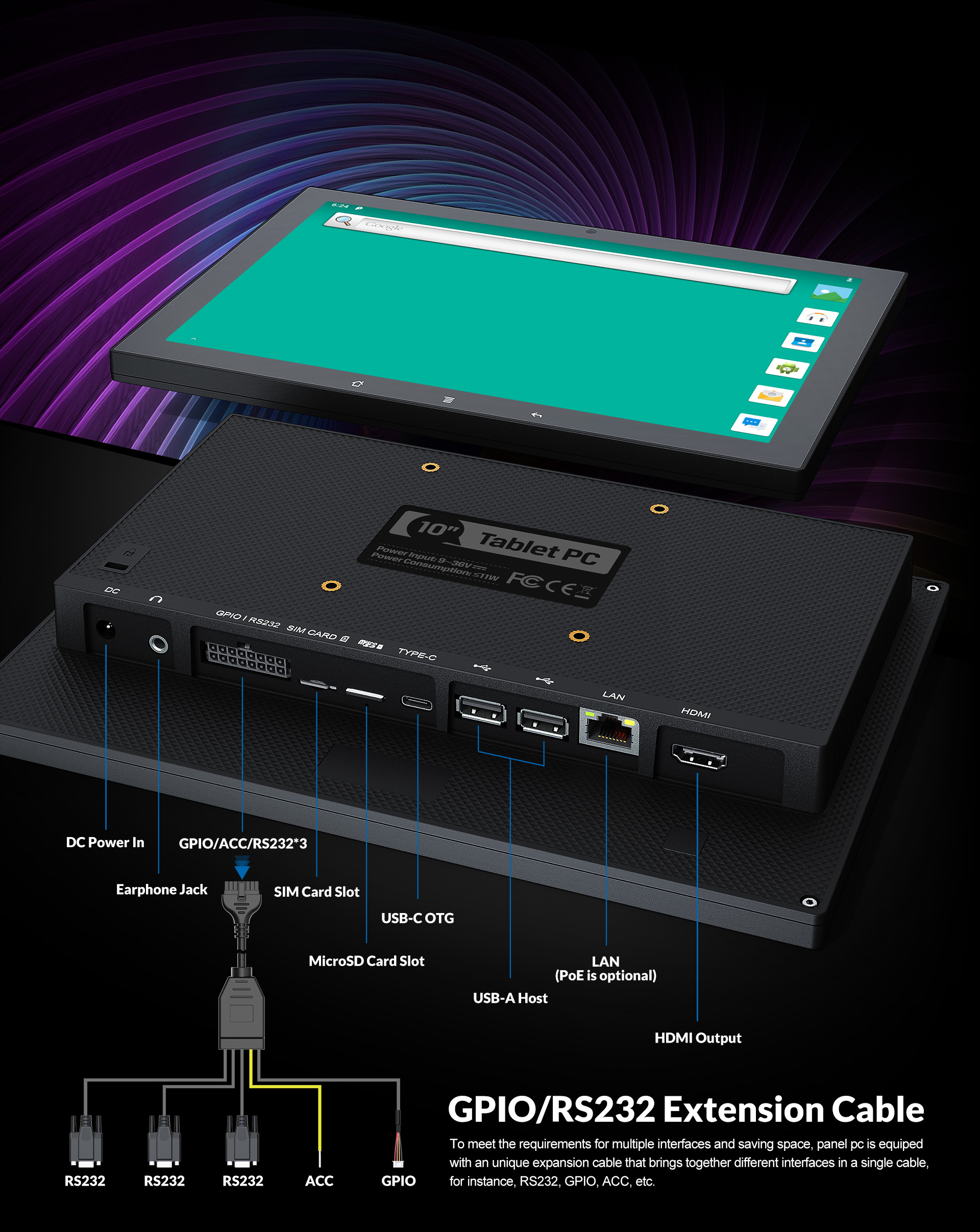

be connected through LAN, WiFi, Bluetooth and contains transmission interfaces (GPIO, RS232, etc)
to be controlled by software.
10.1 ANDROID PANEL PC

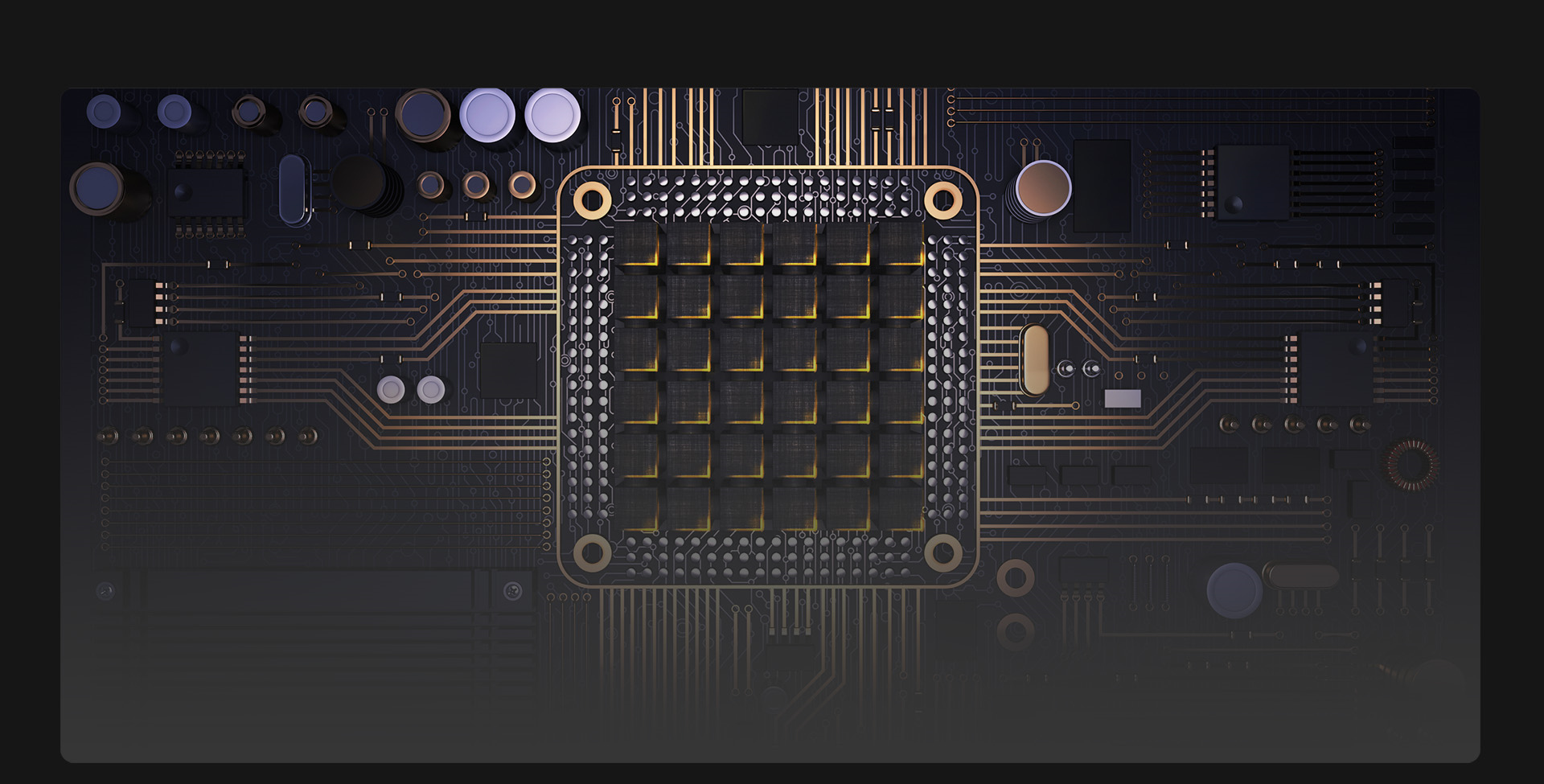

The Arm Cortex-A processor series is designed for devices undertaking complex compute tasks,
hosting diverse operating system platforms and supporting multiple software programs. Built as a
low-power processor with 64-bit capabilities, the Cortex-A53 processor is applicable in a range of
devices requiring high performance in power-constrained environments.

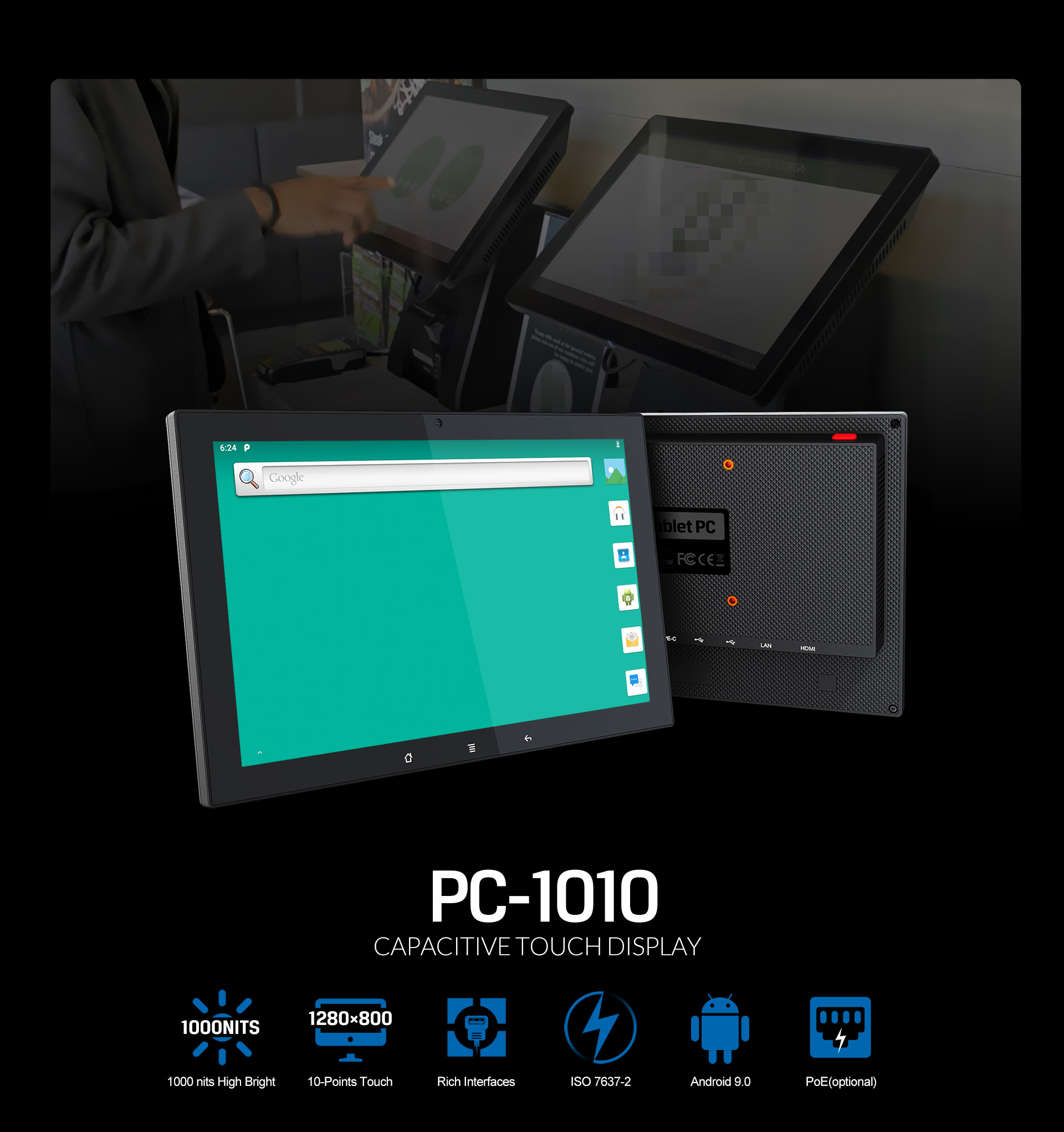

10.1” High-Bright Display
The 10.1" 16:10 LCD panel with 1280×800 HD resolution, 1000:1 contrast,
170° viewing angles, 1000 nits brightness, which offers outstanding viewing experience.
Applications & Solutions
Incredible flexible to customize products according to customer demands. Multiple platforms and modules for optional.
Through perfect combination of client-side sensor and software, we can help to realize various field applications.
| SYSTEM | CPU | Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor |
| OS | Android 9.0 | |
| RAM + ROM | 2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional | |
| GPU | Adreno 506 | |
| PANEL | Sensors | Light Sensor (Auto Dimming) |
| LCD | 10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle | |
| Touch Screen | Multi-point capacitive touch screen | |

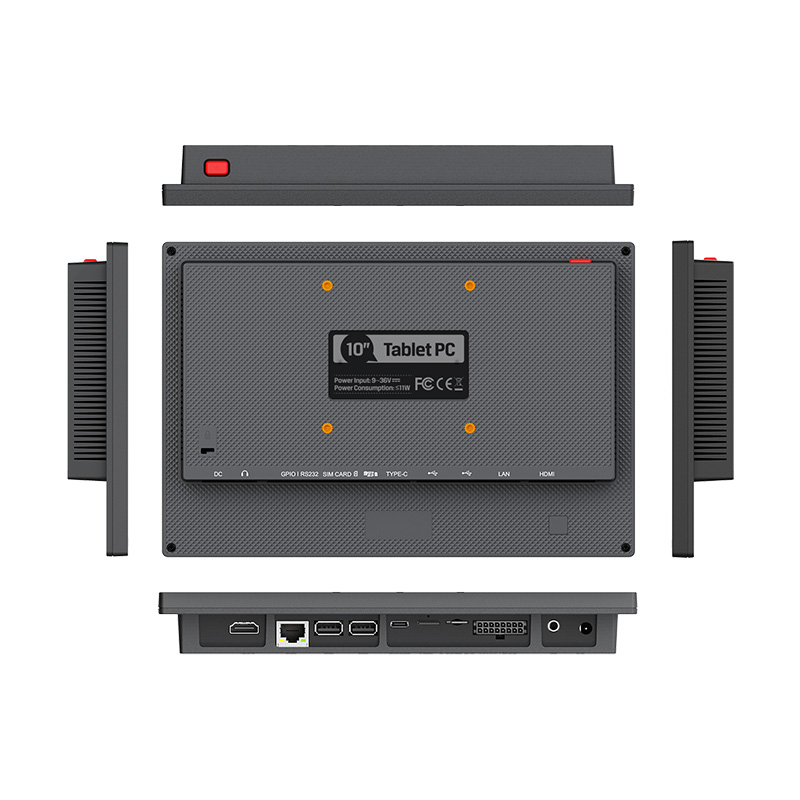

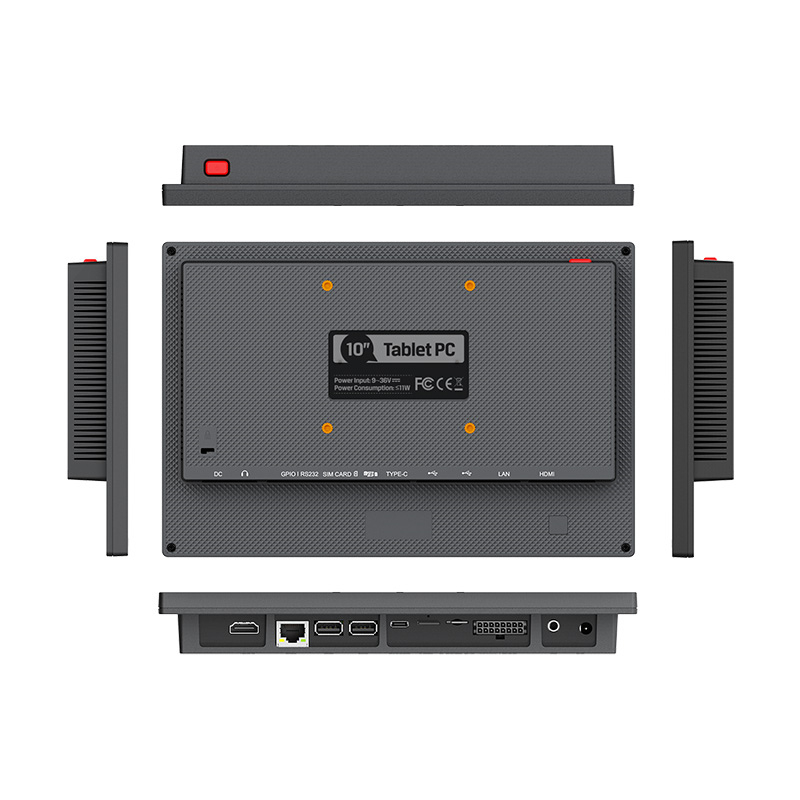

| INTERFACE | LAN | 100M×1 (PoE is optional, 25W) |
| GPIO | ×4 (Input×2, output×2) | |
| COM | RS232×3 | |
| HDMI | ×1 Output, support up to 1080p | |
| SIM | ×1 | |
| Micro SD Card | ×1, support up to 128GB | |
| USB | USB host×2, USB Type-C OTG×1 | |
| Earphone Jack | 3.5mm | |
| WIRELESS | Wi-Fi | 802.11a/b/g/n/ac, 2.4GHZ/5GHZ |
| Bluetooth | 2402MHz~2480MHz | |
| Cellular Network | Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM) | |
| GNSS | Optional (GPS, GLONASS) | |
| NFC | Optional | |
| BUILT-IN | Front Camera | Optional, 5.0MP |
| Speaker | ×1 | |
| POWER | Power Supply | DC 9~36V |
| Power Consumption | ≤8W | |

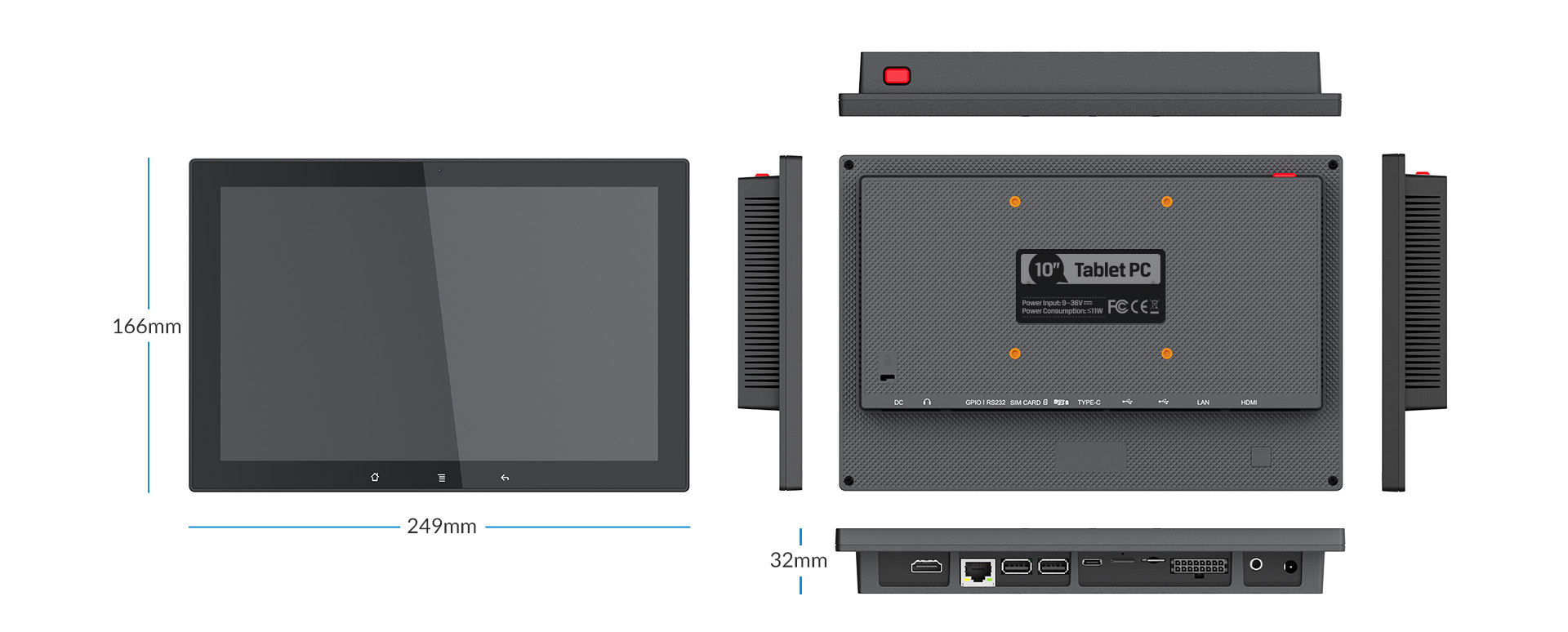

| OTHER | Dimension | 249mm×166mm×32mm |
| Weight | 980g | |
| Environment | Operating Temp: -10°C~60°C (14°F~140°F) | |
| Storage Temp: -20°C~65°C (-4°F~149°F) |
