Short Description:

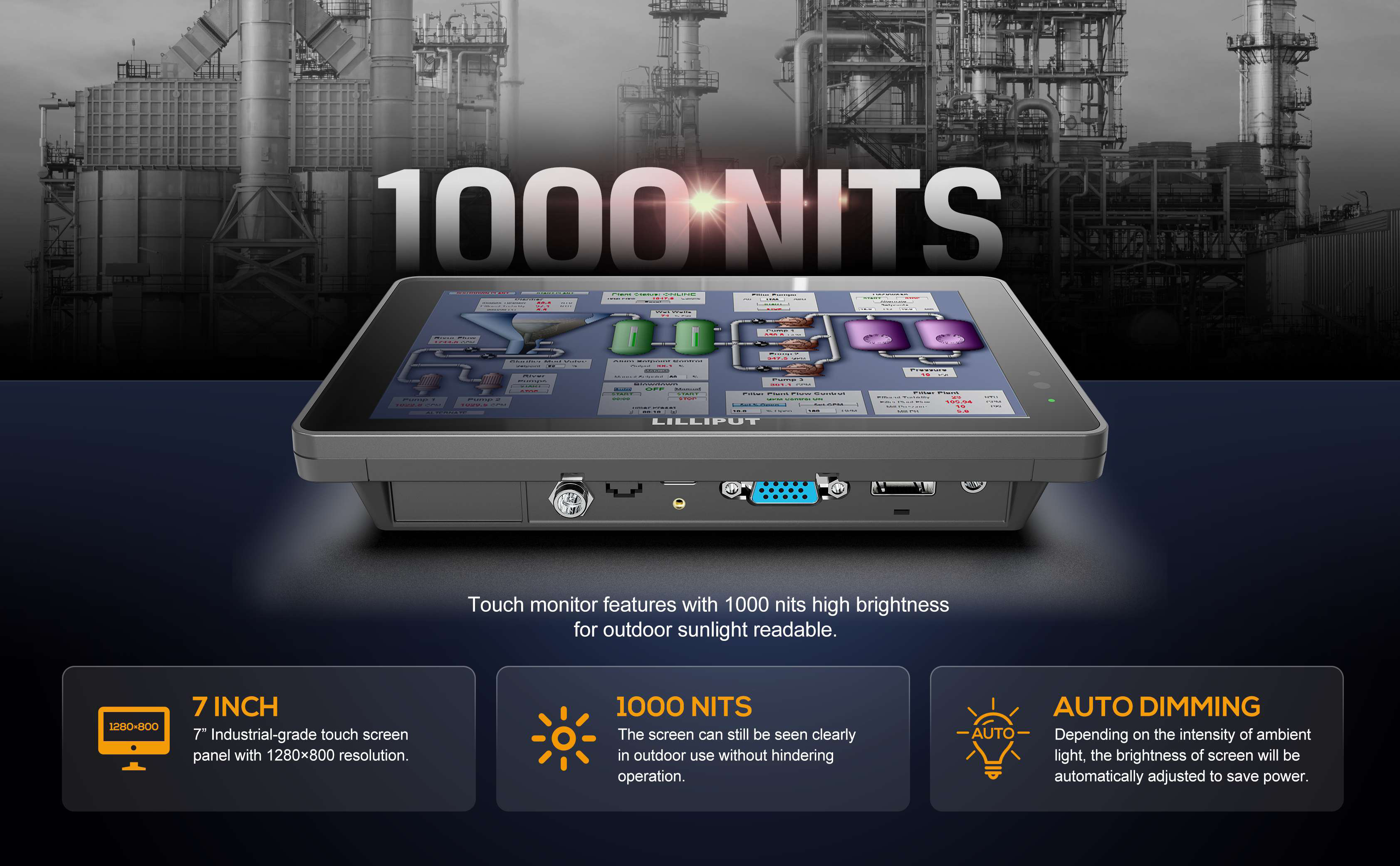

The monitor is a 7 inch touch monitor with a high-brightness 1000 NITS (1000 cd/m²) display . It has a native resolution of 1280×800 with support for HDMI signal up to 4K at 30 fps. The monitor is equipped with HDMI, VGA, and USB-C video inputs, headphone output, and a built-in speaker.

Whole device with IP65 rating plastic housing design, support rugged frame for installation into industrial environments where a computer system is already in use and an extra built in display is required.

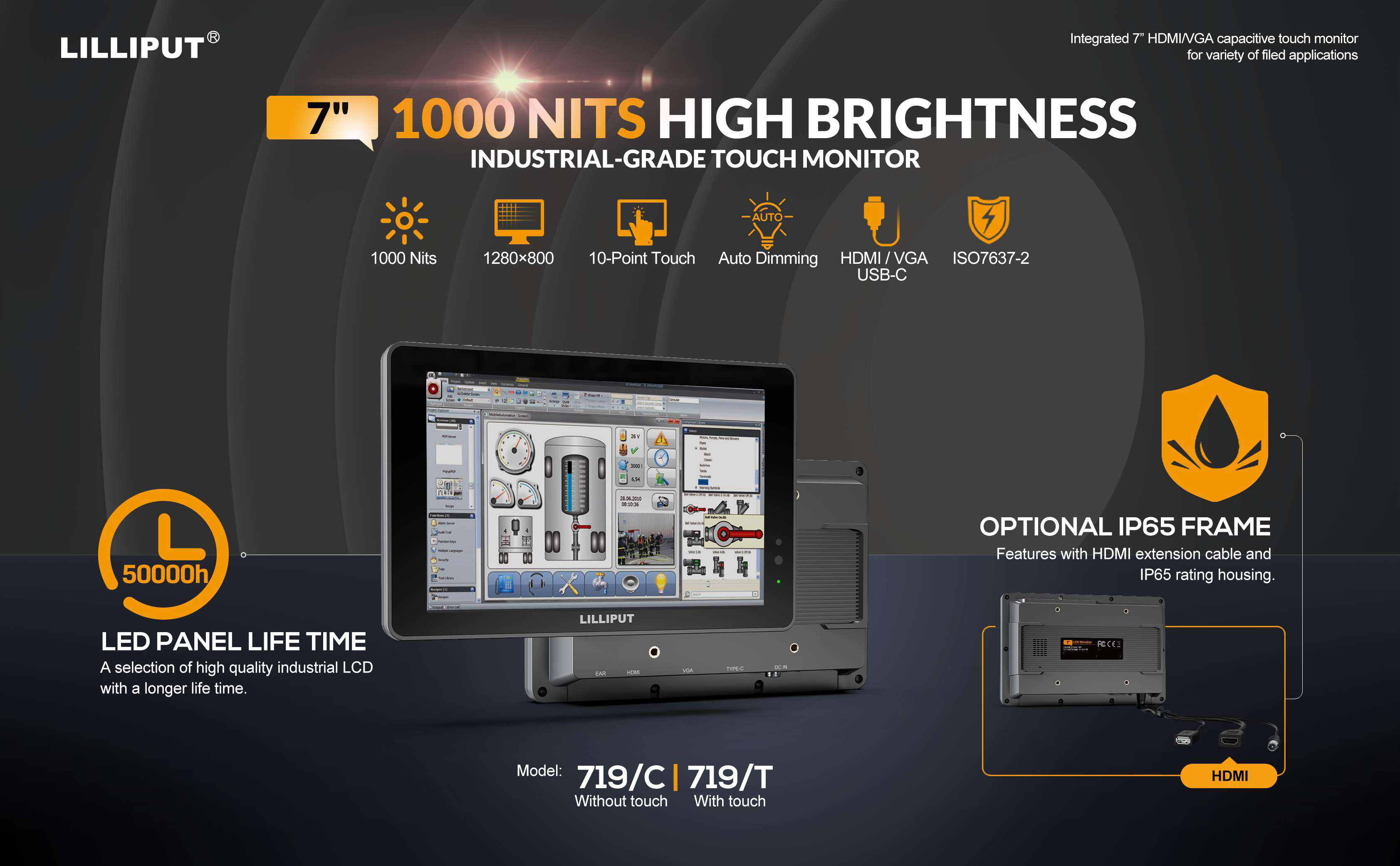

  • Model No. : 719/C & 719/T
  • Touch panel: 10-point PCAP (optional)
  • Display: 7" / 1280×800 / 1000 nits

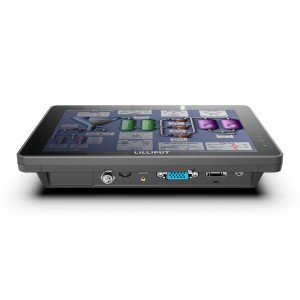

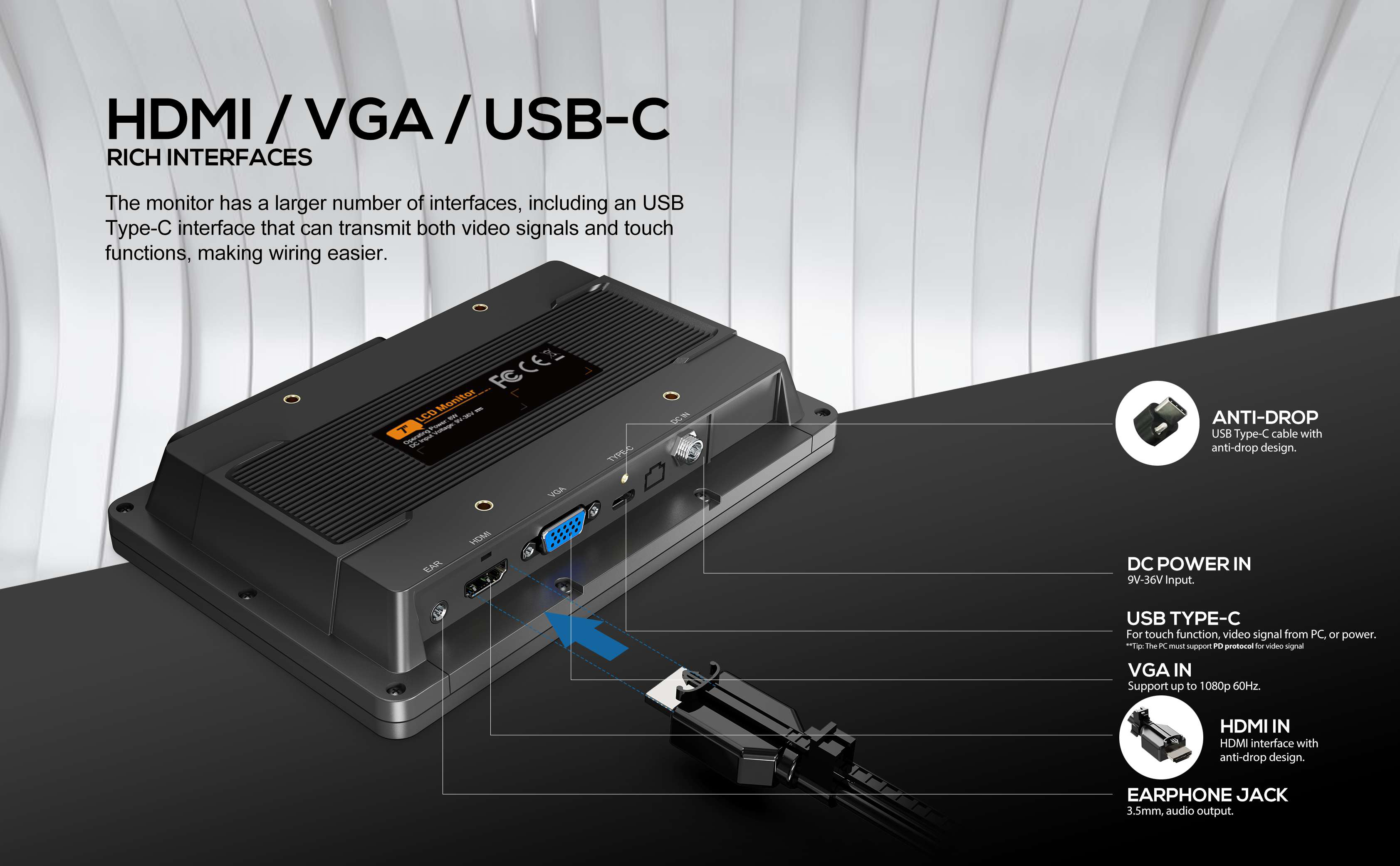

  • Interfaces: HDMI, VGA, USB-C
  • Feature: 1000nits Brightness, 10-points PCAP, IP65 Rating, Auto Dimming, ISO7637-2
  • Product Detail

    Specifications

    Accessories

    1 2 3 4 5 6 7


  • Previous:
  • Next:

  • MODEL NO. 719/C 719/T 719/C 719/T
    STRUCTURE Standard       With Optional IP65 Frame
    DISPLAY Touch Screen Non-touch 10-point PCAP Non-touch 10-point PCAP
    Panel 7” LCD
    Physical Resolution 1280×800
    Aspect Ratio 16:10
    Brightness 1000 nits
    Contrast 800:1
    Viewing Angle 170° / 170° (H/V)
    LED Panel Life Time 50000h
    INPUT HDMI 1
    VGA 1
    USB USB-C (For touch+video signal+power) USB-A (For touch only)
    SUPPORTED
    FORMATS
    HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    USB Type-C 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT Speaker 1
    HDMI Available
    Ear Jack 3.5mm – 2ch 48kHz 24-bit
    POWER Input Voltage DC 9-36V
    Power Consumption ≤8.5W (12V)
    ENVIRONMENT IP Rating - IP65
    Operating Temperature -20°C~60°C
    Storage Temperature -30°C~80°C
    DIMENSION Dimension(LWD) 184.5mm × 118.8mm × 32mm

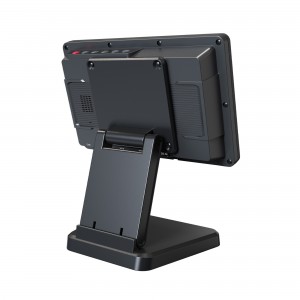

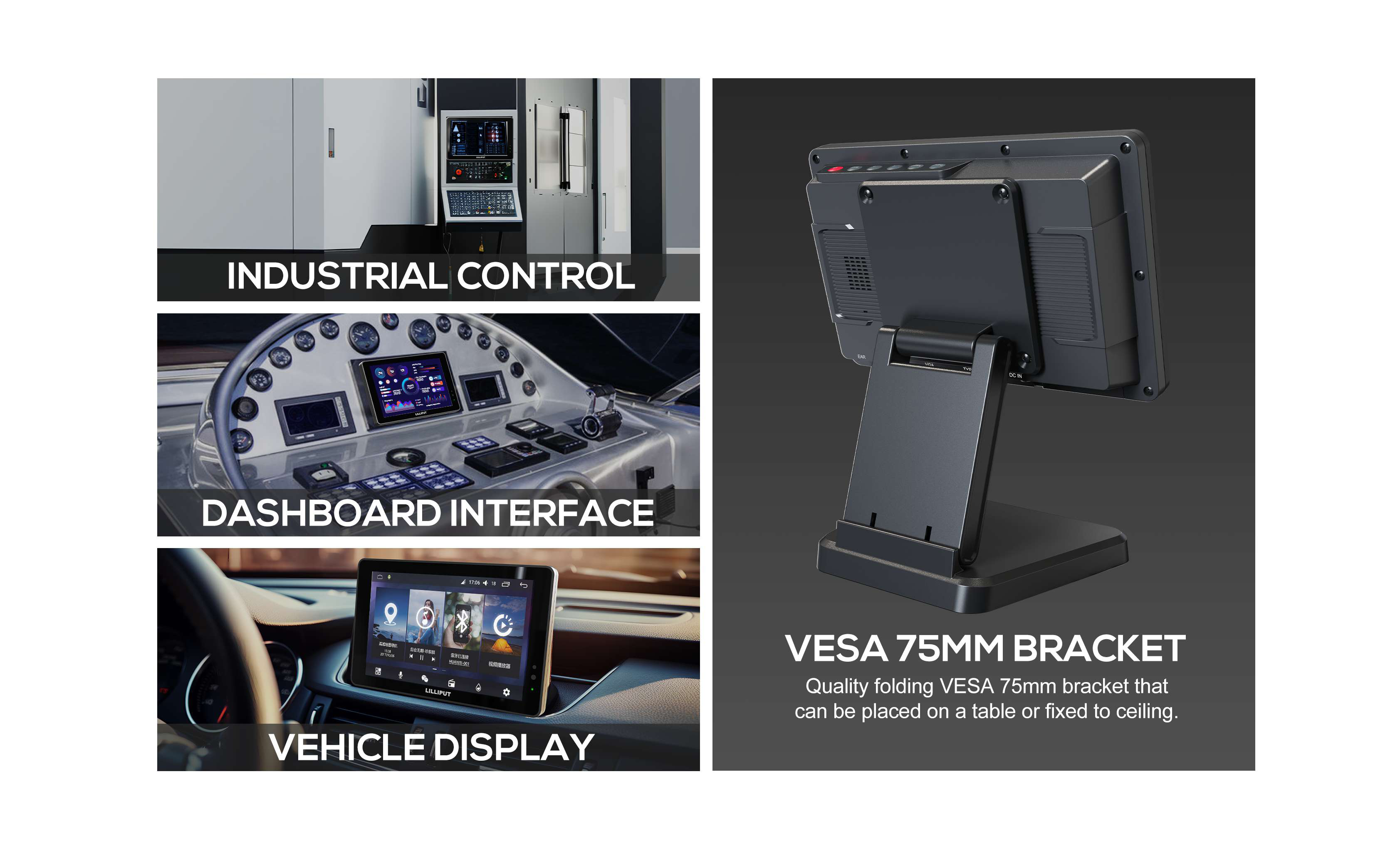

    VESA Mount 75mm
    Weight 410g 560g
