Short Description:

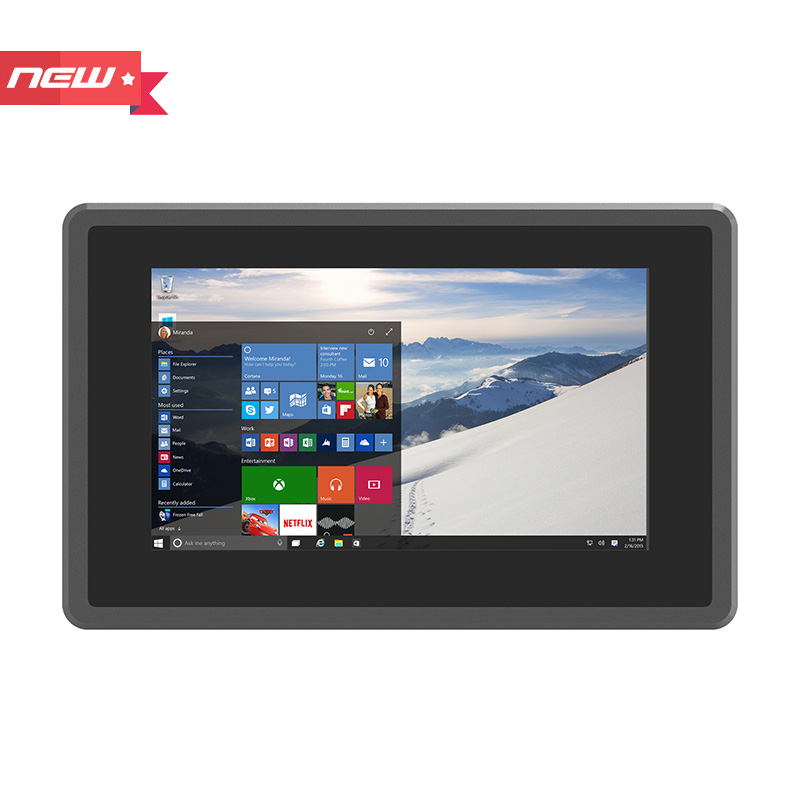

Lilliput 7 inch monitor comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP64 front panel design is a great convenience for installation methods and applications.


  • Model No. : TK701/T & TK701/C
  • Display: 7" LCD, 800*480
  • Input: HDMI,VGA,AV
  • Audio In/Out: Speaker, HDMI, Ear Jack
  • Feature: 1000nits brightness, 10-points touch, IP64, Metal Housing,
    • Download as PDF User guide

    Product Detail

    Specifications

    Accessories

    TK701 DM
    TK701 DM
    TK701 DM
    TK701 DM
    TK701 DM
  • Previous:
  • Next:
    • DISPLAY Touch Screen 10-point capacitive touch (no touch available)
    Panel 7” LCD
    Physical Resolution 800×480
    Aspect Ratio 16:10
    Brightness 1000 nits
    Contrast 1000:1
    Viewing Angle 140° / 120° (H/V)
    INPUT HDMI 1 × HDMI 1.4b
    VGA 1
    AV 2
    Audio 1
    SUPPORTED
    FORMATS    		 HDMI 2160p 24/25/30, 1080p 24/25/30/50/60
    1080i 50/60, 720p 50/60…
    AUDIO IN/OUT Speaker 1
    HDMI 2ch
    Ear Jack 3.5mm – 2ch 48kHz 24-bit
    POWER Input Voltage DC 12-24V
    Power Consumption ≤8.5W (12V)
    ENVIRONMENT Operating Temperature -20°C~60°C (-4°F~140°F)
    Storage Temperature -30°C~70°C (-22°F~158°F)
    Water-proof IP x4 front panel
    Dust-proof IP 6x front panel
    DIMENSION Dimension(LWD) 210mm × 131mm × 34.2mm
    Wall Mount Slot ×4
    Weight 710g

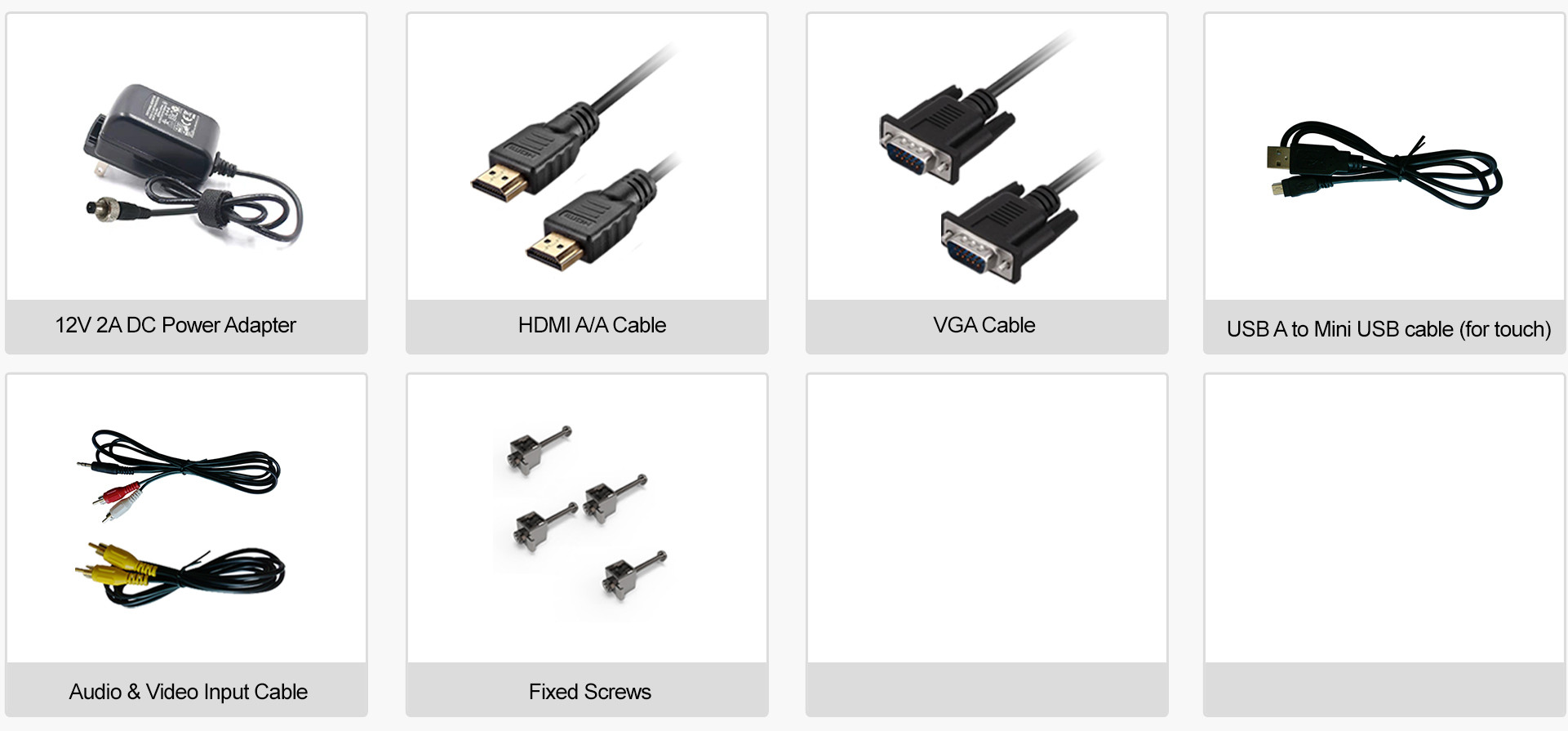

    Accessories
