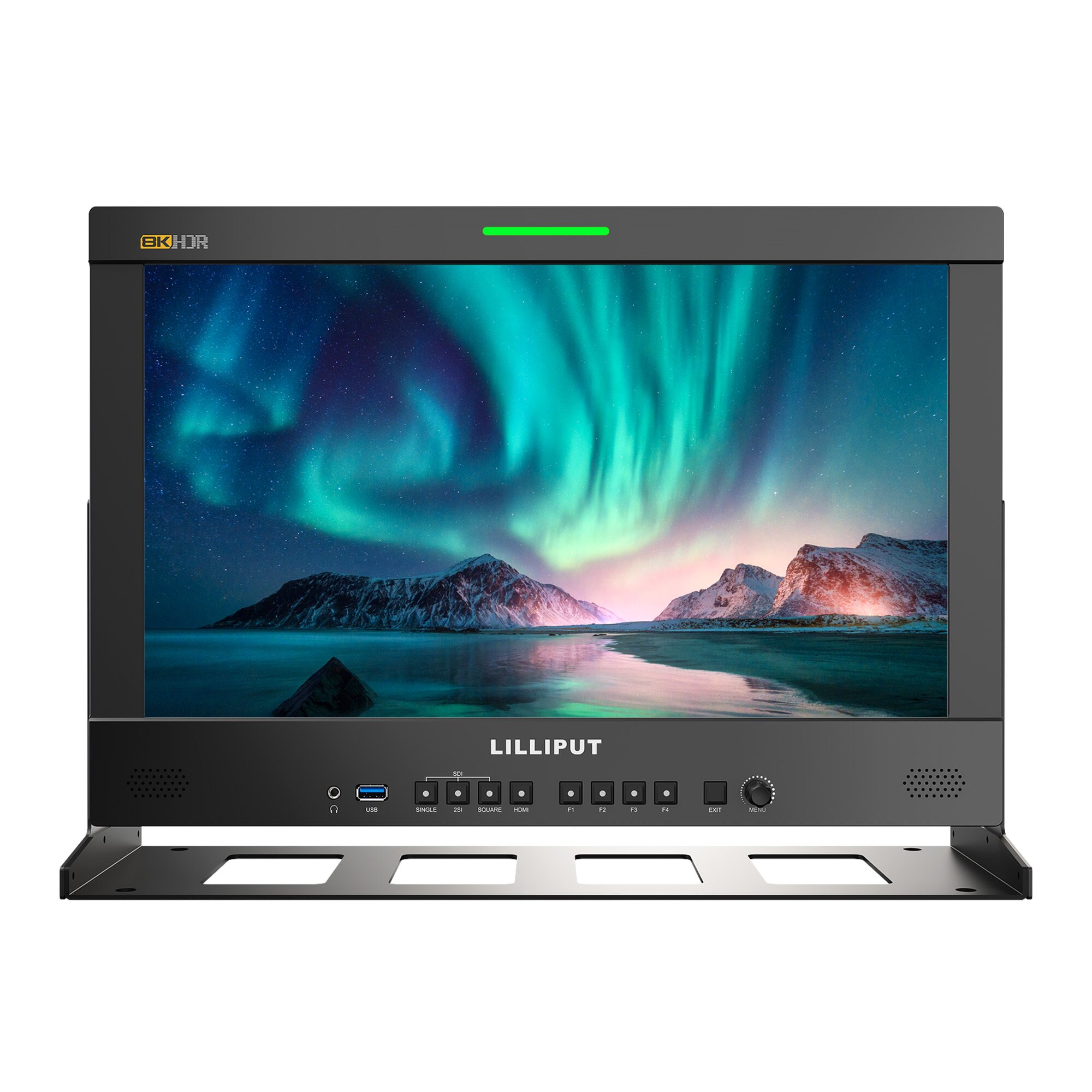

17.3 inch 8K 12G-SDI 3840×2160 studio production monitor

Short Description:

LILLIPUT Q18-8K is a professional studio production monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.




  • Model:: Q18-8K
  • Display:: 17.3 inch, 3840 X 2160, 400nits
  • Input:: 12G-SDI, 12G-SFP, HDMI 2.0
  • Output:: 12G-SDI, HDMI 2.0
  • Remote Control:: RS422, GPI , LAN
  • Feature:: Quad View, 3D-LUT, HDR, Gammas, Remote Control, Audio vector...
  • Product Detail

    Specifications

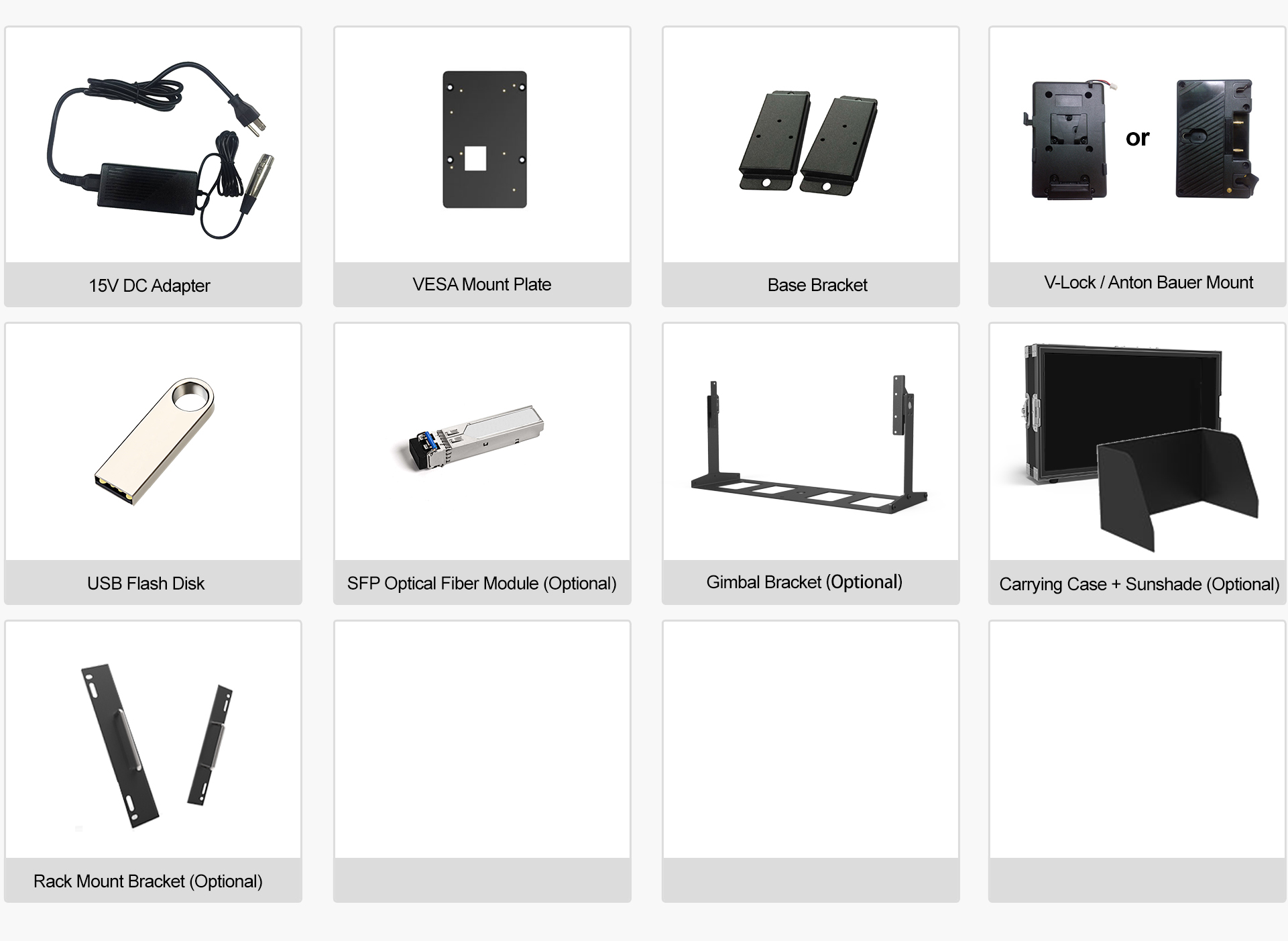

    Accessories

    Q18-8K-8
    Q18-8K-9
    Q18-8K-10
    Q18-8K-11
    Q18-8K-12
    Q18-8K-13
    Q18-8K-14
    Q18-8K-15

  • Previous:
  • Next:

  • DISPLAY Panel 17.3″
    Physical Resolution 3840*2160
    Aspect Ratio 16:9
    Brightness 400 cd/m²
    Contrast 1200:1
    Viewing Angle 170°/170°(H/V)
    HDR ST2084 300/1000/10000/HLG
    Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
    Look up Table(LUT)support 3D LUT (.cube format)
    Technology Calibration to Rec.709 with optional calibration unit

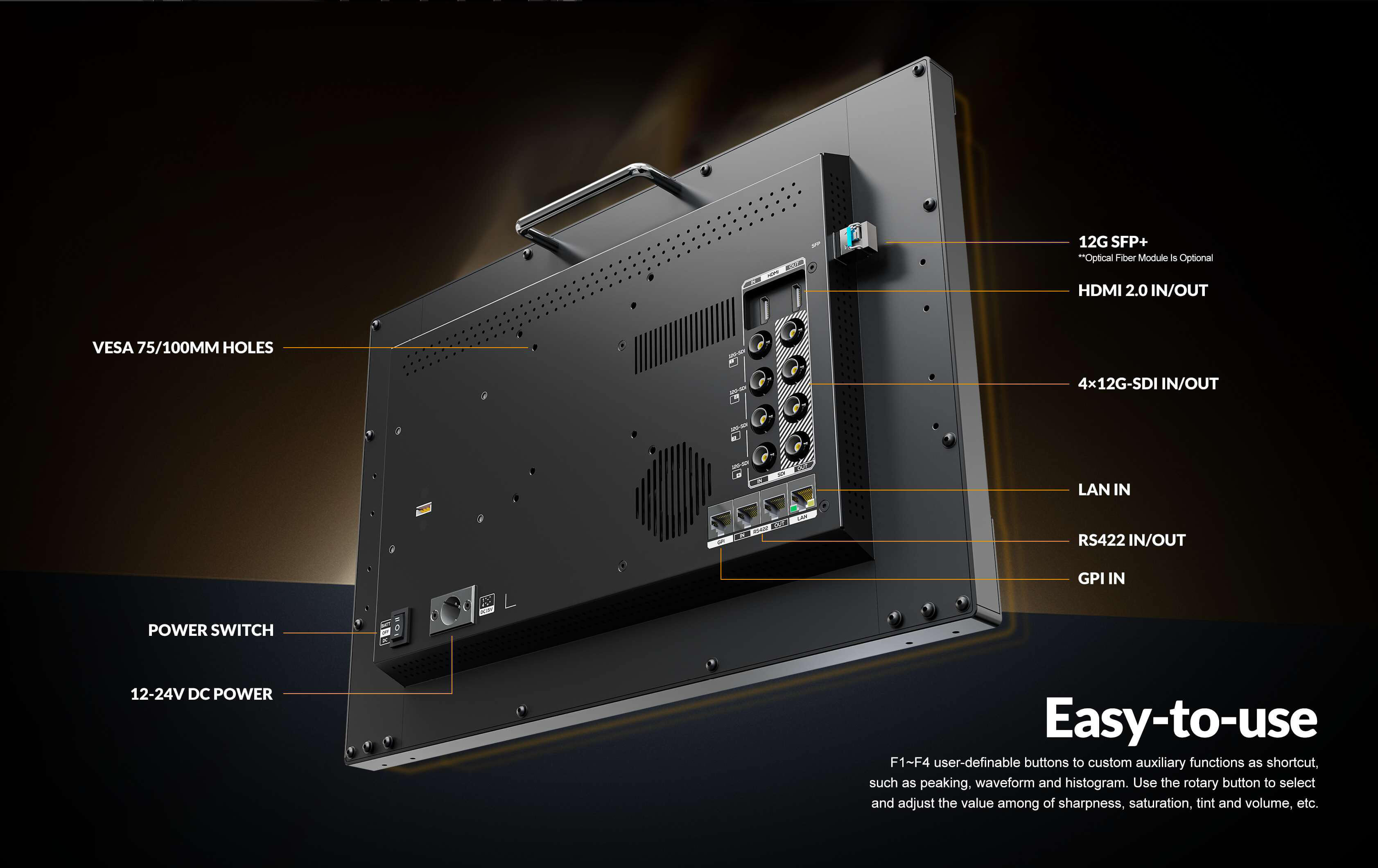

    VIDEO INPUT SDI 4×12G (Supported 8K-SDI Formats Quad Link)
    SFP 1×12G SFP+(Fiber module for optional)
    HDMI 1×HDMI 2.0
    VIDEO LOOP OUTPUT SDI 4×12G (Supported 8K-SDI Formats Quad Link)
    HDMI 1×HDMI 2.0
    SUPPORTED FORMATS SDI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT (48kHz PCM AUDIO) SDI 16ch 48kHz 24-bit
    HDMI 8ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 2
    REMOTE CONTROL RS422 In/out
    GPI 1
    LAN 1
    POWER Input Voltage DC 12-24V
    Power Consumption ≤40W (15V)

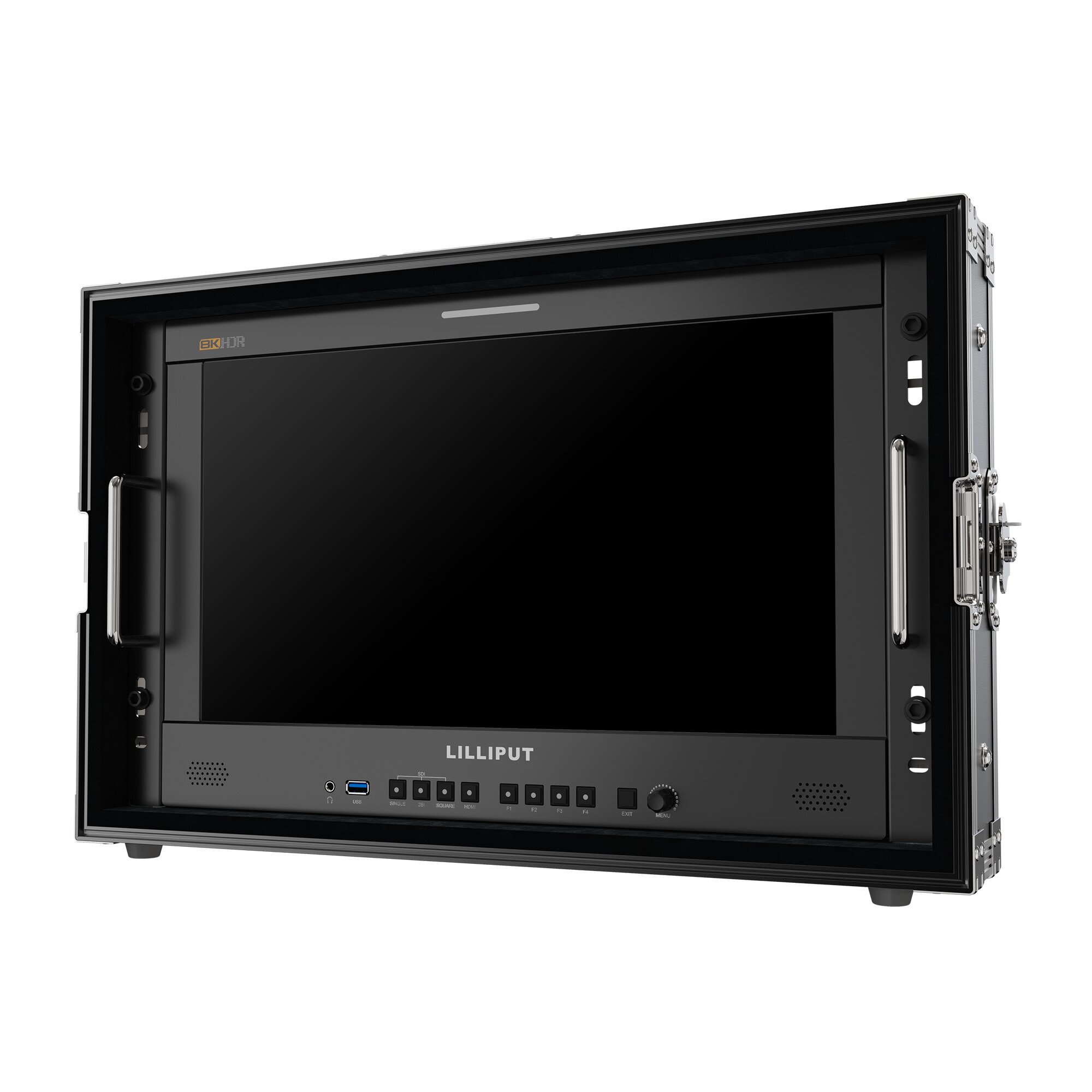

    Compatible Batteries V-Lock or Anton Bauer Mount
    Input Voltage(battery) 14.8V nominal
    ENVIRONMENT Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    OTHER Dimension(LWD) 433.9mm × 294.2mm × 45.7mm
    Weight 3.9kg
