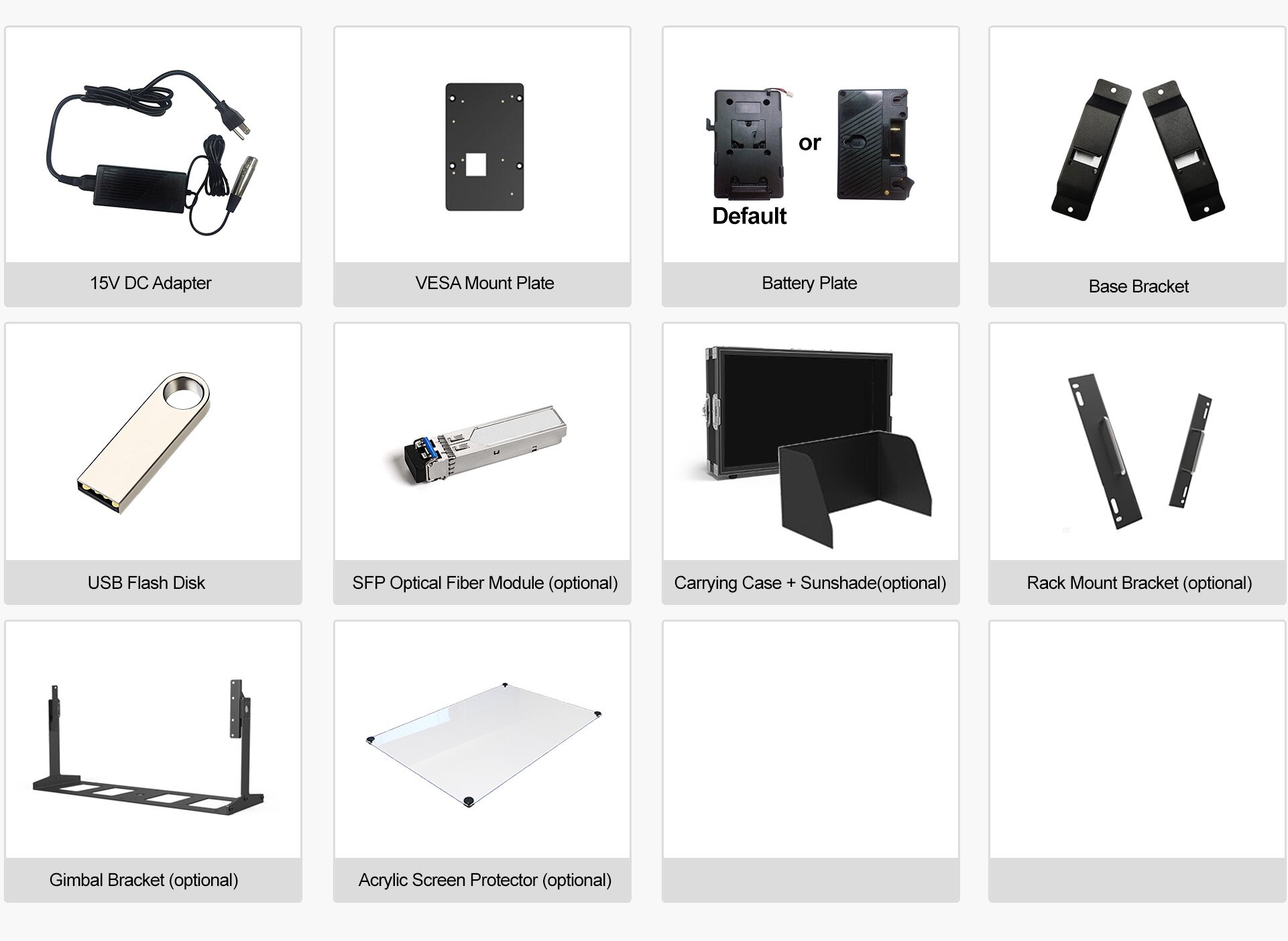

Accessories
Product Tags

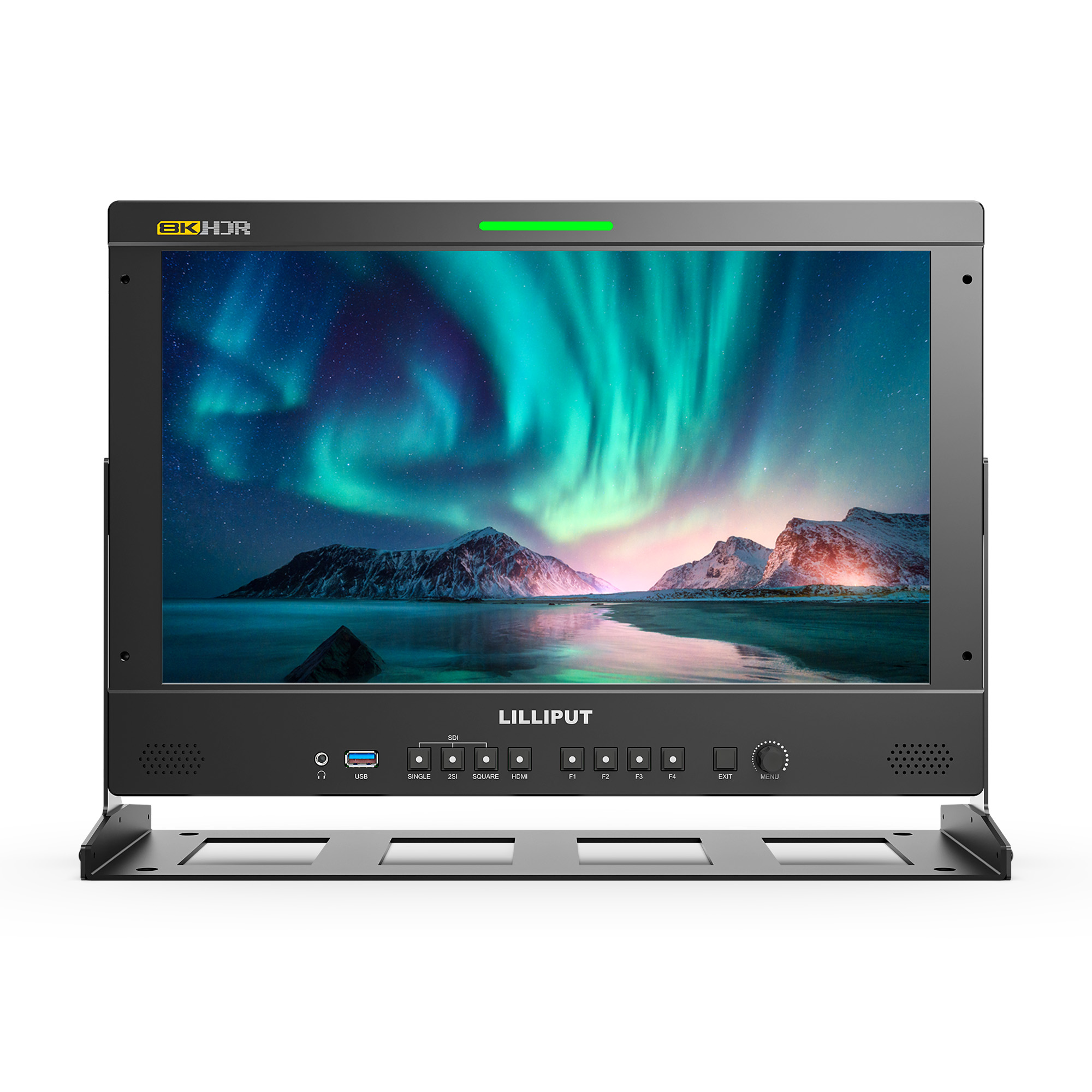

| DISPLAY |
Panel |
15.6″ |
| Physical Resolution |
3840*2160 |
| Aspect Ratio |
16:9 |
| Brightness |
600 cd/m² |
| Contrast |
1700：1 |
| Viewing Angle |
170°/170°（H/V) |
| HDR |
ST2084 300/1000/10000/HLG |
| Supported Log Formats |
SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… |
| Look up Table(LUT)support |
3D LUT (.cube format) |
| Technology |
Calibration to Rec.709 with optional calibration unit |

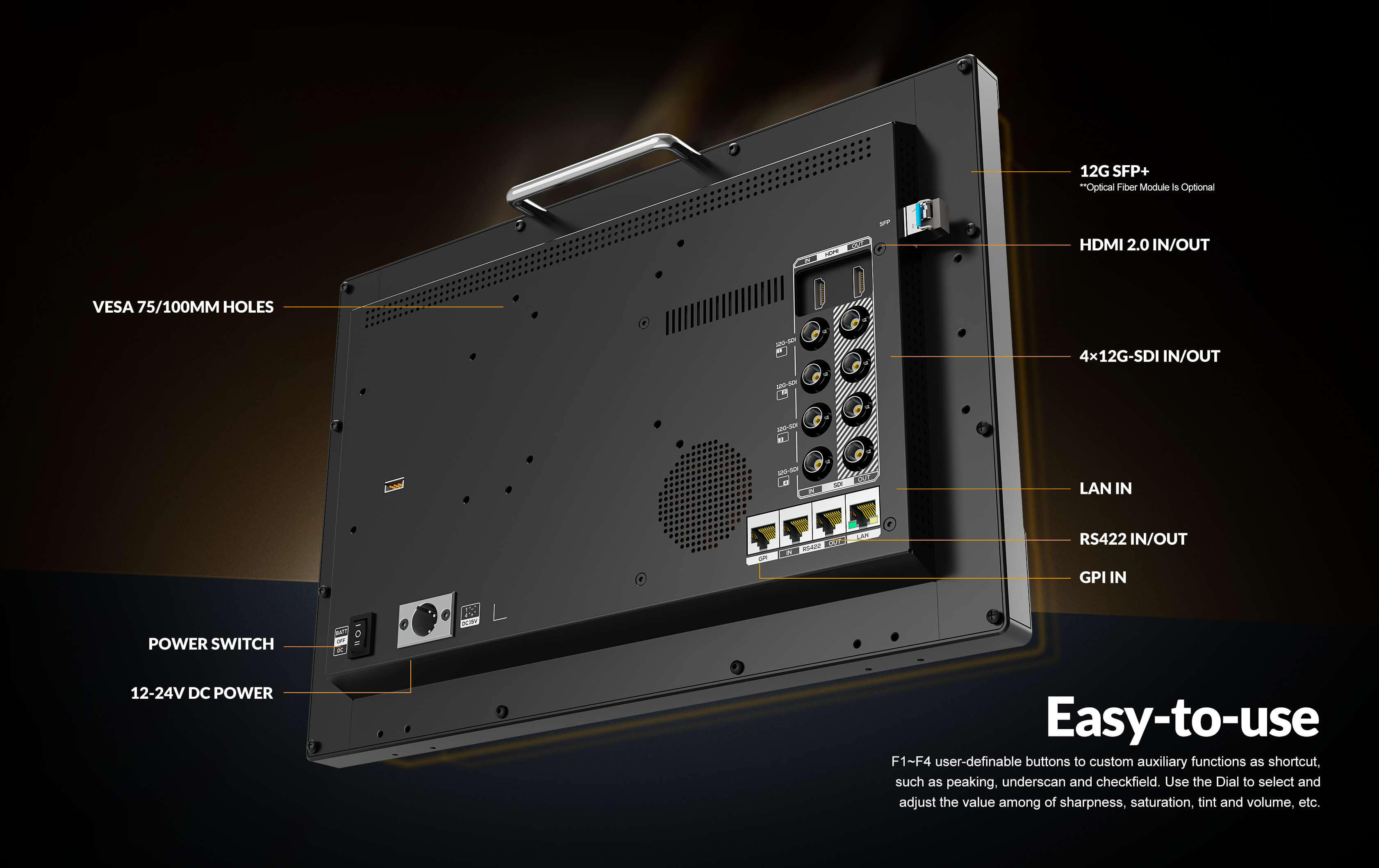

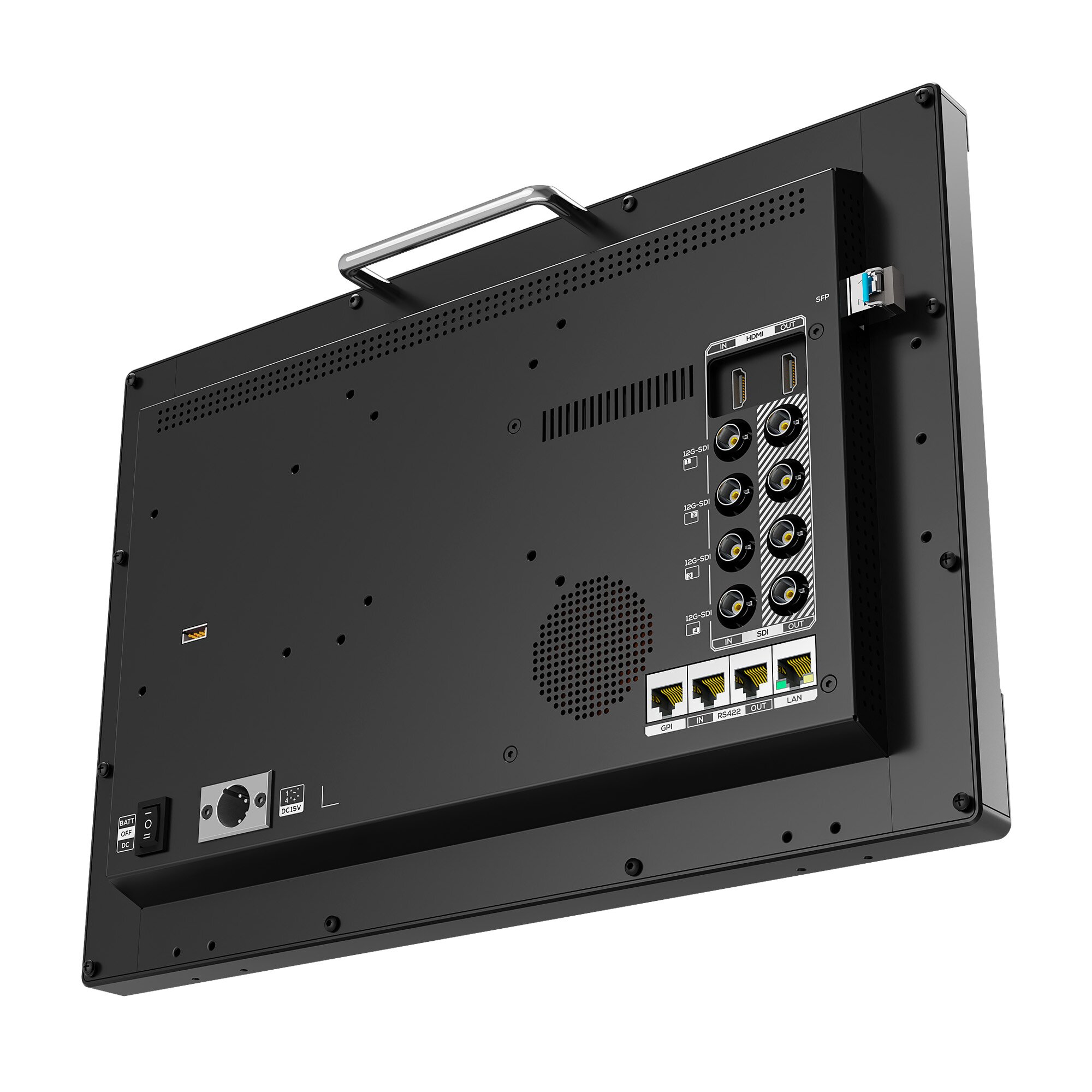

| VIDEO INPUT |
SDI |
4×12G (Supported 8K-SDI Formats Quad Link) |
| SFP |
1×12G SFP+(Fiber module for optional) |
| HDMI |
1×HDMI 2.0 |
| VIDEO LOOP OUTPUT |
SDI |
4×12G (Supported 8K-SDI Formats Quad Link) |
| HDMI |
1×HDMI 2.0 |
| SUPPORTED FORMATS |
SDI |
4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| SFP |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| HDMI |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| AUDIO IN/OUT (48kHz PCM AUDIO) |
SDI |
16ch 48kHz 24-bit |
| HDMI |
8ch 24-bit |
| Ear Jack |
3.5mm |
| Built-in Speakers |
2 |
| REMOTE CONTROL |
RS422 |
In/out |
| GPI |
1 |
| LAN |
1 |
| POWER |
Input Voltage |
DC 12-24V |
| Power Consumption |
≤37W (15V) |
| Compatible Batteries |
V-Lock or Anton Bauer Mount |
| Input Voltage(battery) |
14.8V nominal |
| ENVIRONMENT |
Operating Temperature |
0℃~50℃ |
| Storage Temperature |
-20℃~60℃ |
| OTHER |
Dimension(LWD) |
393mm × 267mm × 41.4mm |
| Weight |
2.9kg |
