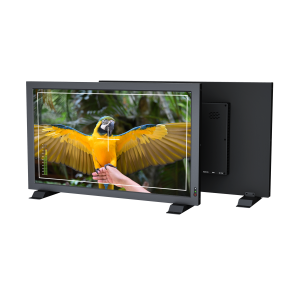

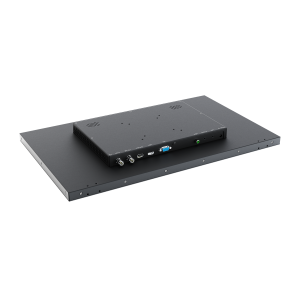

21.5 inch SDI/HDMI professional video monitor

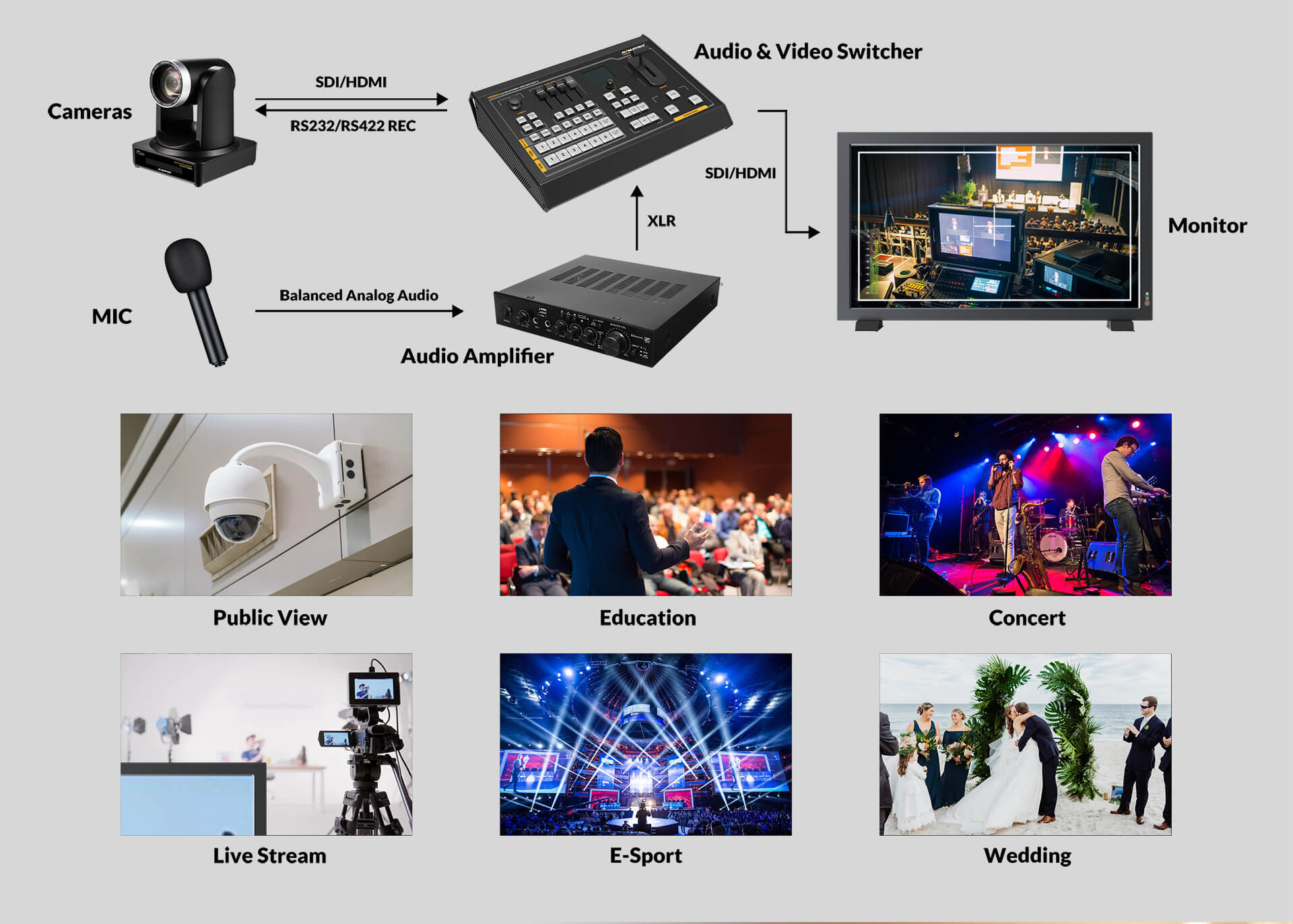

High brightness Monitor with FHD Resolution, 101% Rec.709 color space. Application for live events, conference presentation, public view monitoring, etc.

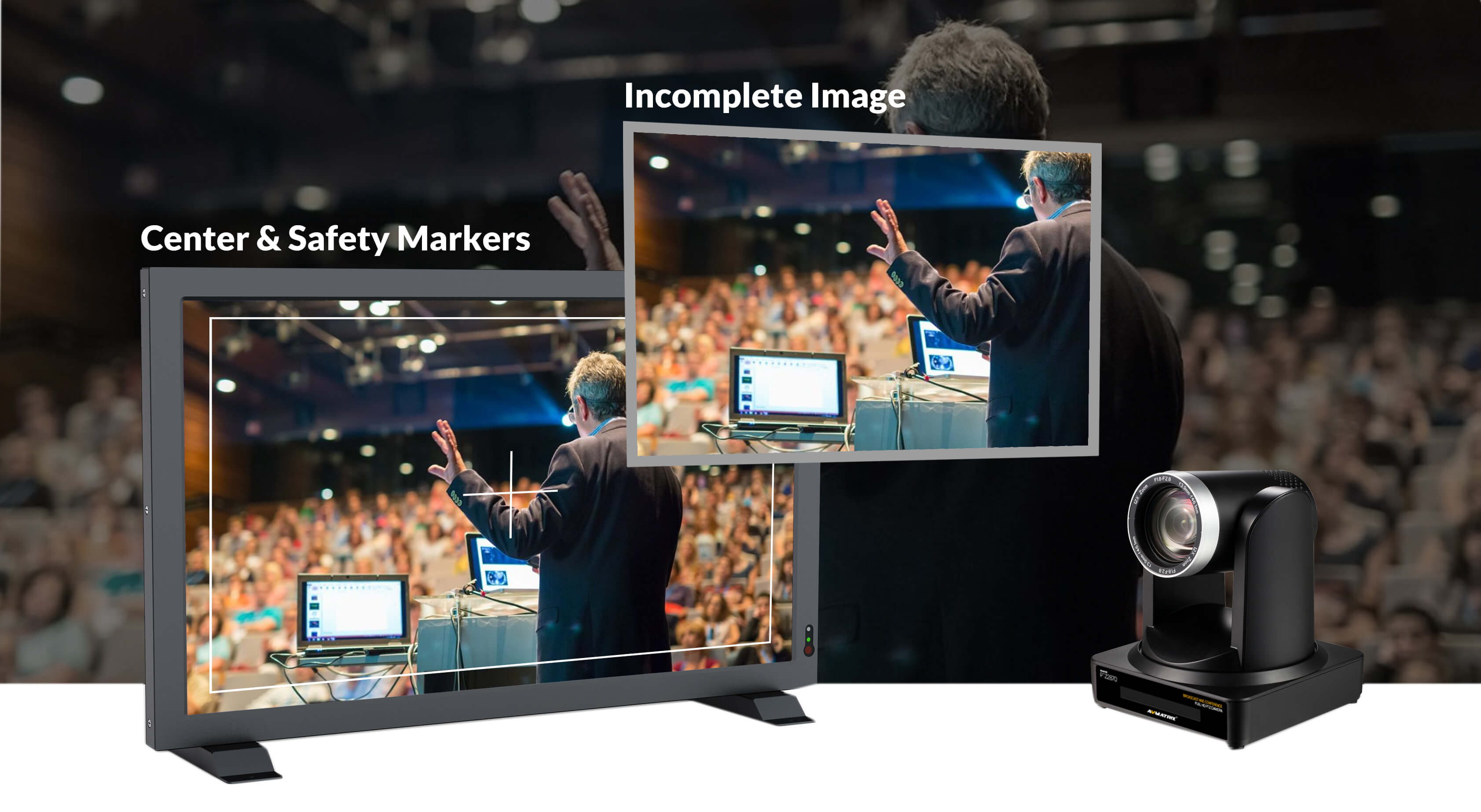

Layout and Composition
The image output from the camera to TV live is often slashed. This monitor comes with Center Markers and Safety Markers, allowing to adjust the best angle of cameras in real time to show the most important images in center of shot.

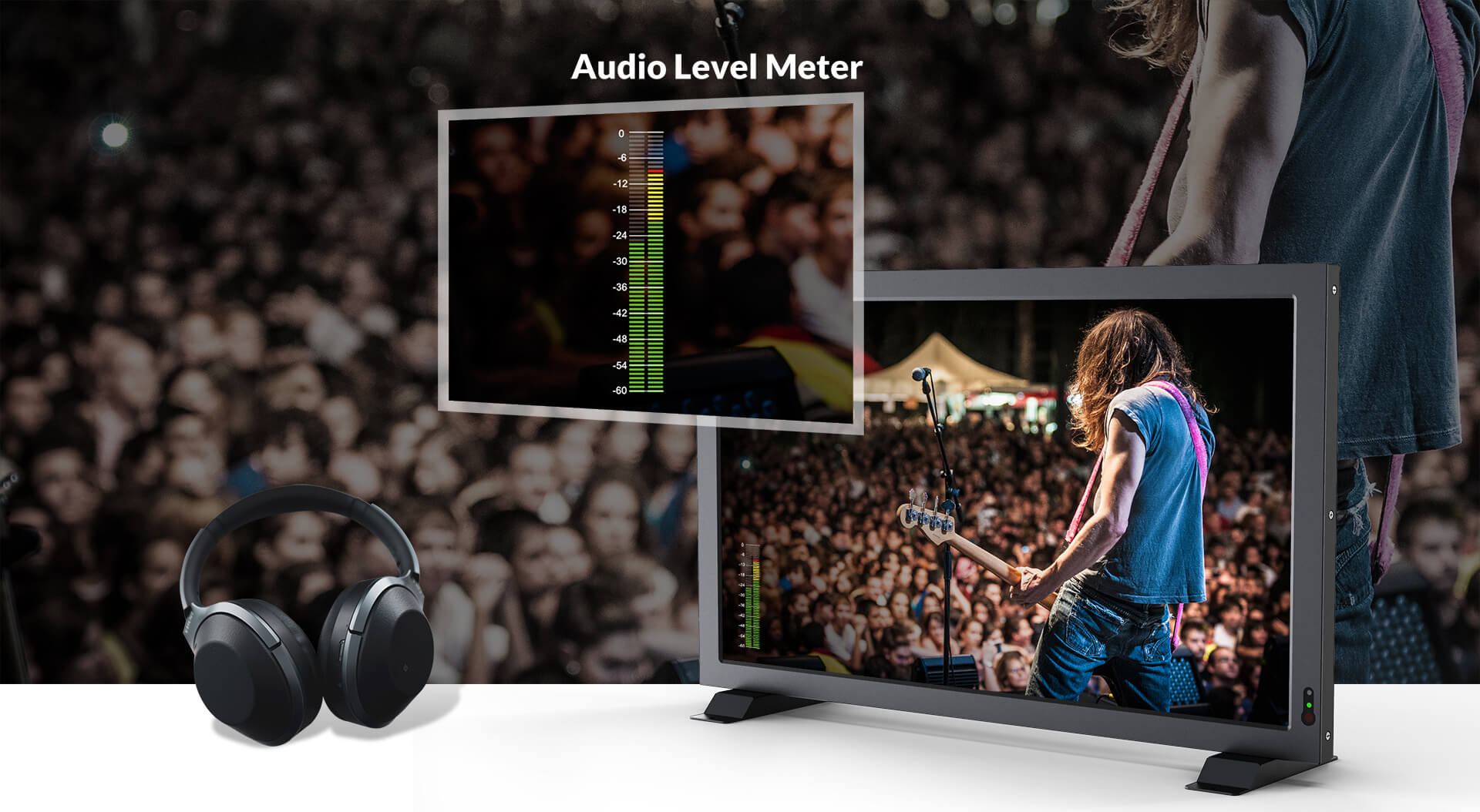

Audio Level Monitoring
With Audio Level Meter turned on, it is used to monitor current audio output and avoid being indifferent after an audio interruption as well as keep the sound within a reasonable DB range.
| Model | PVM210S | PVM210 | |
| DISPLAY | Panel | 21.5 ” LCD | 21.5 ” LCD |
| Physical Resolution | 1920*1080 | 1920*1080 | |
| Aspect Ratio | 16:9 | 16:9 | |
| Brightness | 1000 cd/m² | 1000 cd/m² | |
| Contrast | 1500：1 | 1500：1 | |
| Viewing Angle | 170°/170°(H/V) | 170°/170°(H/V) | |
| Color Space | 101% Rec.709 | 101% Rec.709 | |
| HDR Supported | HLG;ST2084 300/1000/10000 | HLG;ST2084 300/1000/10000 | |

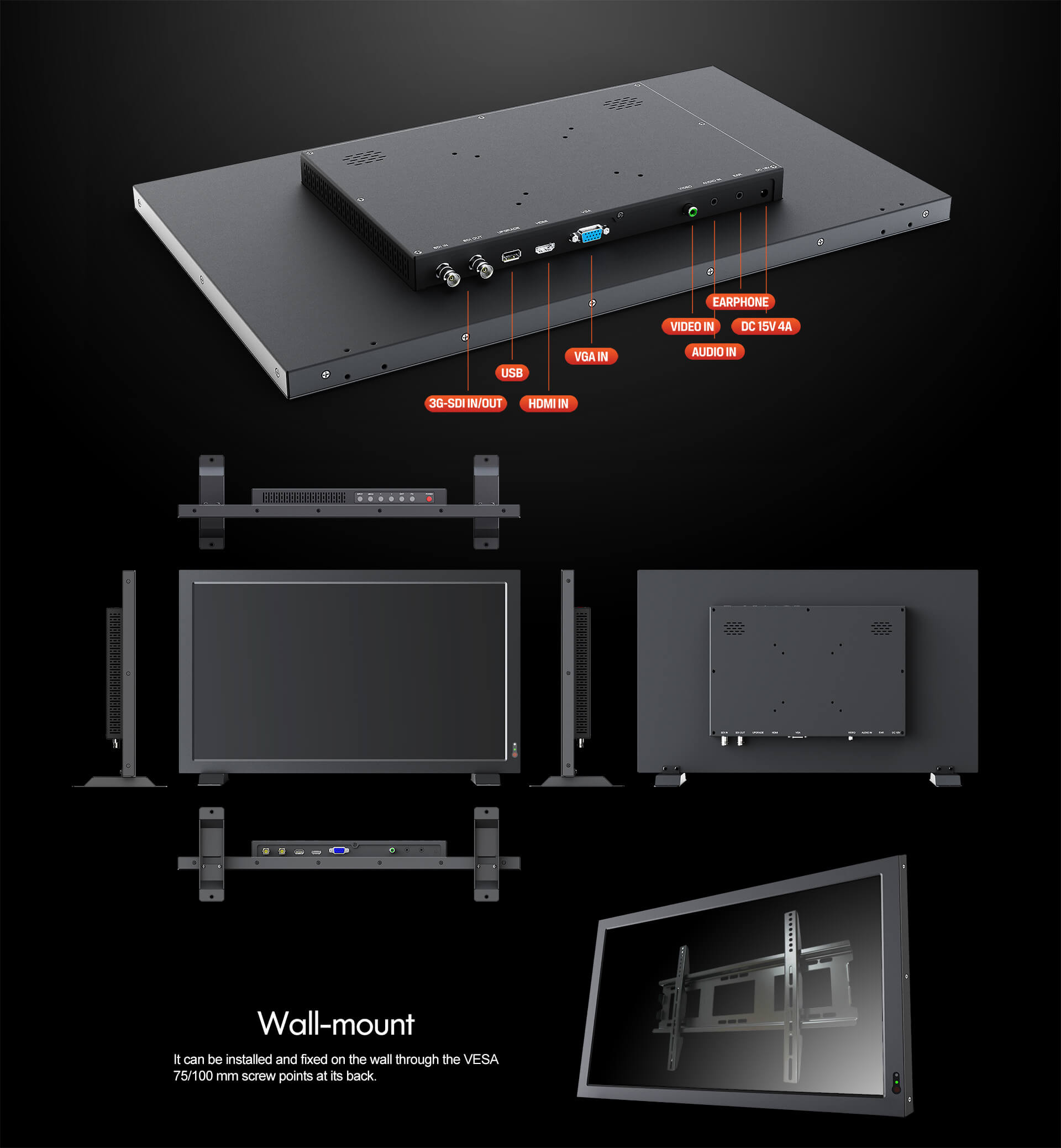

| INPUT | SDI | 1 x 3G SDI | - |
| HDMI | 1 x HDMI 1.4b | 1 x HDMI 1.4b | |
| VGA | 1 | 1 | |
| AV | 1 | 1 | |
| OUTPUT | SDI | 1 x 3G-SDI | - |
| SUPPORTED FORMATS | SDI | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | - |
| HDMI | 2160p 24/25/30, 1080p 24/25/30/50 /60, 1080i 50/60, 720p 50/60… | 2160p 24/25/30, 1080p 24/25/30/50 /60, 1080i 50/60, 720p 50/60… | |
| AUDIO IN/OUT | Speaker | 2 | 2 |
| SDI | 16ch 48kHz 24-bit | - | |
| HDMI | 8ch 24-bit | 8ch 24-bit | |
| Ear Jack | 3.5mm-2ch 48kHz 24-bit | 3.5mm-2ch 48kHz 24-bit | |
| POWER | Input Voltage | DC12-24V | DC12-24V |
| Power Consumption | ≤36W (15V) | ≤36W (15V) | |
| ENVIRONMENT | Operating Temperature | 0℃~50℃ | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ | -20℃~60℃ | |

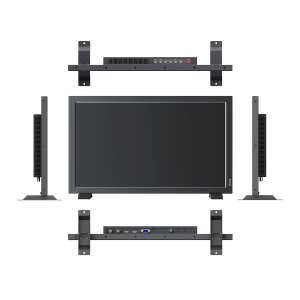

| Dimension | Dimension(LWD) | 524.8*313.3*19.8mm | 524.8*313.3*19.8mm |
| Weight | 4.8kg | 4.8kg |
