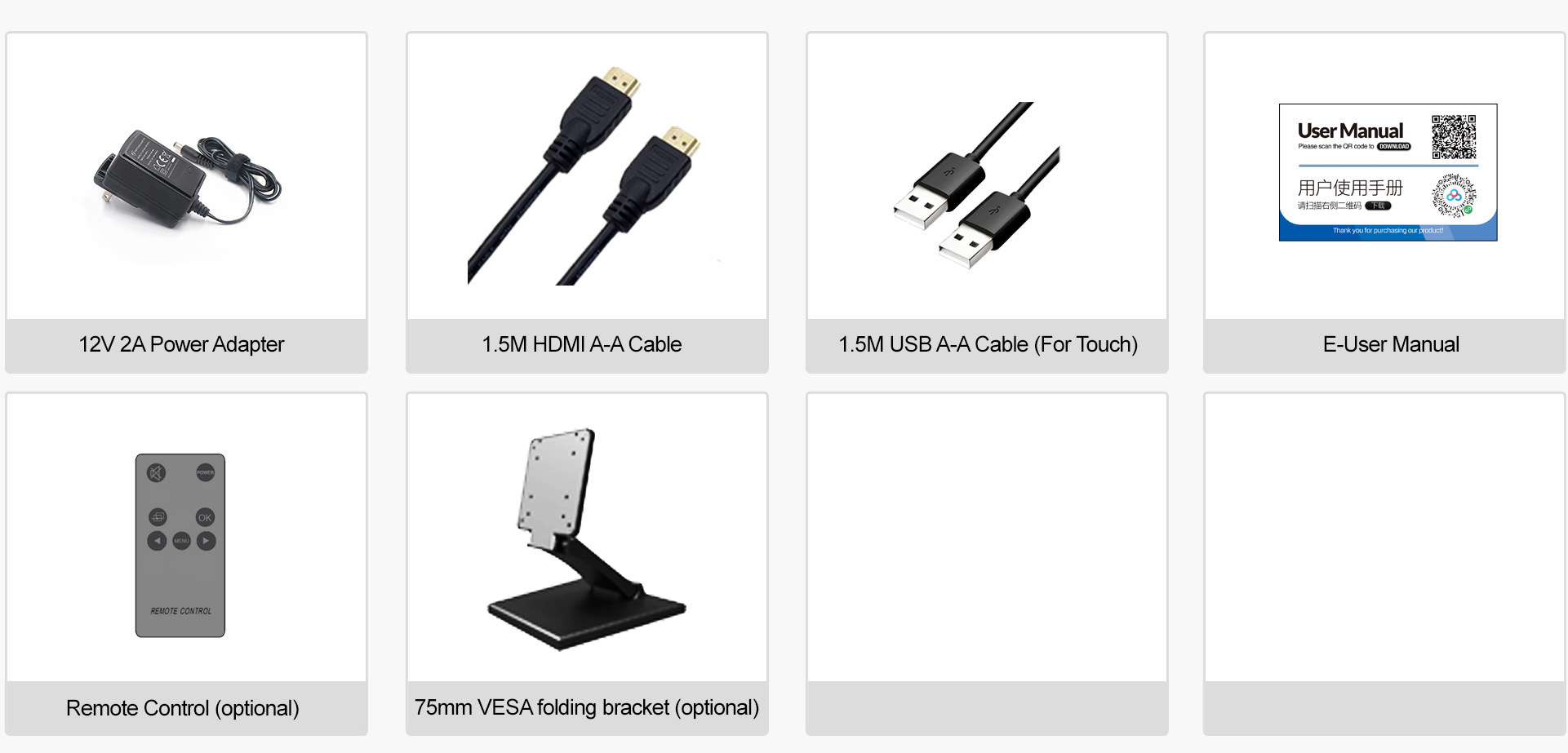

Accessories
Product Tags
DISPLAY |

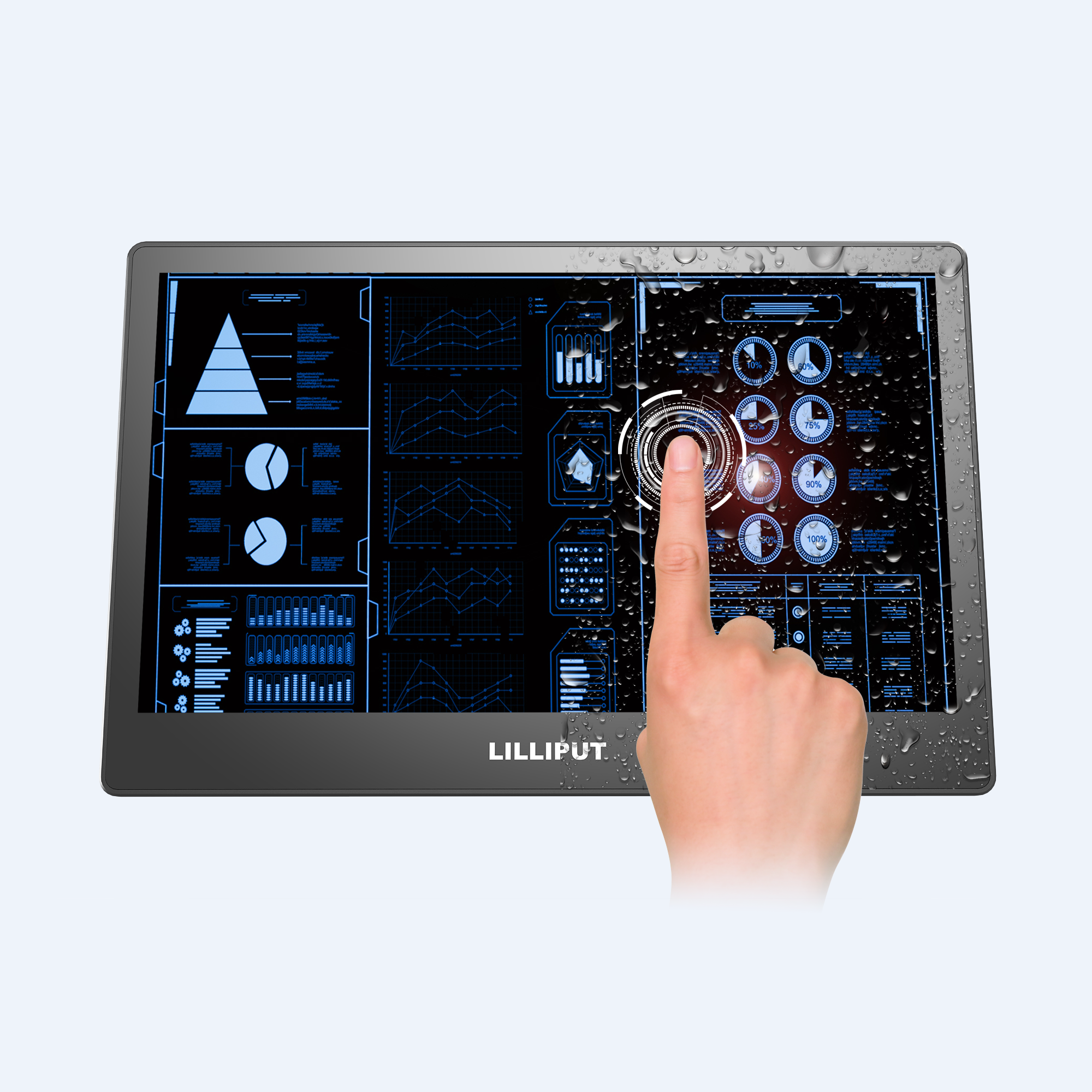

Touch Screen |
Capacitive touch |
Panel |

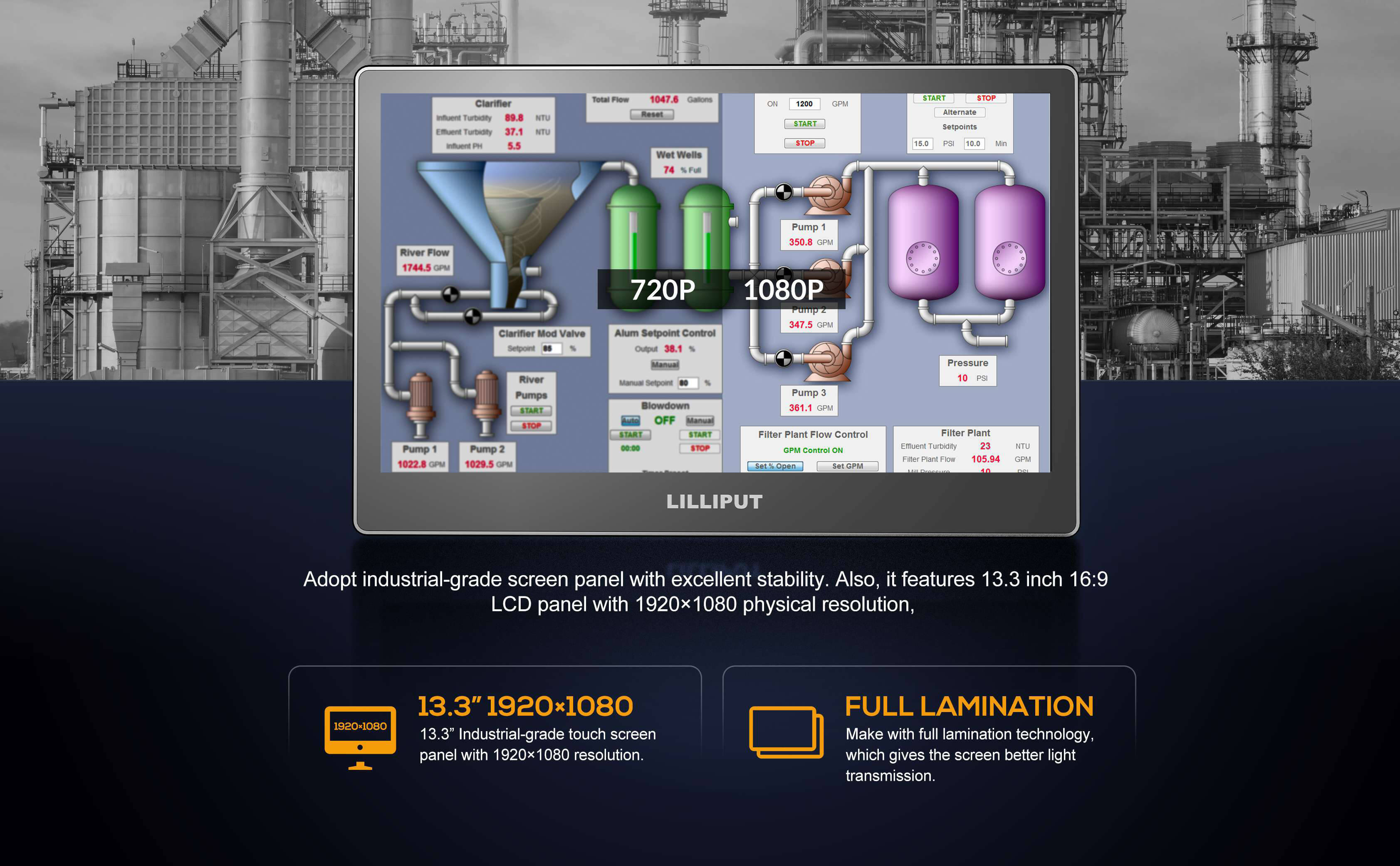

13.3” LCD |
Physical Resolution |
1920×1080 |
Aspect Ratio |
16:9 |
Brightness |
300 nits |
Contrast |
800:1 |
Viewing Angle |
170°/ 170°(H/V) |

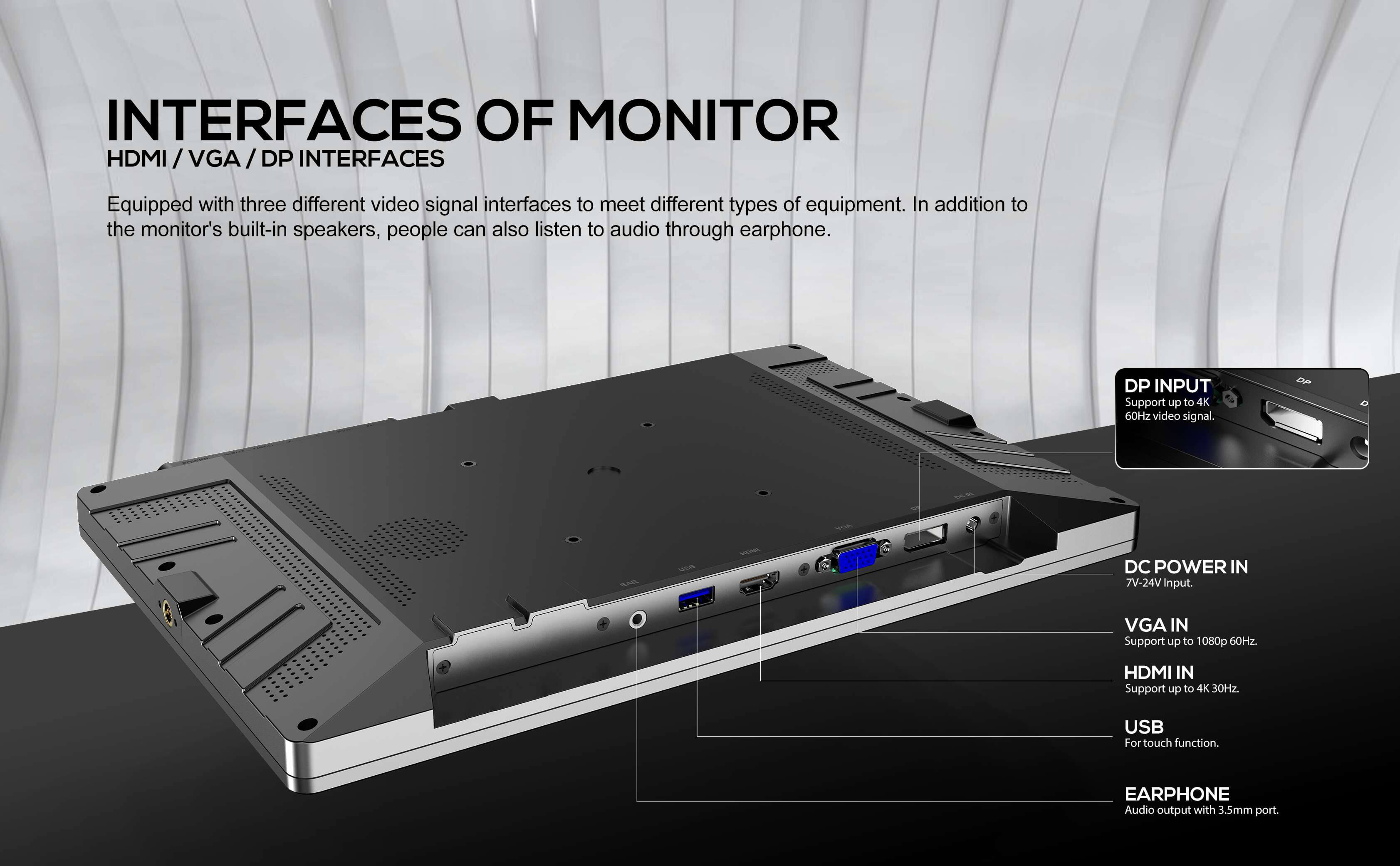

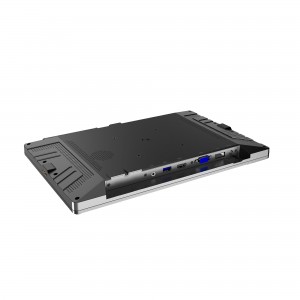

SIGNAL INPUT |
HDMI |
1 |
VGA |
1 |
DP |
1 |
USB |
1 (For Touch) |
SUPPORT FORMATS |
VGA |
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
HDMI |
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
DP |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
AUDIO IN/OUT |
Ear Jack |
3.5mm – 2ch 48kHz 24-bit |
Built-in Speakers |
2 |
POWER |
Input Voltage |
DC 7-24V |
Power Consumption |
≤12W (12V) |
ENVIRONMENT |
Operating Temperature |
0°C~50°C |
Storage Temperature |
-20°C~60°C |
OTHER |
Dimension(LWD) |
320mm × 208mm × 26.5mm |
Weight |
1.15kg |
