5.5 inch 2000nits 3G-SDI Touch Camera Control Monitor

Short Description:

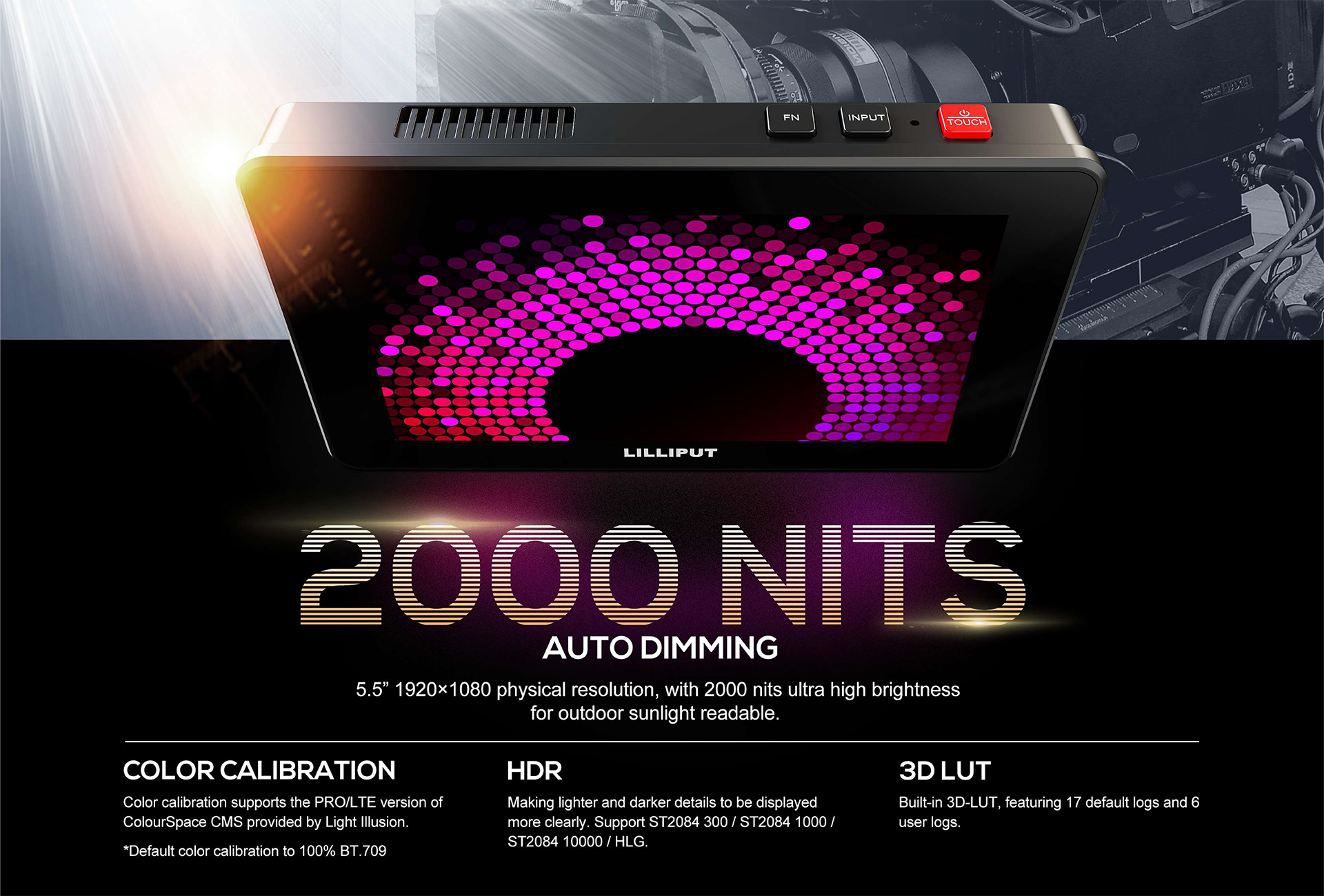

HT5S is a precision on-camera monitor came an amazing 2000 nits Ultra High Brightness and touch LCD screen which capable of controlling video camera menu on set. Specifically for photography and film maker, especially for outdoor video and film shooting.

Model: HT5S

Display: 5.5 inch, 1920×1080， 2000nit

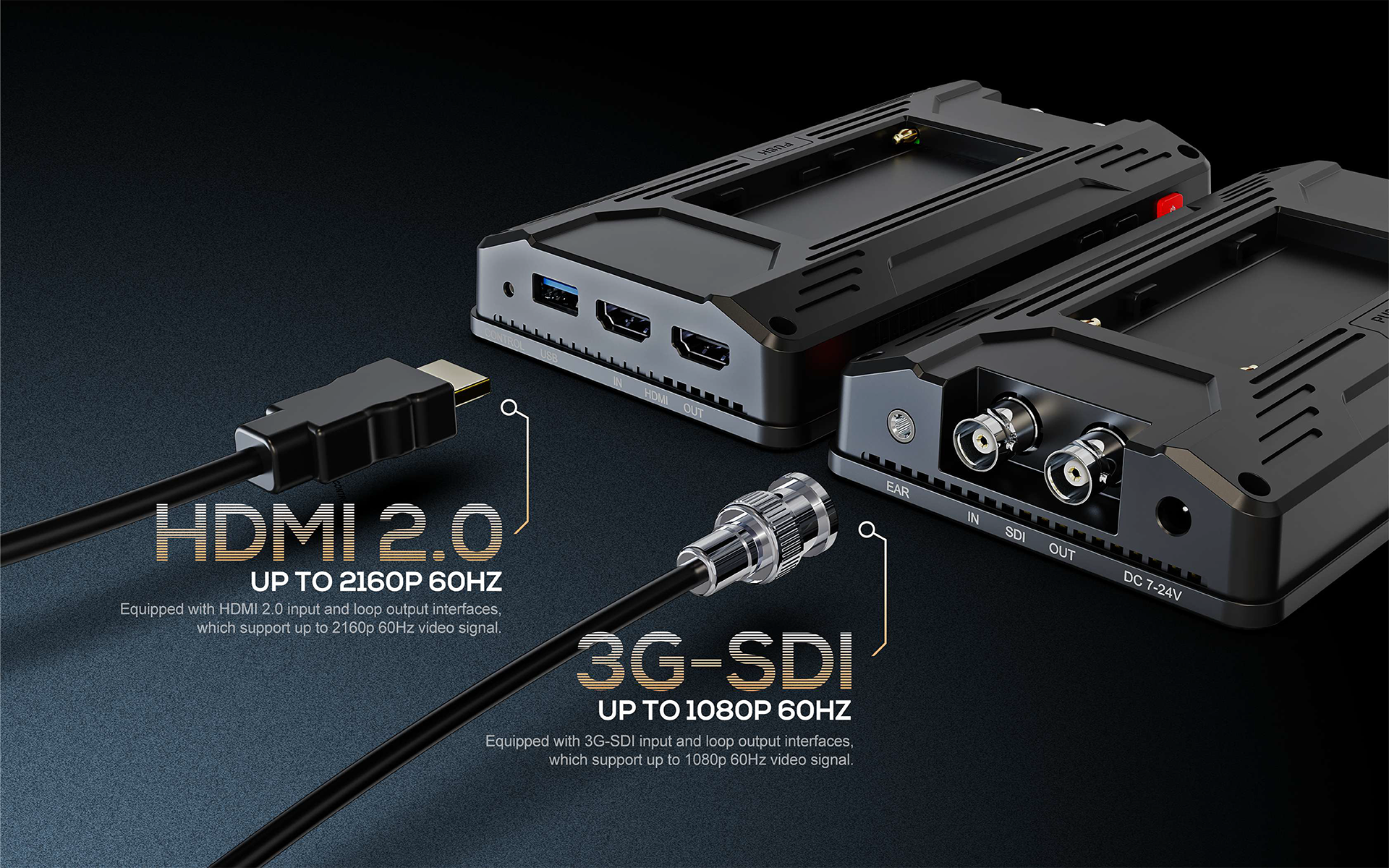

Input: 3G-SDI x 1 ； HDMI 2.0 x 1

Output: 3G-SDI x 1 ； HDMI 2.0 x 1

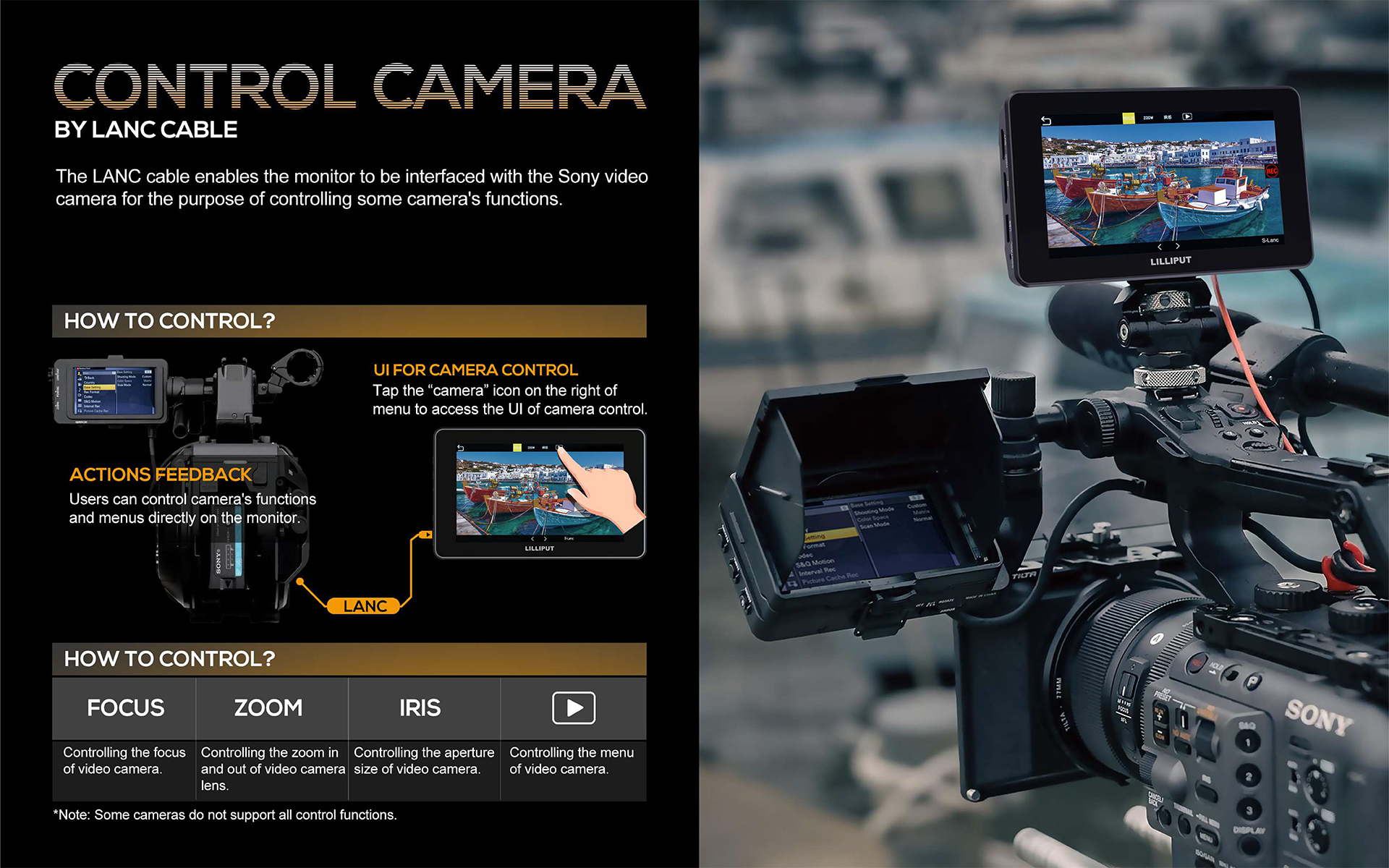

Feature: 2000nits , HDR 3D-LUT, Touch Screen,Dual Batteries,Camera Control

Send email to us Download as PDF User guide

Product Detail

Specifications

Accessories

Product Tags

5.5 inch high brightness on camera monitor

5.5 inch touch screen sdi camera control monitor

Previous: 17.3 inch HDMI2.0 1RU Pull-out rackmount monitor

Next: 10.1 inch 1500nits 3G-SDI Touch Camera Control Monitor

DISPLAY	Panel	5.5” LCD
	Physical Resolution	1920×1080
	Aspect Ratio	16:9
	Brightness	2000 nit
	Contrast	1000:1
	Viewing Angle	160°/ 160°(H/V)
	Color Space	100% BT.709
	HDR Supported	HLG; ST2084 300/1000/10000
SIGNAL INPUT	SDI	1×3G-SDI
SIGNAL INPUT	HDMI	1×HDMI 2.0
SIGNAL LOOP OUTPUT	SDI	1×3G-SDI
SIGNAL LOOP OUTPUT	HDMI	1×HDMI 2.0
SUPPORT FORMATS	SDI	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
SUPPORT FORMATS	HDMI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT	HDMI	8ch 24-bit
	Ear Jack	3.5mm – 2ch 48kHz 24-bit
	Built-in Speakers	1
POWER	Input Voltage	DC 7-24V
POWER	Power Consumption	≤14W (15V)
ENVIRONMENT	Operating Temperature	0°C~50°C
ENVIRONMENT	Storage Temperature	-20°C~60°C
OTHER	Dimension(LWD)	154.8mm × 93.8mm × 26.5mm
OTHER	Weight	310g
