7 inch Wireless AV Monitor

Short Description:

Specific Monitor by LILLIPUT for Flying Camera System. Application for Aerial & Outdoor Photography. Strongly recommend for aerial enthusiast & professional photographer.


  • Model: 329/DW
  • Physical Resolution: 800×480
  • Brightness: 400cd/㎡
  • Input: AV ,Antenna Port
  • Output: AV
  • Product Detail

    Specifications

    Accessories

    Specific Monitor by LILLIPUT for Flying Camera System. Application for Aerial & Outdoor Photography. Strongly recommend for aerial enthusiast & professional photographer.

    329/DW includes dual 5.8Ghz receivers, which cover 4 bands and total 32 channels, realizing auto antenna switching to get best signal.
    329/W includes single 5.8Ghz receiver, which cover 4 bands and total 32 channels.

    Features:
    Multiple power support, makes outdoor photography more convenient and practical.
    No “blue screen” problem when the signal gets weak, from 100 to 2000 meters wireless distance.
    Sunlight readable with ultra brightness & definition screen.

    5.8GHz Wireless AV Receiver

    • Built-in AV receiver support PAL / NTSC switch automatically, anti-black, anti-blue, anti-flash.
    • Simulation of composite video AV inputs, aerial camera connection.
    • 5.8Ghz frequency channel.
    • Optional high capacity rechargeable Li-ion battery, make power cables free.
    • Small, light weight, durable.

    Wireless Receiver Channel (Mhz)

    4




  • Previous:
  • Next:

  • Display
    Size 7″ LED backlit
    Resolution 800×480
    Brightness 400cd/m²
    Aspect Ratio 16:9
    Contrast 500:1
    Viewing Angle 140°/120°(H/V)
    Input
    AV  1
    Antenna Port  2
    Output
    AV  1
    Audio
    Speaker  1(bulit-in)
    Power
    Current  450mA
    Input Voltage  DC 7-30V (XLR)
    Battery Plate  V-mount /Anton Bauer Mount /F970 / QM91D / DU21 / LP-E6
    Power Consumption  ≤6W
    Environment
    Operating Temperature  -20℃ ~ 60℃
    Storage Temperature  -30℃ ~ 70℃
    Dimension
    Dimension(LWD)  188×127.8x32mm
    Weight  415g

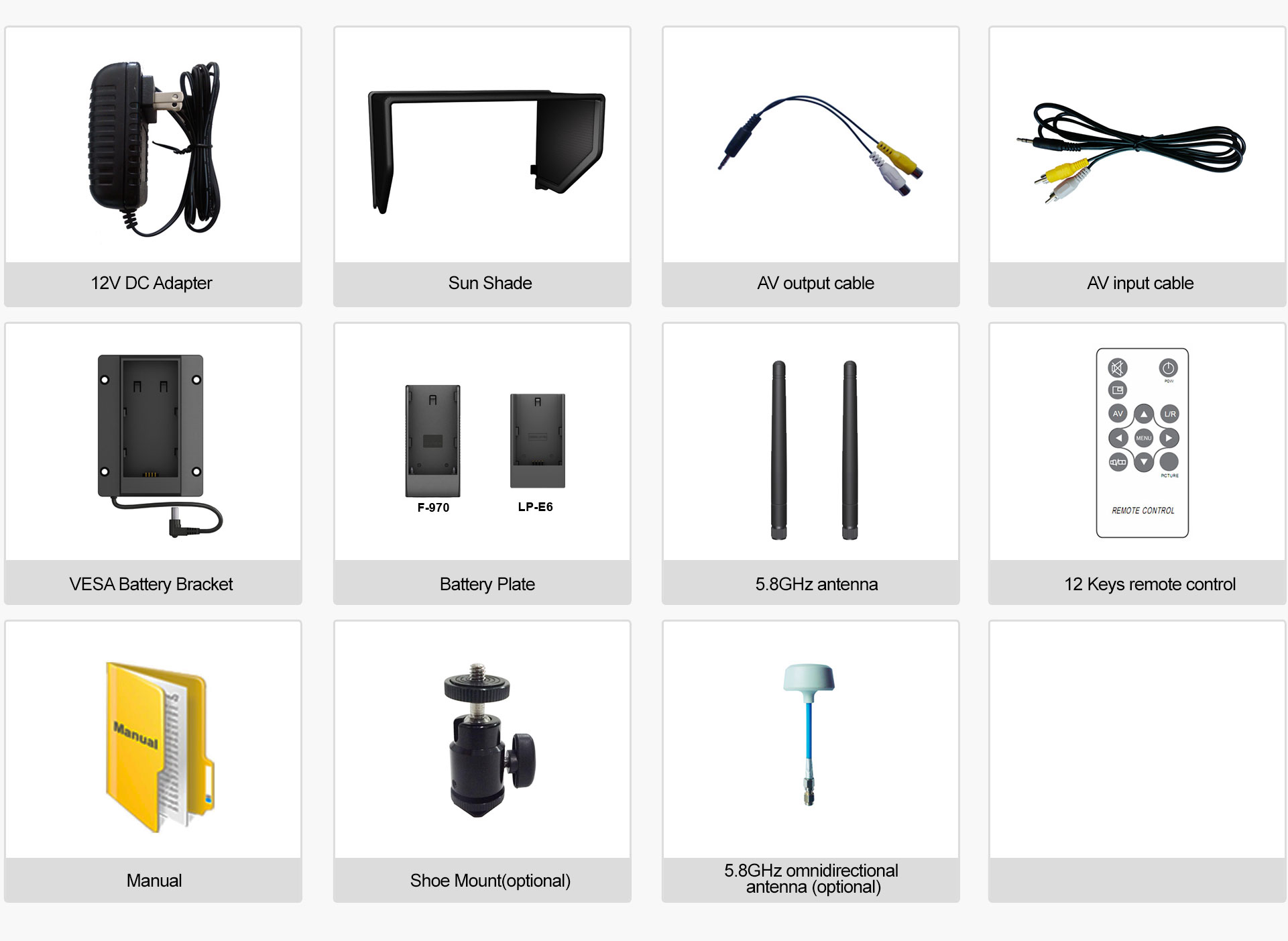

    329DW-accessories
