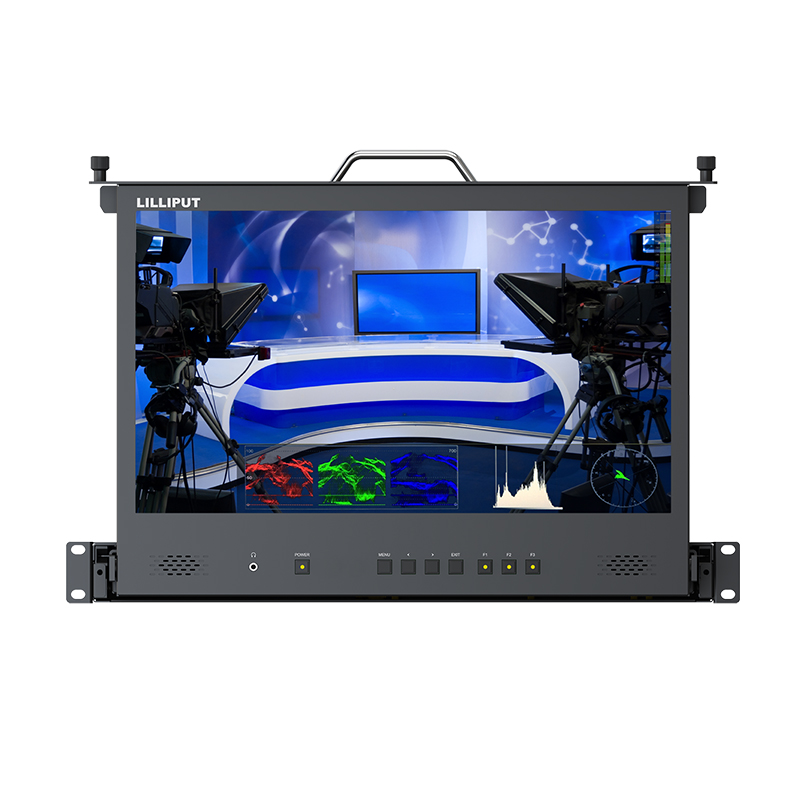

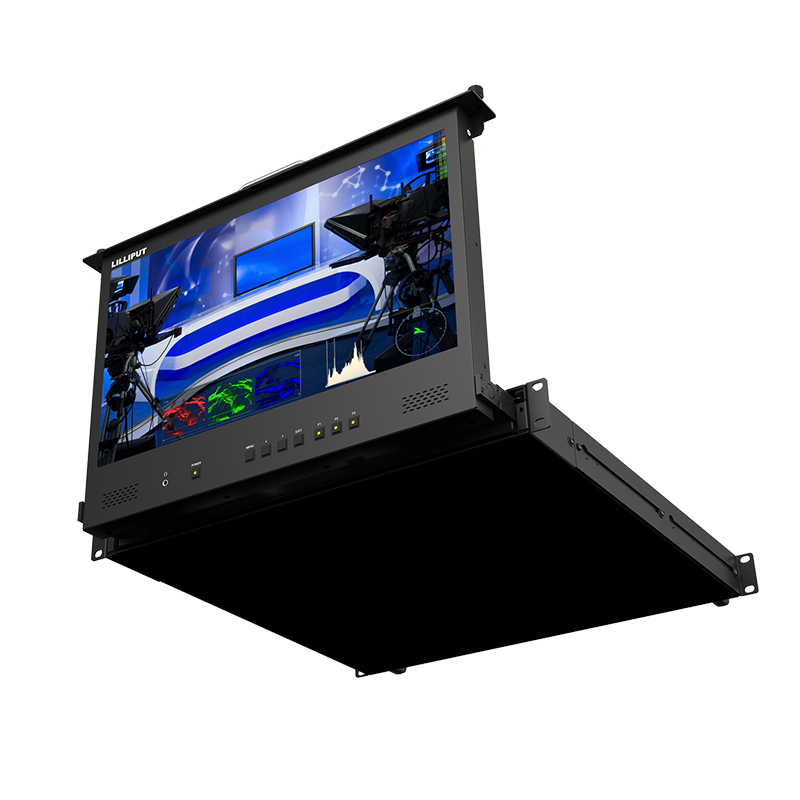

17.3 inch HDMI2.0 1RU Pull-out rackmount monitor

Short Description:

As a 1RU pull-out rackmount monitor, features 17.3″ 1920×1080 FullHD IPS screen with fine picture quality and good color reduction. It’s interfaces support HDMI2.0 signals inputs and loop outputs;For the advanced camera auxiliary functions, such like waveform, vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.


  • Model: RM-1731
  • Physical resolution: 1920x1080
  • Interface: HDMI2.0, LAN
  • Feature: 1920x1080, HDMI2.0, Remote Control, HDR/3D-LUT
  • Product Detail

    Specifications

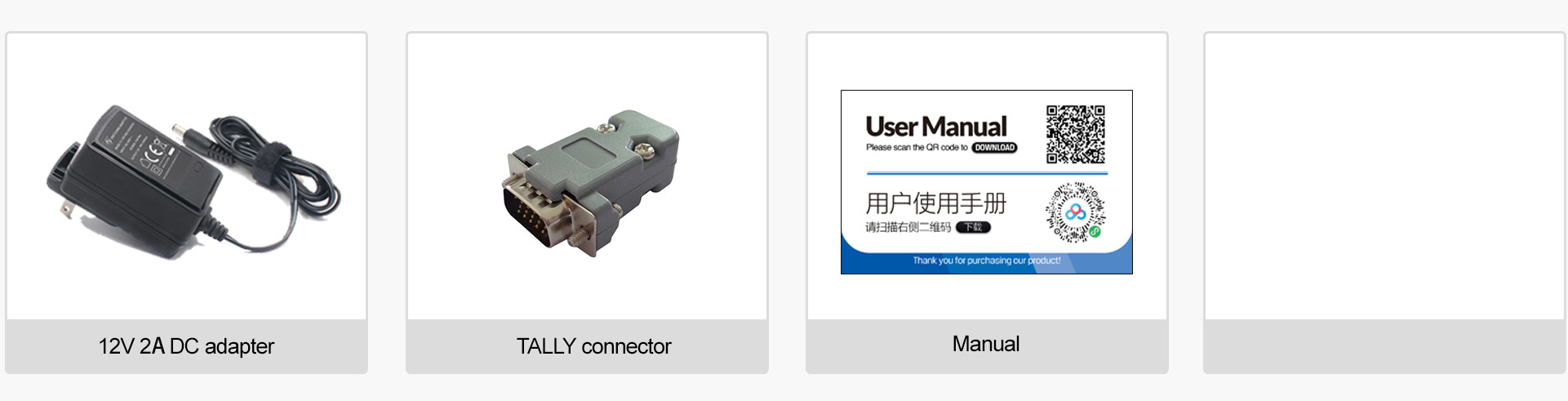

    Accessories

    Rack mount monitor
    Rackmount monitors
    Rackmount monitors
    1RU Rackmount monitors
    1RU Rack mount monitors
    Rackmount monitors
    Rack mount monitors

  • Previous:
  • Next:

  • Display
    Size 17.3”
    Resolution 1920×1080
    Brightness 300cd/m²
    Aspect ratio 16:9
    Contrast 800:1
    Viewing Angle 170°/170°(H/V)
    Video Input
    HDMI 1×HDMI 2.0
    LAN 1
    Video Loop Output
    HDMI 1×HDMI 2.0
    Supported In / Out Formats
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60
    Audio In/Out
    HDMI 8ch 24-bit
    Ear Jack 3.5mm – 2ch  48kHz 24-bit
    Built-in Speakers 2
    Power
    Operating power ≤14W(12V)
    DC In DC 10-24V
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 482.5×44×507.5mm
    Weight 8.9kg
